2.2.7.8 - STORE button
The STORE button has two functions:
• Storage of panel operational settings
• Storage of display configuration (associated with buttons
F1, F2, F3 and F4).
2.2.7.8.1 - Operational settings (Scene file)
storage
Four operational memories (Scene files) are available.

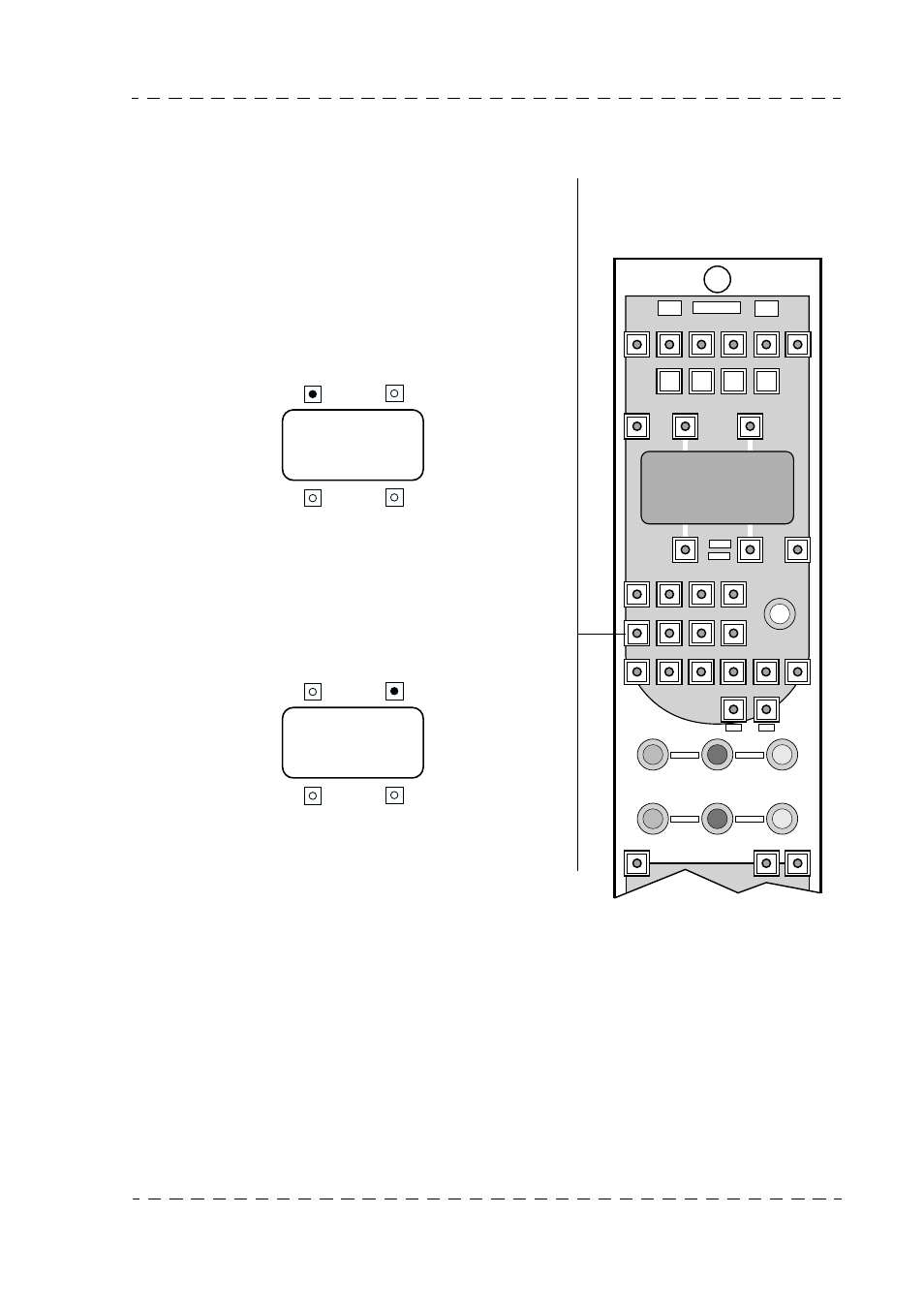

When a button is pressed, the following page is displayed:
• When lit, the indicator light indicates the current Scene
file.
• To store the current operational settings simultaneously
press STORE and one of function buttons 1, 2, 3, 4
(depending on the memory number to be assigned to these
settings). The operated button light lights and the indication
STORED appears.
All the exploitations adjustments are stored in each
Scene file (except for FINE IRIS ON/OFF, DFZ adjust-
ments and the IRIS joystick) .
! "
