146 Chapter 2 -OCP 42/OCP 50 Operating Instructions
Description of pushbuttons
B1500M24LA
September 2000
THOMSON OCP 42/OCP 50
User manual

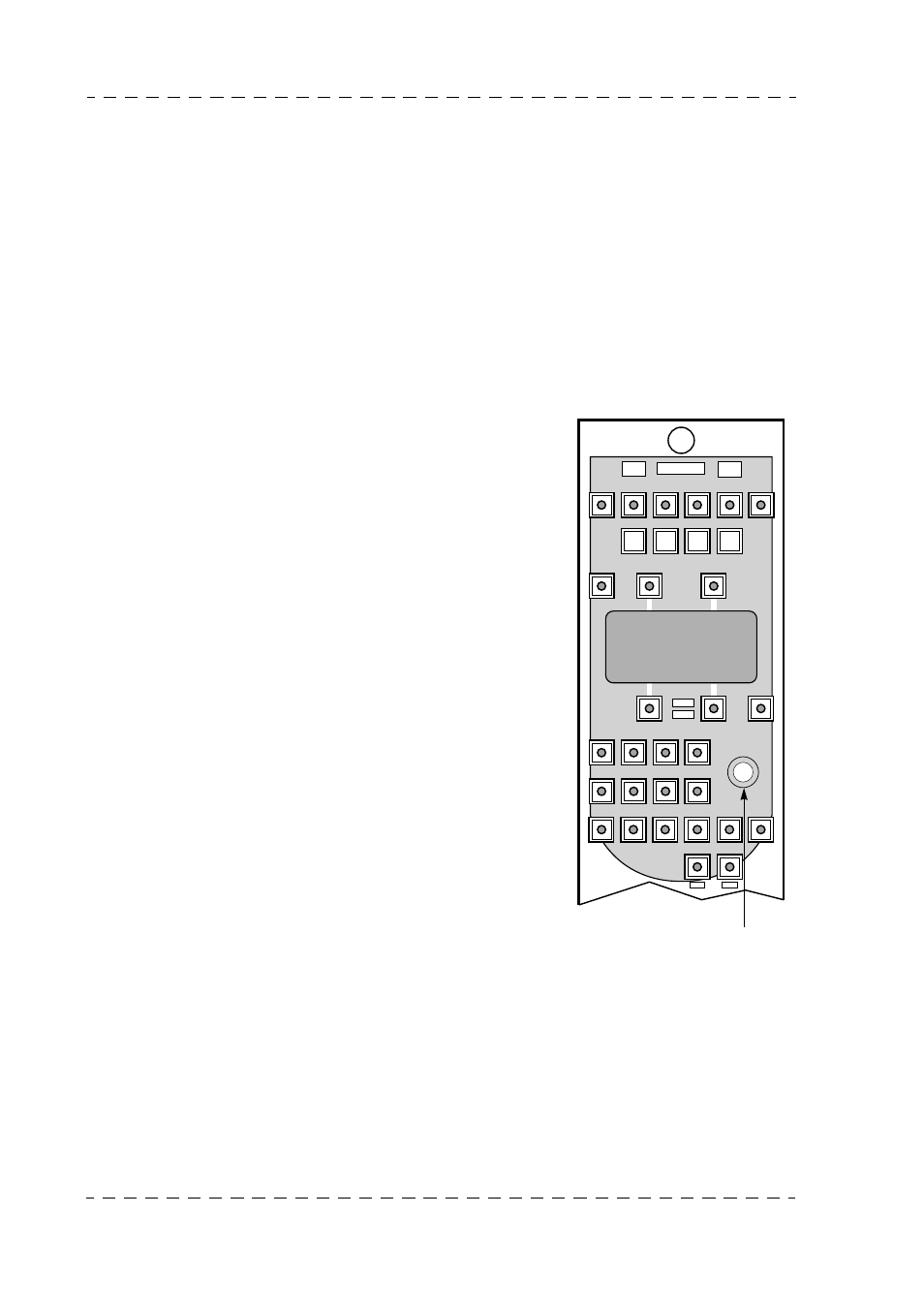

2.2.8 - RANGE buttons
The range buttons mentioned correspond to 4 buttons
located around the display.
2.2.8.1 - Presentation
These buttons are used to select a setting range.
• Selection of a range lights the corresponding range light.
This light remains lit as long a the range is displayed.
• Return to the reset page is obtained after a time defined in
the panel settings (refer to the INSTALLATION chapter
1.7.3 - Setting up the OCP paragraph) or by pressing the
EXIT button.
• Pressing of a range button while its light is lit causes
permanent display of this range. The range is cleared either
by:
- Pressing another range button.
- Pressing the EXIT button.
• Parameter modification (unless otherwise specified):
- Select the parameter range by pressing the
corresponding button (the range is displayed).
- Press the button located above or below the parameter
to be modified.
-If the parameter is a stepped parameter,
the button light remains off and the
parameter is modified directly.
- Press EXIT to display one of the rest pages.
LOCK
F1
EXIT
NEXT
GAMMA
DETAIL FILTERS
WHITE BAL
LIMIT
ACTIV CCU STATUS BARS SETTING CALL
F2 F3 F4
COLOUR
KNEE
PRESET
BLACK DFZ STORE
RECALL
GAIN
SHUTTER
BLACK BAL
LIMIT
CTRL
DIAG
ON AIR 1 ON
AIR 2
PRE
VIEW
SKIN MEMORY
ADJUST
