Chapter 2 - OCP 42/OCP 50 Operating Instructions 147
Description of pushbuttons
THOMSON OCP 42/OCP 50
User manual
B1500M24LA
September 2000

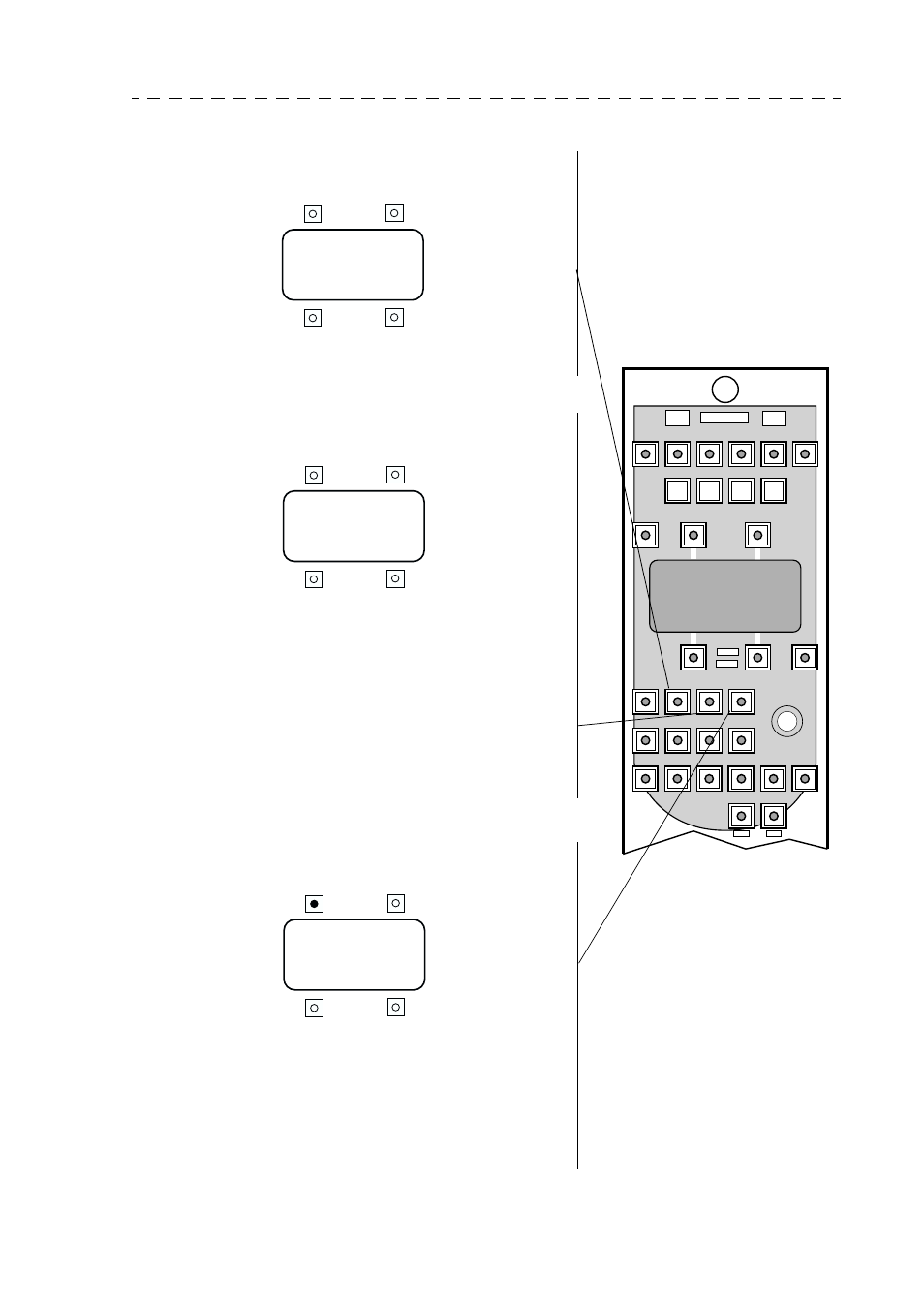

2.2.8.2 - GAIN button
Used to adjust the GAIN range settings.
Press the button to display the page below:
By pressing the GAIN UP or GAIN DOWN buttons, the
camera gain is increased or decreased.
2.2.8.3 - FILTERS button
Used to perform FILTER range adjustments. Press this
button to obtain the following page:
This page enables:
• N.D. UP - N.D DOWN: By pressing the corresponding
buttons, enables actuation of the filter wheel in either
direction. The position of the wheel and type of filter in
service are displayed.
• EFF. UP - EFF. DOWN: By pressing the corresponding
buttons, enables actuation of the filter wheel in either
direction. The position of the wheel and type of filter in
service are displayed.
2.2.8.4 - DETAIL button
Used to perform DETAIL range adjustments.
Press the button to display the following page:
This page is used to modify the following parameters:
• DTL LEVEL: Detail level setting.
• LEVEL DEP: Noise suppression on detail signal in the
dark parts of the picture.
• CORING: Detail signal noise reduction correct
adjustment can cause a blurred image.
GA I N U P
X X d B
GAI N DOWN
N . D U P E F F . U P
C L E AR C L E AR
⇒1 ⇒A
N . D DOWN E F F . DOWN
D T L L E V E L
X X
X X X X
L E V E L D E P COR I NG
LOCK
F1
EXIT
NEXT
GAMMA
DETAIL FILTERS
WHITE BAL
LIMIT
ACTIV CCU STATUS BARS SETTING CALL
F2 F3 F4
COLOUR
KNEE
PRESET
BLACK DFZ STORE
RECALL
GAIN
SHUTTER
BLACK BAL
LIMIT
CTRL
DIAG
ON AIR 1 ON
AIR 2
PRE
VIEW
SKIN MEMORY
