142 Chapter 2 -OCP 42/OCP 50 Operating Instructions
Description of pushbuttons
B1500M24LA
September 2000
THOMSON OCP 42/OCP 50
User manual

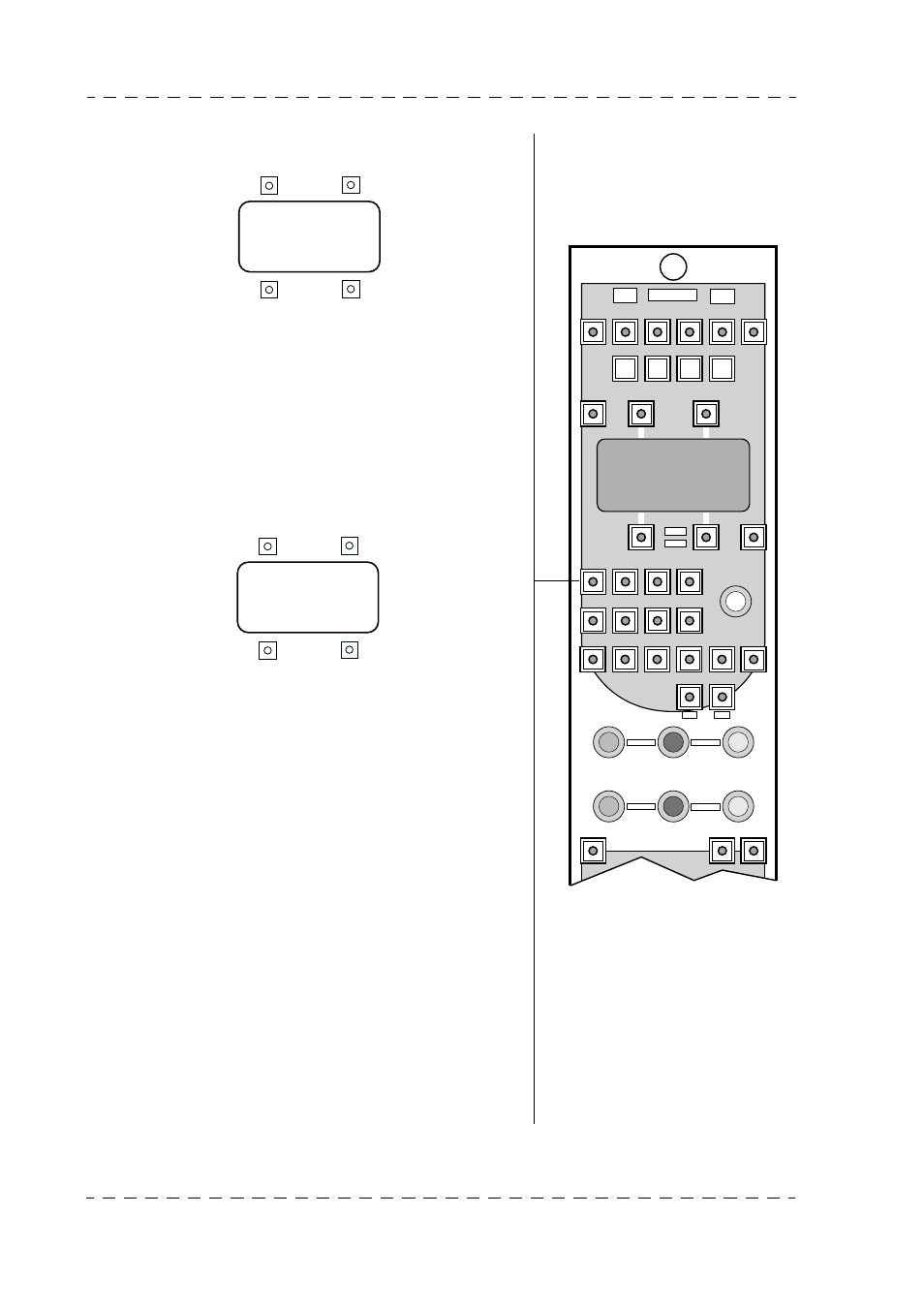

With the 2nd «PRESET» page displayed, pressing of
NEXT displays the 3rd «PRESET» page.
L'appui simultané sur les touches PRESET et :
• SKIN 1: SKIN 1 setting «Preset» to maintenance values.
• SKIN 2: SKIN 2 setting «Preset» to maintenance values.
• ERASE CARD: Erase the memory card datas. For
exemple, this commande is used for transform a CAMERA
CARD into a STUDIO CARD and vice versa. For the
memory card use description, refer to the paragraph 2.7 -
OCP 42/OCP 50 memory card & memory key.
With the 3rd «PRESET» page displayed, pressing of NEXT
displays the 4th «Preset» page.
This page informs the operator that there are other types of
PRESET (Direct access presets).
2. Direct access PRESET:
Simultaneous operation of the:
• PRESET and BARS: «Preset» of all operational settings.
• PRESET and WHITE BAL: Presets the PARTIAL R,
G, B GAIN LEVELS and white balance (3100°K).
• PRESET and BLACK BAL buttons, «Preset» of the R,
G, B PARTIAL BLACK levels.
• PRESET and CALL if necessary, extinguishes the
CALL lights on ALL the connected panels.
• PRESET and ACTIV forces the panel to the ACTIV
mode (multi-panel operation if this panel has a higher level
than the active panel).
• PRESET and ENABLE forces the IRIS MASTER
BLACK controls to the ENABLE mode (multi-panel
operation if this panel is of lesser priority than the panel on
the ENABLE mode).
S K I N 1 S K I N 2
ERAS E CARD
o t h e r p r e s e t
p r e s s k e y s :
PRE S E T +
BAR / WH T / B L K / CA L L
LOCK
F1
EXIT
NEXT
GAMMA
DETAIL FILTERS
WHITE BAL
AUTO IRIS
LIMIT
ACTIV CCU STATUS BARS SETTING CALL
F2 F3 F4
COLOUR
KNEE
PRESET
BLACK DFZ STORE
RECALL
GAIN
SHUTTER
BLACK BAL
ENABLE
GAIN
BLACK
LIMIT
CTRL
DIAG
ON AIR 1 ON
AIR 2
PRE
VIEW
FINE
ADJUST
SKIN MEMORY
ASSIGNED ASSIGNED
ASSIGNED ASSIGNED
