Description
B1657D902C
Septembre 2000
THOMSON TTV 1657D
Manuel utilisateur
1 - Doigt d’attache
Fixation de la courroie de portage.
2 - Queue d’arronde femelle
Fixation pour l'adaptateur arrière ou le magnétoscope connecté sur la caméra.

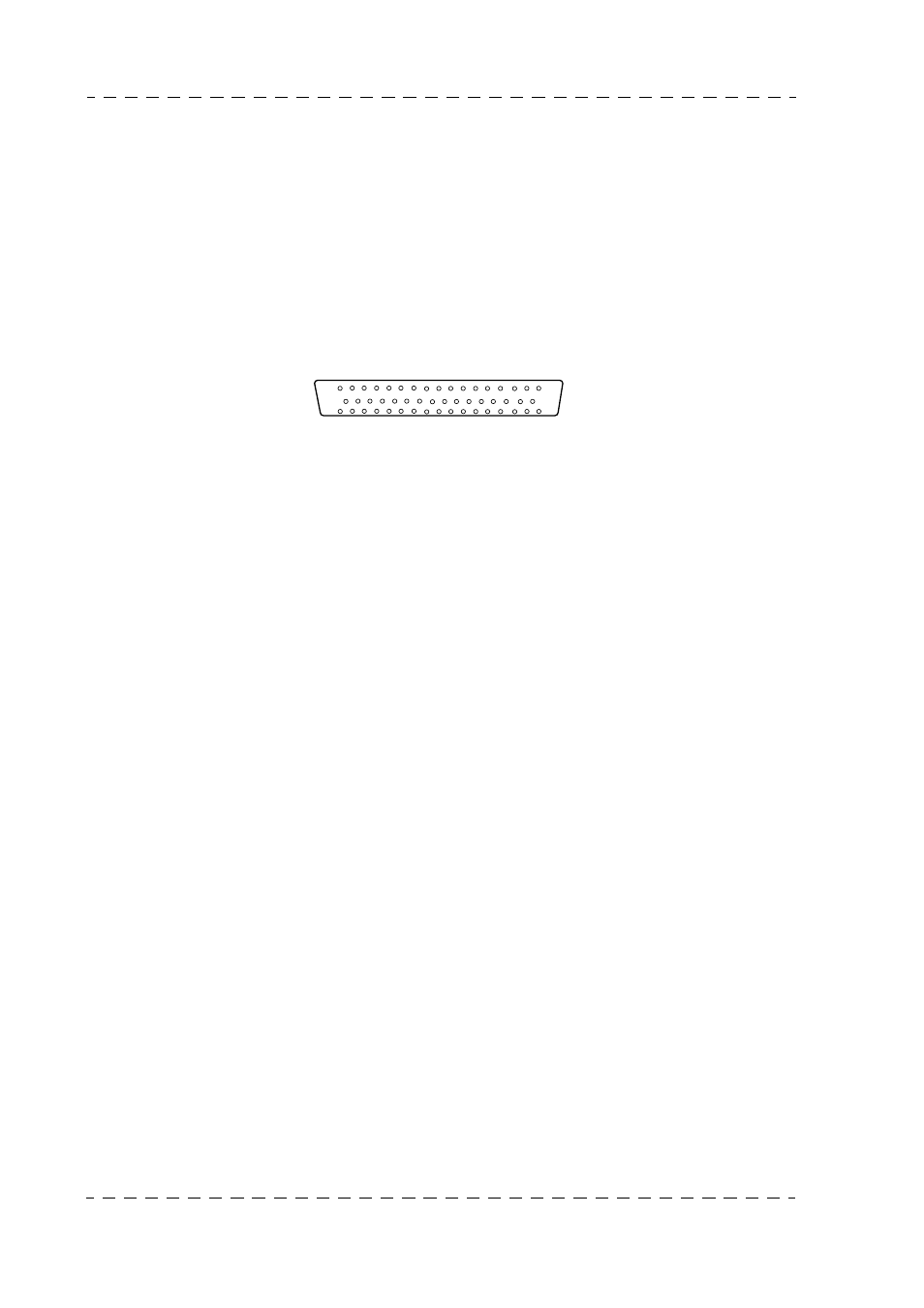

3 - Embase 50 Pts
Liaison entre l'adaptateur arrière ou le magnétoscope et la caméra.
4 - Système de fixation
Fixation mécanique de l'adaptateur arrière ou du VTR.
1
2
3
4
5
6
7
8
9
10 11
12 13
14
15
16 17
18
19 20
21
22 23
24
25
26 27 28
29 30
31
32
33
34
35 36
37
38 39
40
41
42 43 44
45 46
47
48
49 50
D02-50P-T
1 - VIDEO GEN LOCK IN
VIDEO GEN LOCK IN*
2 - GEN LOCK GND
3 - +9V CAM OUT
4 - -5V CAM OUT
5 - POWER GND
6 - POWER GND
7 - RED VIDEO OUT
8 - GREEN VIDEO OUT
9 - BLUE VIDEO OUT
10 - R G B GND
11 - N C
12 - N C
13 - N C
14 - SCD IN, OUT
SD CAM CA OUT *
SD CAM CA OUT**
15 - MIC CAM GND
16 - MIC CAM X OUT
17 - MIC CAM Y OUT
18 - VIDEO EXT IN
19 - VIDEO EXT GND
20 - AUDIO LEVEL IND IN
NOT USED *
NOT USED **
21 - SPARE
22 - TAPE IND 10MN IN
SD CA CAM IN *
SD CA CAM IN **
23 - TAPE IND 5 MN IN
NOT USED *
ASS H IN **
24 - REC TALLY IN
REC TALLY IN *
MISO CA IN **
25 - BATT IND IN
CCU IND -5v IN *
CA INFO -9v IN **
26 - CTRL VIDEO EXT IN
CTRL VIDEO EXT IN *
MOSI CA OUT **
27 - VTR START/STOP
CALL IN *
SS CA 0 OUT **
28 - NOT USED
29 - R-Y VIDEO OUT
NOT USED **
30 - GND R-Y
31 - AUDIO CONT CH1 OUT
NOT USED *
NOT USED **
32 - VTR SAVE OUT
33 - AUDIO MONITOR IN
34 - SYNC OUT
35 - NOT USED
36 - PB STATUS IN
NOT USED *
SCK CA OUT**
37 - COLOUR FRAME OUT
38 - CTRL VIDEO EXT OUT
CTRL VIDEO EXT OUT*
RAZ V IN **
39 - POWER IN
40 - POWER IN
41 - Y VIDEO OUT
42 - GND Y
43 - ENCODED VIDEO OUT
44 - ENCODED VIDEO GND
45 - SPARE
PHANTOM POWER IN **
46 - NOT USED
47 - NOT USED
48 - RESERVED
49 - B-Y VIDEO OUT
NOT USED **
50 - GND B-Y
* With CCU 1625 ** With CA 85
