5 - "VIDEO OUTPUT" socket
The video on this socket may be: R, G, B (R-G), (B-G) or ENC
(Level 1 V p-to-p/75 Ohms).
Refer to camera operation.
6 - "GEN LOCK" connector
GEN LOCK video signal input to control sync generator (H, V, SP) of the camera via an
external encoded video source.
7 - "REMOTE IN" connector
Connection of an OCP 40/42 panel.
For operation of camera from a control panel, refer to the control panel manual.
8 - Pushbutton
Sliding shoulder strap unlocking
9 - Indicator lights
With the camera connected to a VTR, these indicator lights indicate that recording is
taking place.
With the camera connected to a CCU (Channel Control Unit), these lights indicate that the
camera is ON AIR or a call from the panel operator (CALL).
10
5
6
4
3
2
1
9
8
7

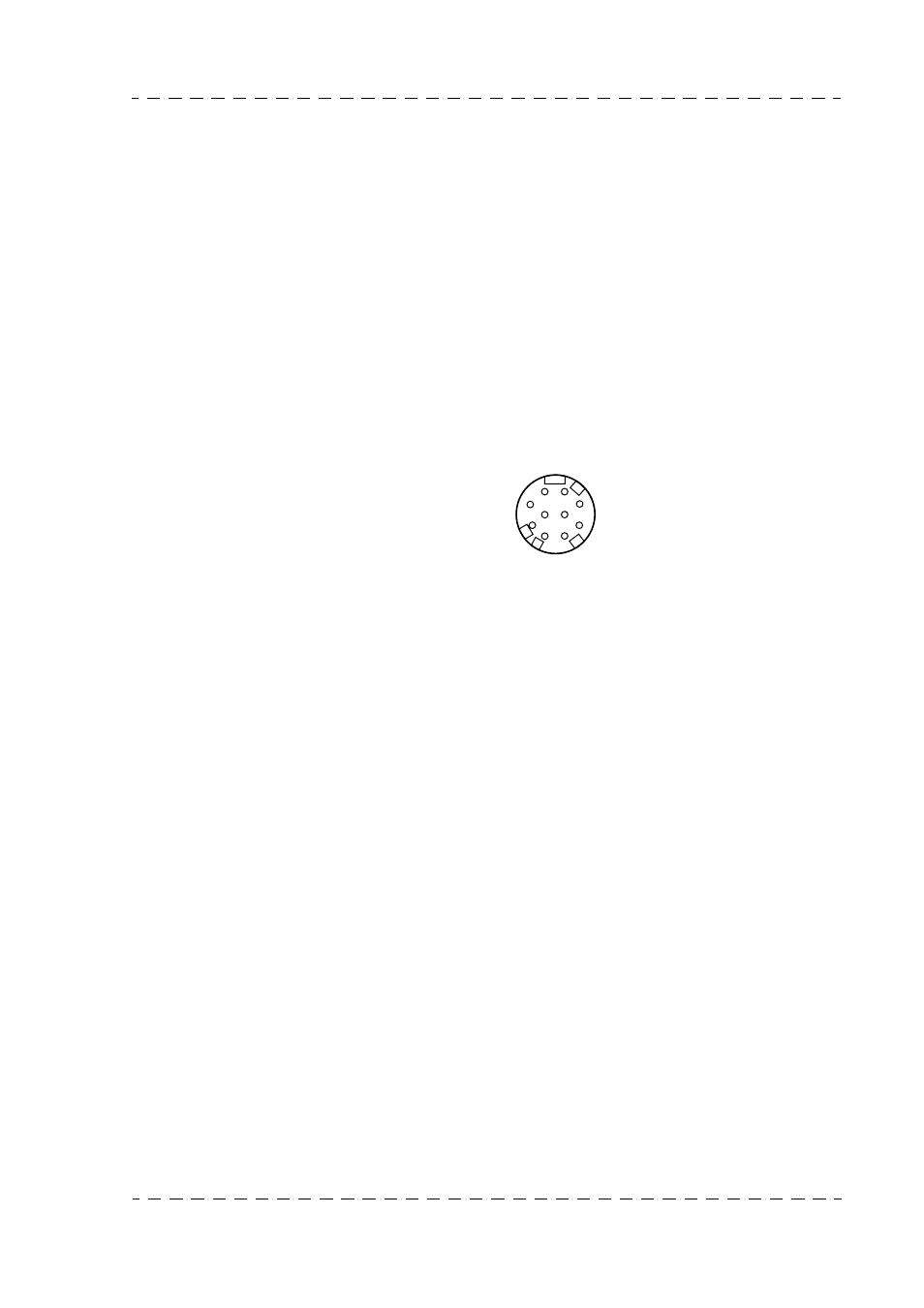

1 : +12v BATT.
2 : RB+.
3 : RA-.
4 : EXT OCP RDY.
5 : -BATT.
6 : AB+.
7 : AA-.
8 : Not Connected
9 : +12V BATT.
10 : -BATT.
Socket
HR-10-10R-10S
Corresponding plug
HR-10-10P-10P
