202 Chapter 6 - Rear adapter (CA25)
Functions of internal master board switches
B1657D902C
Septembre 2000
THOMSON TTV 1657D
User manual
Attaching pin
A shoulder strap can be attached to this pin.

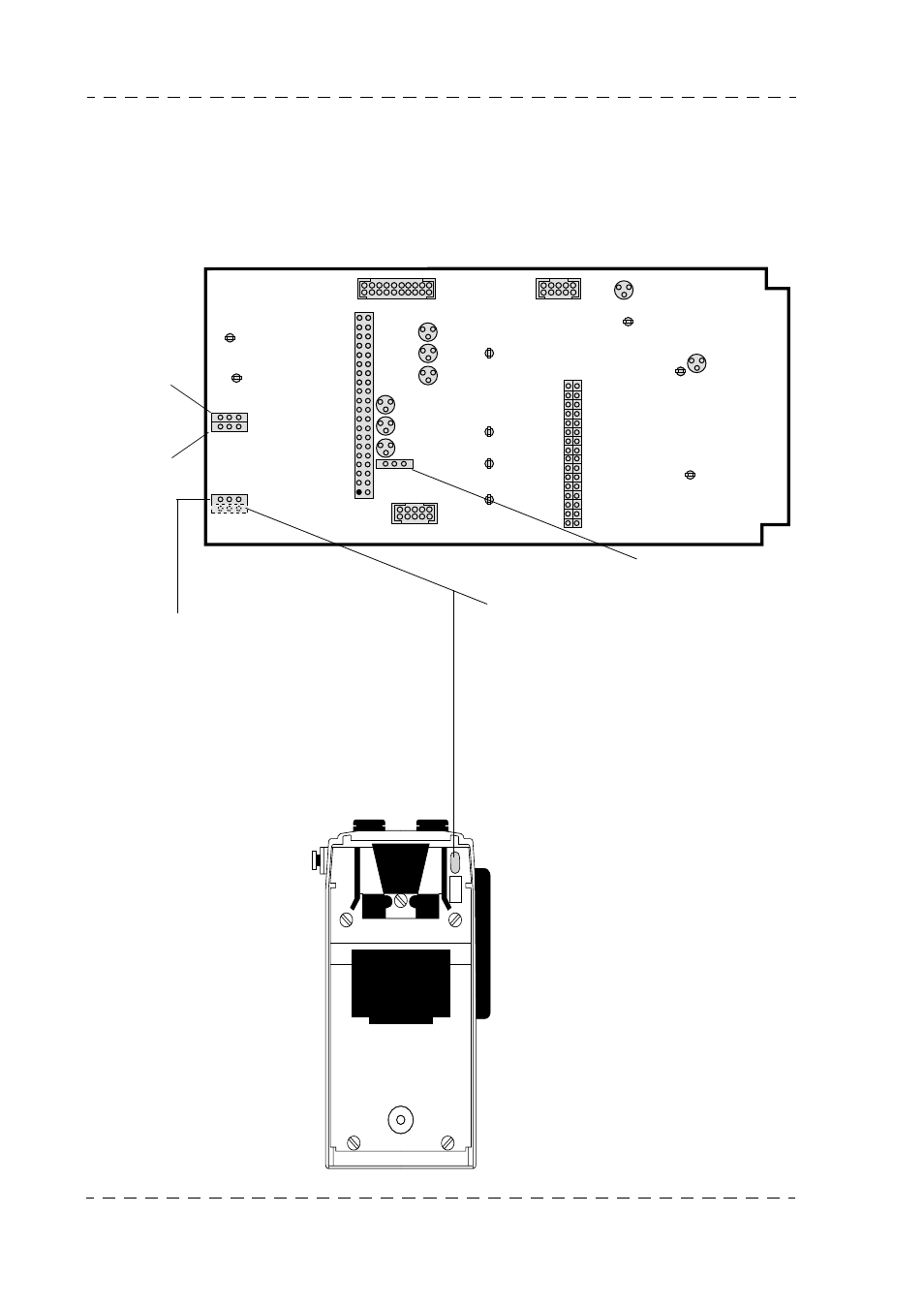

6.7 - FUNCTIONS OF INTERNAL MASTER BOARD
SWITCHES
)
Inside
Switch
CA25
VTR
S281
Not used
S282
Not used
S280
Selection :
Y C
R
C
B
/R G B in the EPF configuration
with the CCU 1625:
• without APCM option,
determines the type of video at
the CCU output,
S23
SYNC G : ON/OFF
S283 (component side)
CA25/VTR selection:
• if the CA25 is connected to a
CCU: CA25 position,
• if the CA25 is connected to a
VTR: VTR position.
