Chapter 6 - Rear adapter (CA25)
197
Connector definitions
THOMSON TTV 1657D
User manual
B1657D902C
Septembre 2000

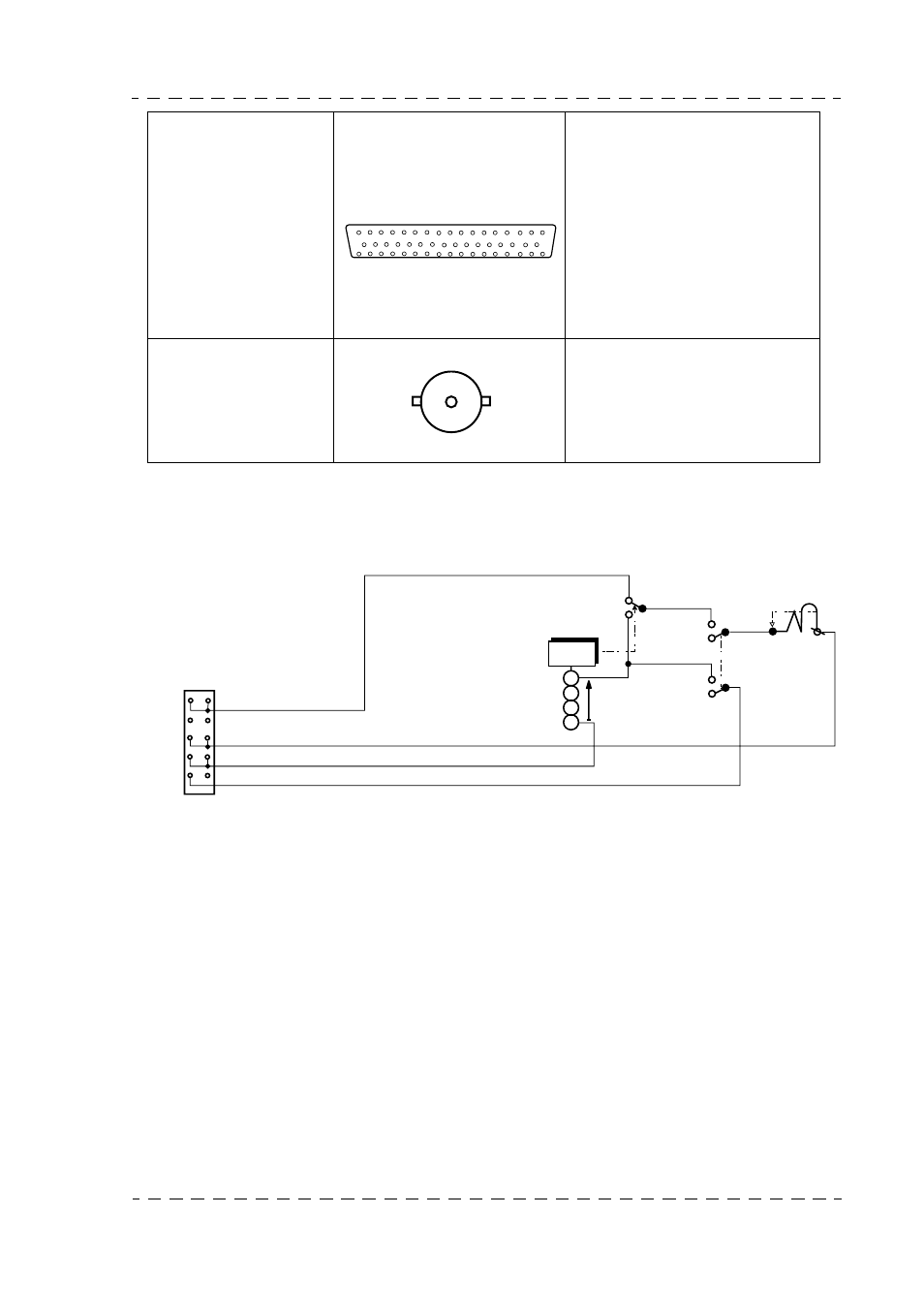

CA25 power supply diagram
5 - 50-PIN
CONNECTOR
6 - RET OUT
Return video output socket (1 V
pp/75 Ohms)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
P102
D02K-50S-F0
1 - GEN LOCK VIDEO OUT
2 - GEN LOCK GND
3 - +9V CAM IN
4 - -9V CAM IN
5 - POWER GND
6 - POWER GND
7 - RED VIDEO IN
8 - GREEN VIDEO IN
9 - BLUE VIDEO IN
10 - R G B GND
11 - N U
12 - N U
13 - N U
14 - SD CAM CA IN
15 - MIC CAM GND
16 - MIC CAM X IN
17 - MIC CAM Y IN
18 - VIDEO EXT OUT
19 - VIDEO EXT GND
20 - N U
21 - N U
22 - SD CA CAM OUT/10MN
23 - NOT USED
24 - REC TALLY OUT
25 - BATT IND OUT
CCU IND OUT
26 - CTRL VIDEO EXT OUT
27 - VTR ST IN /CALL OUT
28 - N C
29 - R-Y VIDEO IN
30 - R-Y GND
31 - N U
32 - VTR SAVE
33 - AUDIO MONI/VTR SAVE
34 - SYNC
35 - N U
36 - N U
37 - COLOUR FRAME IN
38 - CTRL VIDEO EXT IN
39 - POWER OUT
40 - POWER OUT
41 - Y VIDEO IN
42 - Y GND
43 - ENCODED VIDEO IN
44 - ENCODED VIDEO GND
45 - N U
46 - N U
47 - N C
48 - N U
49 - B-Y VIDEO IN
50 - B-Y GND
S02
S01
P06
POWER
7201P 4HZ0E
BREAKER
4A
ON
OFF
ON
OFF
+12V POWER CABLE
POWER
-BATT GND
+BATT (ON)
A
B
1
2
3
4
5
LXDC10
BATTERY VOLTAGE LEVEL DETECTION TO VTR
ALIM
GND
(0V)
+
BATT
(11/17V=)
NC
1
2
3
4
J40
NC
