Chapter 2 - Camera 131
Description
THOMSON TTV 1657D
User manual
B1657D902C
Septembre 2000

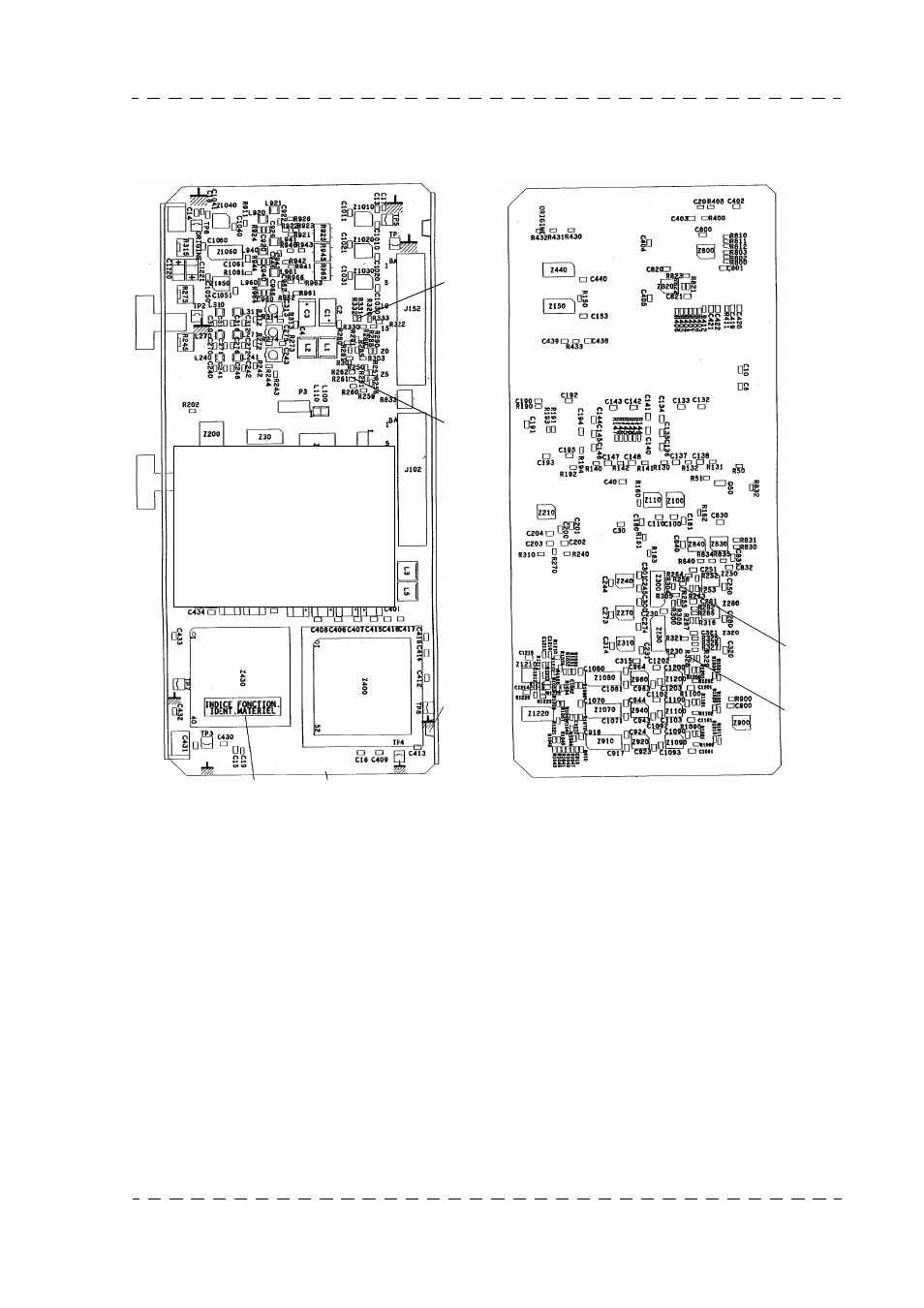

"DIGITAL PROCESS" (DP1 or DP2)
board Version 2 (with daughter PCB)
seen from connectors side. "DIGITAL PROCESS" (DP1 or DP2)
board Version 2 (with daughter PCB)
seen from component side.
R255
R328
R331
R261
Daughter PCB
