Chapter 2 - Camera 135
Camera operation
THOMSON TTV 1657D
User manual
B1657D902C
Septembre 2000
• by successive operations of switch (1) towards "F+" or "F-", set the cursor to "CLEAR
SCAN",
• by successively pressing keys "+" or "-" (7), make the adjustment.
NOTE: Indicate the number of the last "CUSTOM FILE" recalled ("RECALL CUSTOM
FILE" function available if switch (1) is set to "SAVE"). If an operational setting
has been modified since the recall, the number is followed by the symbol *.
2.2.2.2.2 - Special cases
Controls located on left-hand side of camera:
• GAIN (4): used to directly vary the master gain in steps of 6 dB (except for the 18-21 dB
value); the values directly accessible are therefore 0 dB, 6 dB, 12 dB, 18 dB and 21 dB.
The intermediate values - 3 dB, 3 dB, 9 dB and 15 dB are obtained by pressing keys "+"
or "-" (7) when "GAIN" switch (4) was the last switch activated.
• PICT (2): Selection of TEST signals.
The camera can generate two types of TEST signals:
- the "BAR PATTERN" signal,

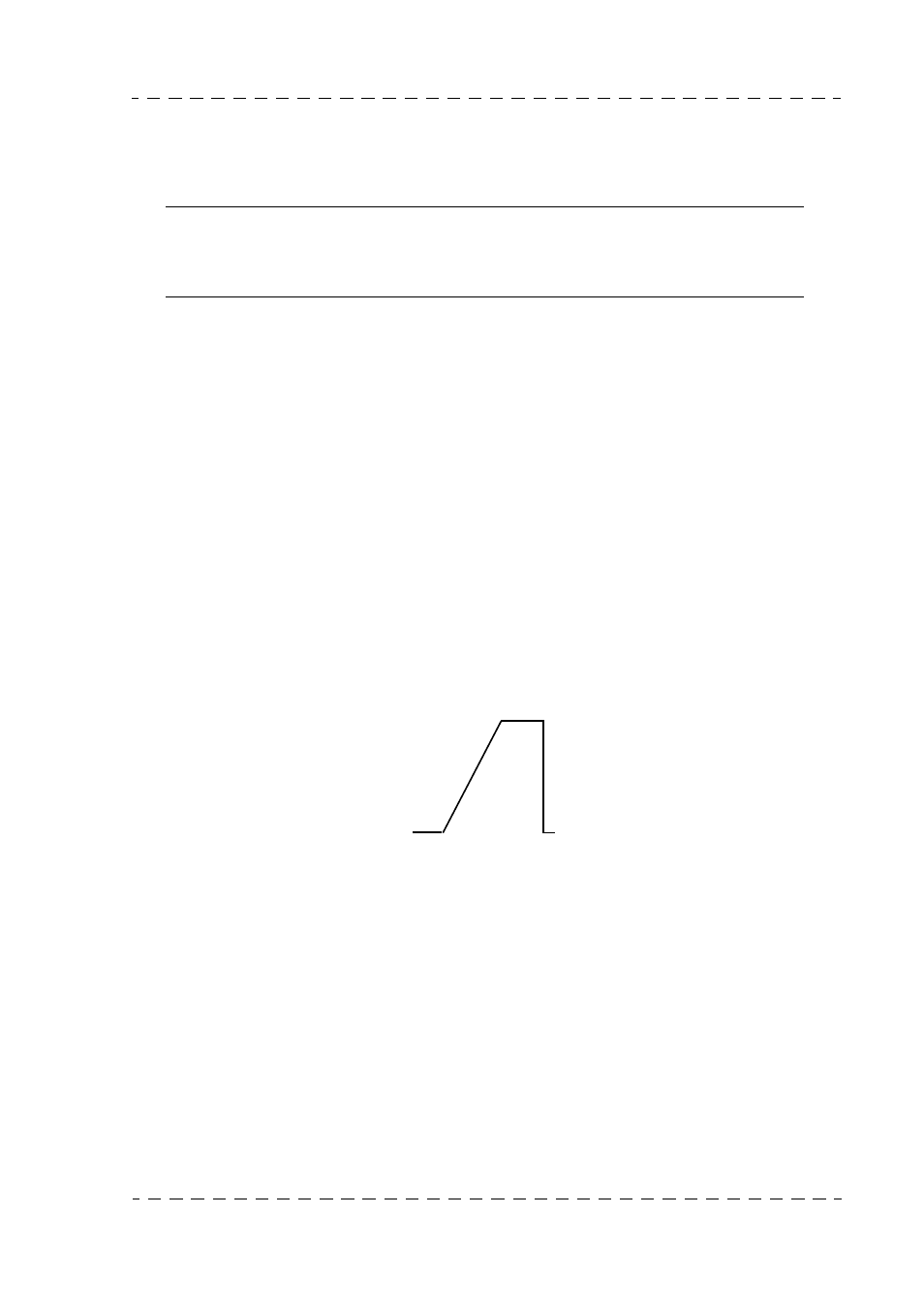

- the "SAW" (tooth) signal.
Both these signals are obtained sequentially by operating the "PICT" switch (2)
towards the back of the camera. Whatever the test signal displayed, pressing towards
"PICT" selects the "IMAGE" video.
