CENTRIX™ & EVENTIX™
Chapter 1 : INTRODUCTION (continued)
PAGE 9
1-6. CENTRIX
™
FRONT PANEL DESCRIPTION
POWER:
LED ON: device ON.
LED OFF: device OFF.
LED blinking slowly: update in progress.
LED blinking quickly: update/start error. You should restart the device.

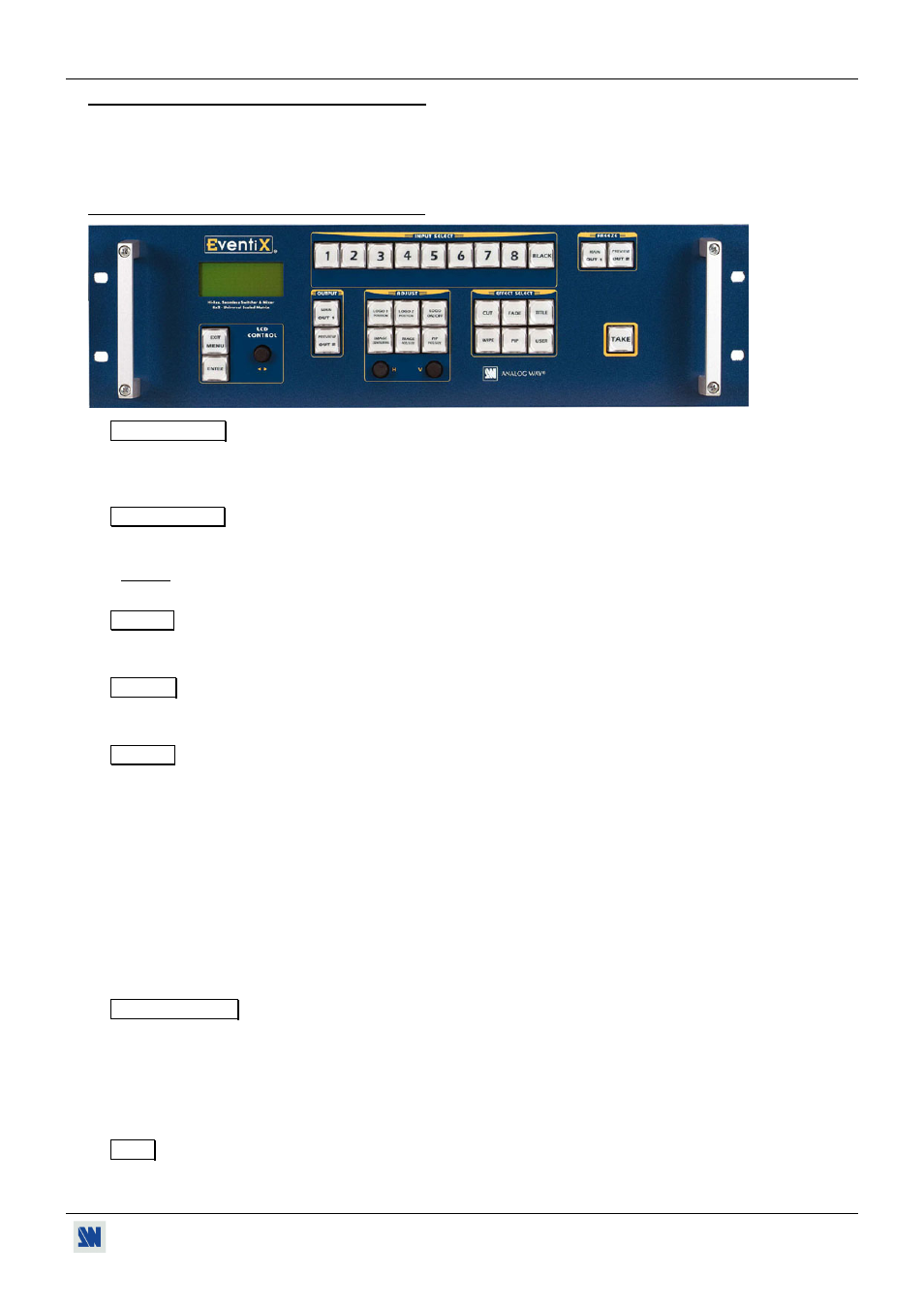

1-7. EVENTIX
™
FRONT PANEL DESCRIPTION
Figure
2
LCD CONTROL
EXIT/MENU:
Switches between Status and Control mode.
ENTER:
Validates a selected item.
:
Allows scrolling thru the different menus.
INPUT SELECT
1 to 8:
Input source selection.
BLACK:
Black screen selection.
NOTE: The turn ON LED indicates the selected input (displayed on MAIN / OUTPUT 1). The blinking LED
indicates the pre-selected input (displayed on PREVIEW / OUTPUT 2).
FREEZE
MAIN/OUT 1:
Allows to freeze the MAIN / OUTPUT 1.
PREVIEW/OUT 2:
Allows to freeze the PREVIEW / OUTPUT 2.
OUTPUT
MAIN/OUT 1:
MAIN / OUTPUT 1 selection for adjustments or input selection.
PREVIEW/OUT 2:
PREVIEW / OUTPUT 2 selection for adjustments or input selection.
ADJUST
LOGO 1 POSITION:
Horizontal & Vertical logo #1 position adjustment. Adjust with H & V knobs.
LOGO 2 POSITION:
Horizontal & Vertical logo #2 position adjustment. Adjust with H & V knobs.
LOGO ON/OFF:
Display ON or OFF the assigned logos of the displayed input.
IMAGE CENTERING: Automatically position the selected source in the centering pattern.
IMAGE POS. / SIZE: IMAGE position & size adjustment.
• First push: position adjustment. Adjust with H & V knobs.
• Second push: size adjustment. Adjust with H & V knobs.
PIP POS. / SIZE:
PIP position & size adjustment.
• First push: position adjustment. Adjust with H & V knobs.
• Second push: size adjustment. Adjust with H & V knobs.
H: Horizontal
adjustment.
V: Vertical
adjustment.
EFFECT SELECT
CUT:
CUT effect selection.
PIP:
PIP effect selection.
USER 1:
USER 1 effect selection.
USER 2:
USER 2 effect selection.
USER 3:
USER 3 effect selection.
USER 4:
USER 4 effect selection.
TAKE
Switch the pre-selected input (blinking key) on the MAIN output with the selected
EFFECT (EFFECT KEYS).
