CENTRIX™ & EVENTIX™ Chapter 3 : OPERATING MODE (continued)
PAGE 31
3-2. OPERATING WITH THE FRONT PANEL OF THE EVENTIX™ (continued)
3-2-2. OPERATING IN MATRIX MODE
• SETTINGS
c We recommend resetting the EVENTIX ™ device to its default values, with the LCD menu (CONTROL >
default value > yes) before proceeding.
d Set the EVENTIX ™ in MATRIX MODE with the LCD menu (MODE > matrix mode).
e Select the input type connected to the inputs with the LCD menu (INPUT > input type).
f Make the following adjustments for the display device connected to the OUTPUT 1:
• Select the output sync according to your display device with the LCD menu (OUTPUT X > output sync).
• Select the output rate mode with the LCD menu (OUTPUT X > output rate).
• Select one of the output formats with the LCD menu (OUTPUT X > output format).
NOTE: For fixed pixels display device (DMD, LCD, PLASMA…), always select the output format
corresponding to the native resolution of your display device. Thus, the display device will not have to
scale the image and the result will be better.
• Select the type of screen (4/3 or 16/9) with the LCD menu (OUTPUT X > type of screen > 4/3 or 16/9),
according to your wall mounted projection screen shape.
g Then renew the adjustments of the step f for the display device connected to the OUTPUT 2.
• INPUT SELECTION
c Select an output (OUT 1 or OUT 2) with the OUTPUT SELECT keys.
d Pre-select an input with the INPUT SELECT keys. The key starts blinking.
e Press on TAKE to display the pre-selected input onto the selected output. The transition operates with a fading
to black.
NOTE: You can switch simultaneously on the OUTPUT 1 & 2: do the operations c and d for the OUTPUT 1,
then do the operations c and d for the OUTPUT 2, finally press the TAKE key.
NOTE: To switch directly from the input select key (without pressing the TAKE key), you should activate the auto
TAKE function (CONTROL > auto TAKE: ON).

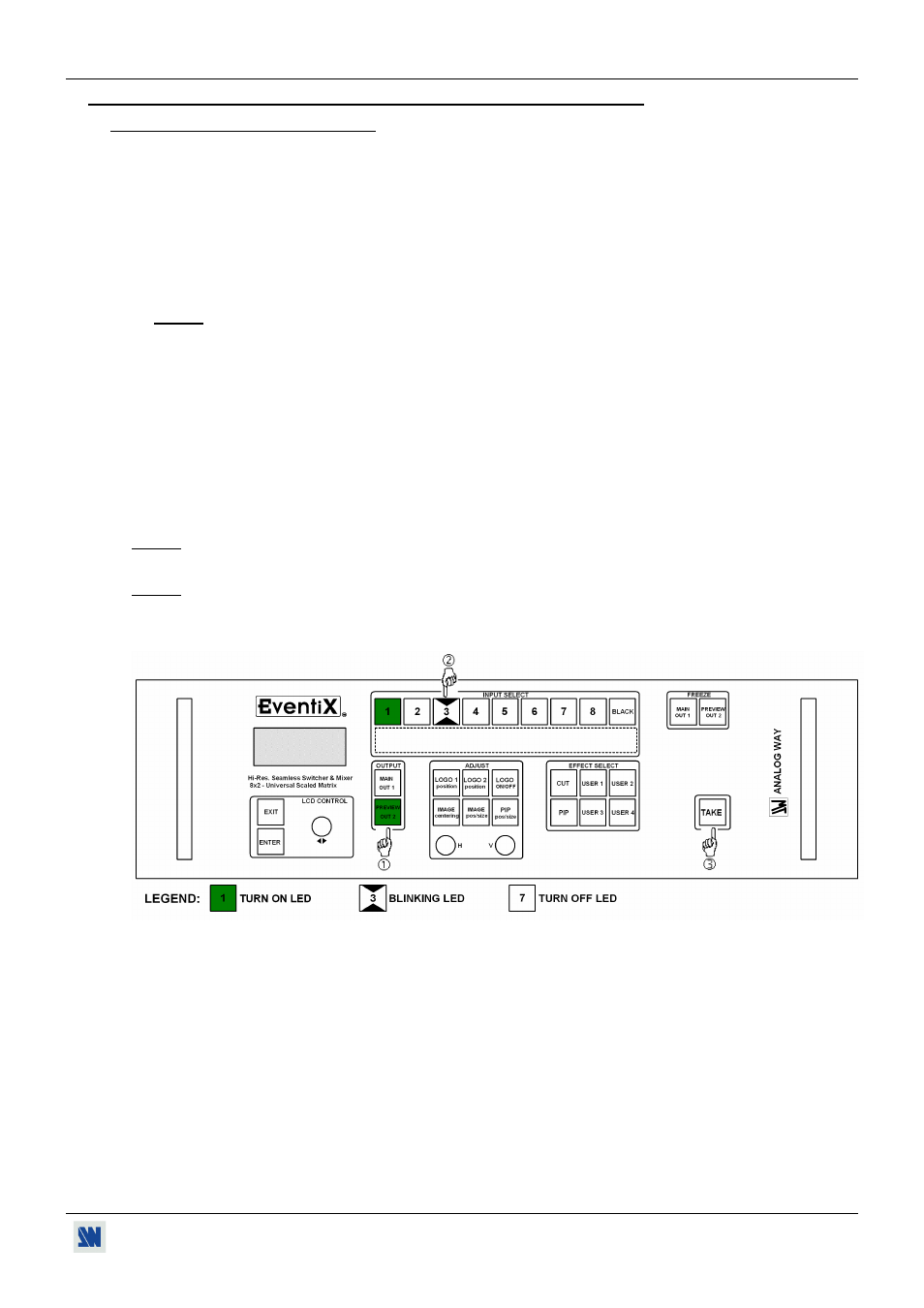

Figure 30
