CENTRIX™ & EVENTIX™
PAGE 43
Chapter 6 : EVENTIX ™ & REMOTE KEYPAD LCD SCREEN DESCRIPTION
6-1. INTRODUCTION
The LCD screen is composed of 2 modes: the STATUS MODE and the CONTROL MODE.
• The STATUS MODE indicates the input and the output status.
• The CONTROL MODE allows selecting and adjusting the parameters.
6-2. LCD CONTROL BUTTONS
The LCD screen is controlled by 3 buttons:
 knob: To scroll thru the different menus.
EXIT MENU button: • From the STATUS MODE, press on this button to display the CONTROL MODE.
• From the CONTROL MODE, press on this button to:
- return to the previous menu without safeguarding the item.
- return to the STATUS MODE (press several times).
ENTER button: • From the STATUS MODE, press on this button to display the CONTROL MODE.
• From the CONTROL MODE, press on this button to confirm a selected item.

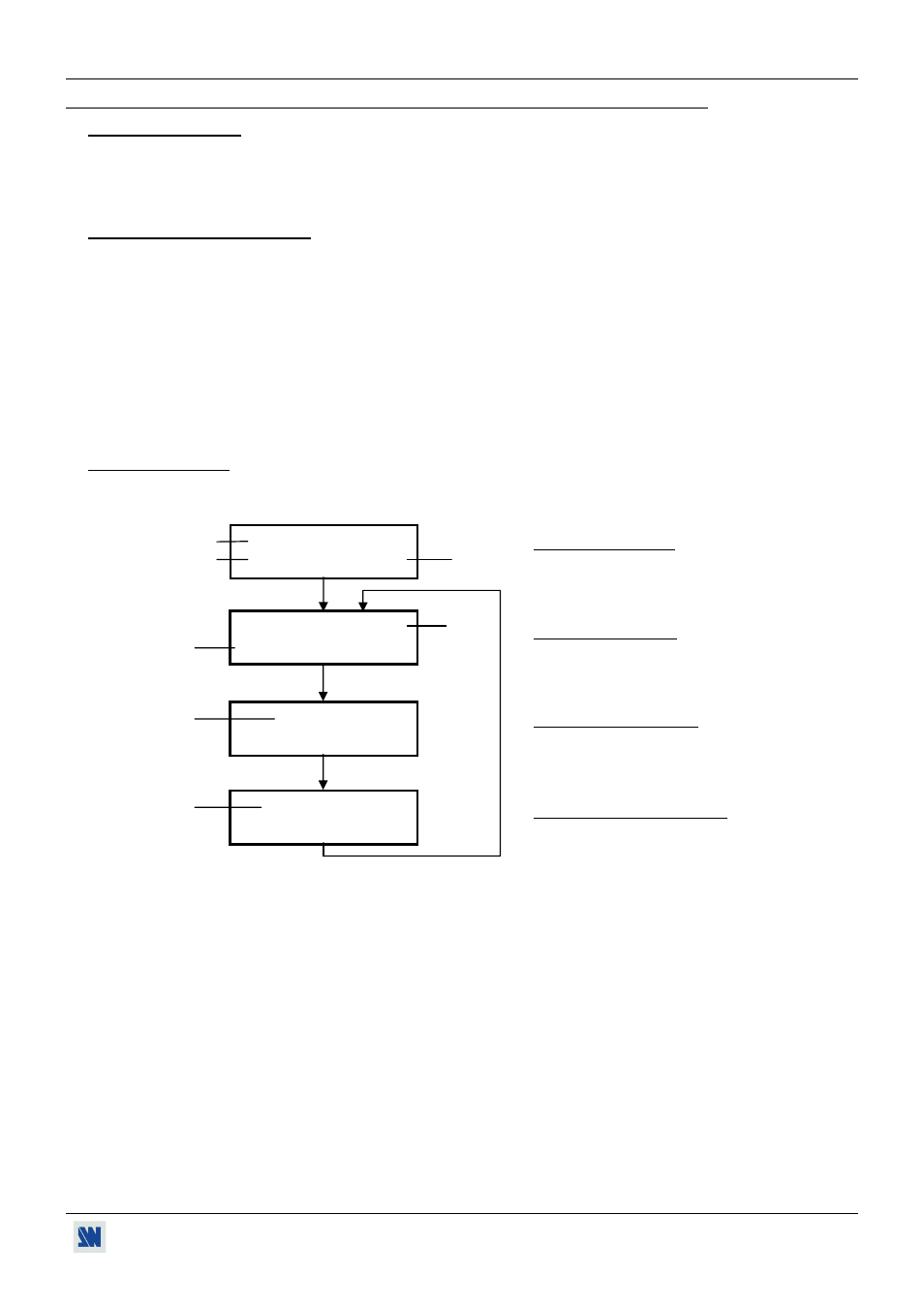

6-3. STATUS MODE
When switching ON the device, the LCD screen shows the product's name and status as follows:
c DEVICE VERSION
d OUTPUT FORMAT
e OUTPUT RATE
f SELECTED INPUT
g PRE-SELECTED INPUT
g
f
e
PRODUCT NAME
PRODUCT MODEL
PREVIEW = 5
SXGA 64K / 60Hz
MAIN = 3
XGA 40.6K / 60Hz
OUTPUT XGA
internal rate
60Hz
REMOTE KEYPAD
RK8022 V_._
DEVICE STATUS MENU
OUTPUT STATUS MENU
SELECTION STATUS MENU
PRE-SELECTION STATUS MENU
c
d
