Chapter 2 : CONNECTING (continued) CENTRIX™ & EVENTIX™
PAGE 14
2-1. CONNECTING THE CENTRIX™ / EVENTIX™ (continued)
2-1-2. MAIN (OUTPUT 1) AND PREVIEW (OUTPUT 2) OUTPUTS
The device is equipped with 2 MAIN outputs on HD15 female connector, and two PREVIEW outputs on HD15
female connector. Connect the MAIN display device onto the MAIN output. Connect the monitoring devices onto
the MAIN & PREVIEW outputs.
2-1-3. OPTIONAL SDTV VIDEO OUTPUTS (OPT-iX-SDTVD1 option)
The device equipped with this option provides simultaneously 4 SDTV video output signals (composite video,
S.VIDEO, YUV and SDI). These four video outputs display the same image as the MAIN output.

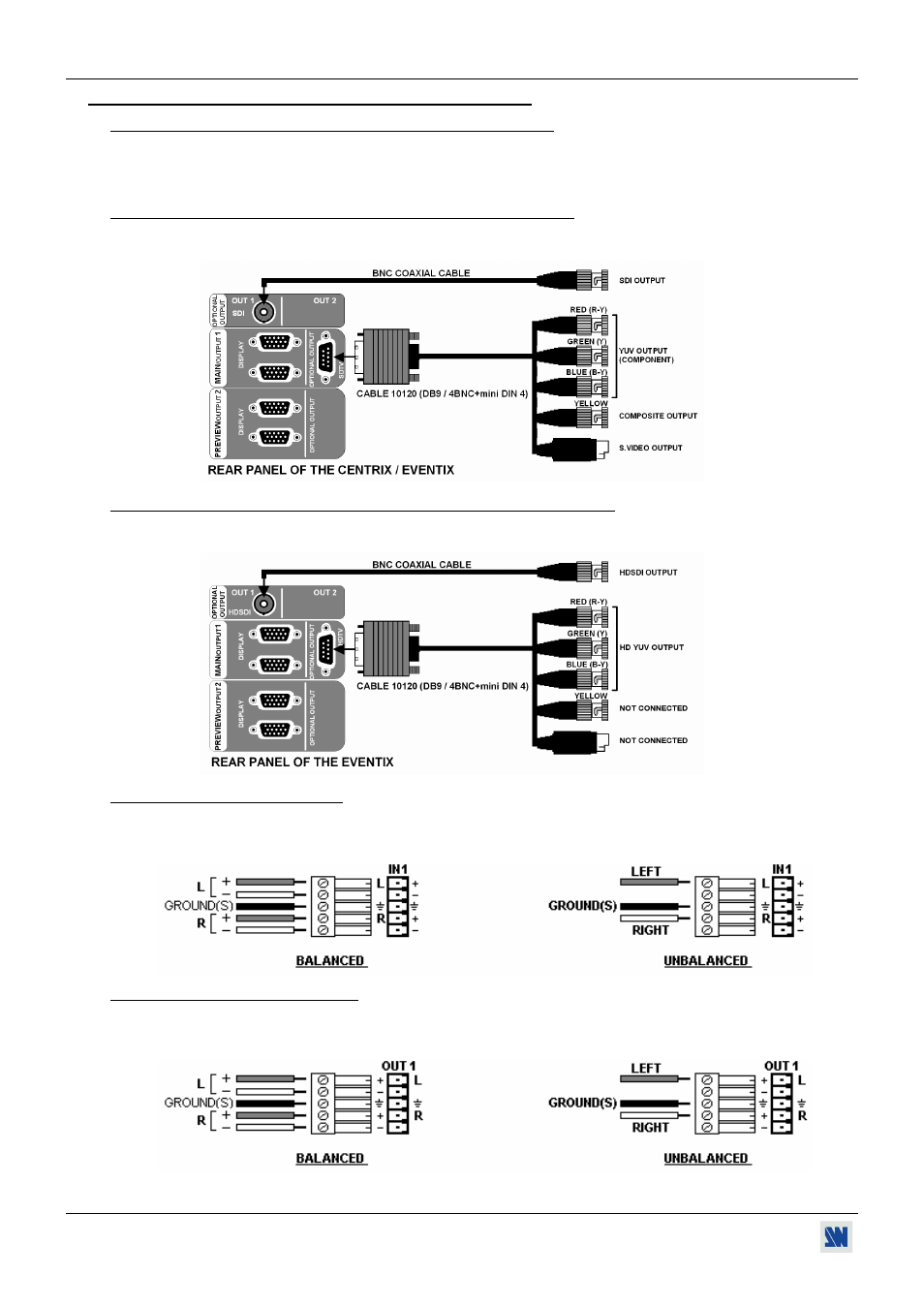

Figure 10
2-1-4. HDTV VIDEO OUTPUTS (available on the EVX8022HD-D model only)
The device provides simultaneously HD YUV & HDSDI signals. These two video outputs display the same image
as the MAIN output.
Figure 11
2-1-5. OPTIONAL AUDIO INPUTS
The devices with the OPT-iX-A option are equipped with 8 audio inputs & 1 auxiliary input (on 5-pin MCO male
connectors). This connector allows connecting BALANCED or UNBALANCED audio sources. Connect your
audio sources as follow:
2-1-6. OPTIONAL AUDIO OUTPUTS
The devices with the OPT-iX-A option are equipped with 2 audio outputs (MAIN / OUT1 & PRELIST / OUT2 on
5-pin MCO male connectors). This connector allows connecting BALANCED or UNBALANCED audio systems.
Connect your audio systems as follow:
