3-1. OPERATING WITH THE REMOTE CONTROL SOFTWARE (continued)
3-1-3. OPERATING IN MIXER MODE (continued)
• EXAMPLES OF TRANSITION
c PIP effect:
The PIP effect allows to insert an image into another one.
• Click on the Effects tab.
• Assign a PIP to one of the EFFECT keys: Click on the arrow of an EFFECT key and select PIP or PIP FADE,
then make all the needed adjustments (duration, size, position...) in the Effects windows.
• Press the TAKE key to activate the effect (ACTION 1 in the example below): the PREVIEW image is now
inserted into the MAIN image.
NOTE:
• You can change the image in the PIP (PREVIEW image) by selecting another input of the PREVIEW
output (ACTION 2): Press the SWITCH PREVIEW key and select the needed input (the transition
operates with a fading to black).
• You can change the background image (MAIN image) by selecting another input of the MAIN output
(ACTION 3): Press the SWITCH MAIN key and select the needed input (the transition operates with a
fading to black).
• To remove the PIP effect, press the TAKE key.

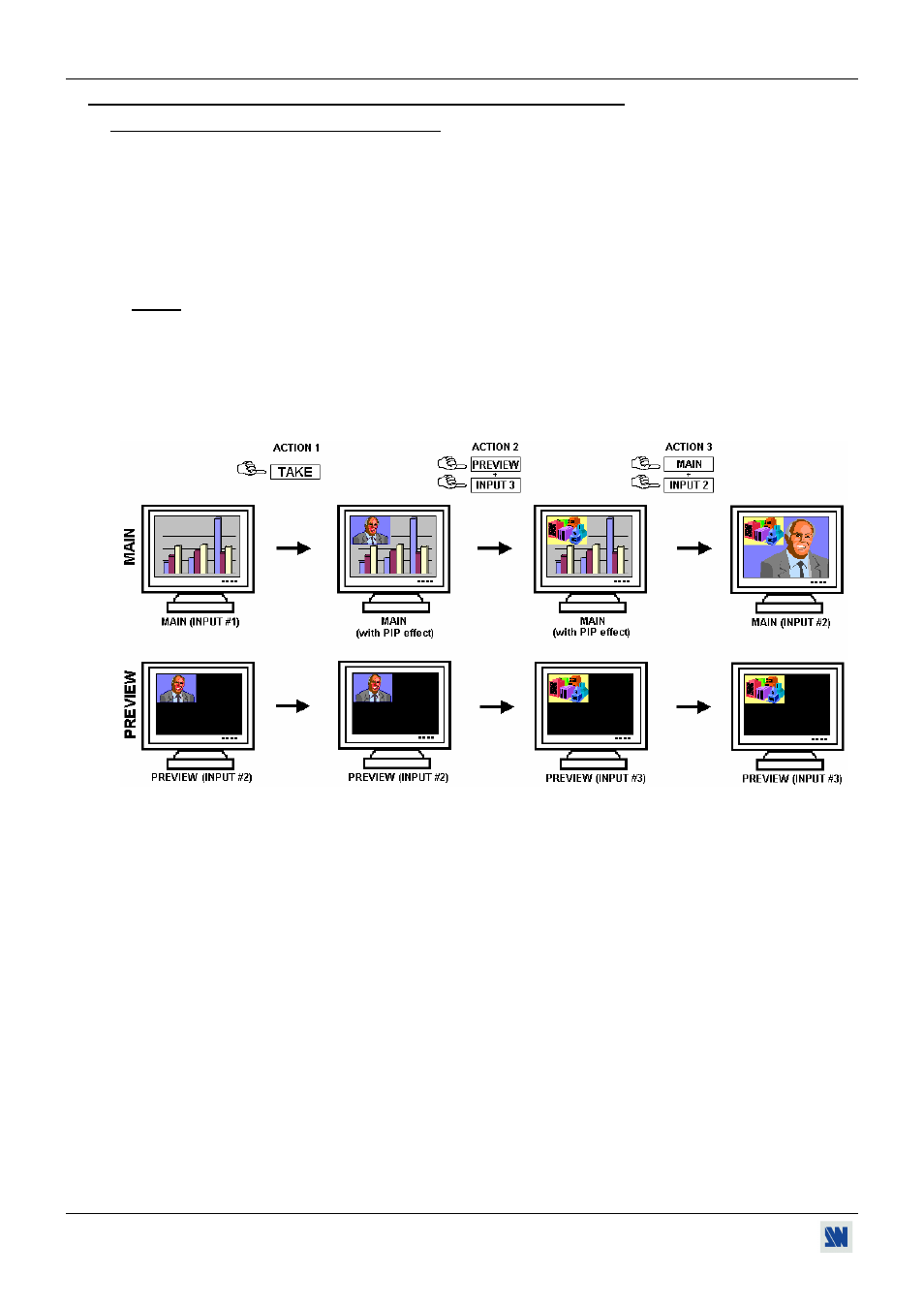

Figure 21: PIP effect.
