Chapter 1 : INTRODUCTION (continued) CENTRIX™ & EVENTIX™
PAGE 10

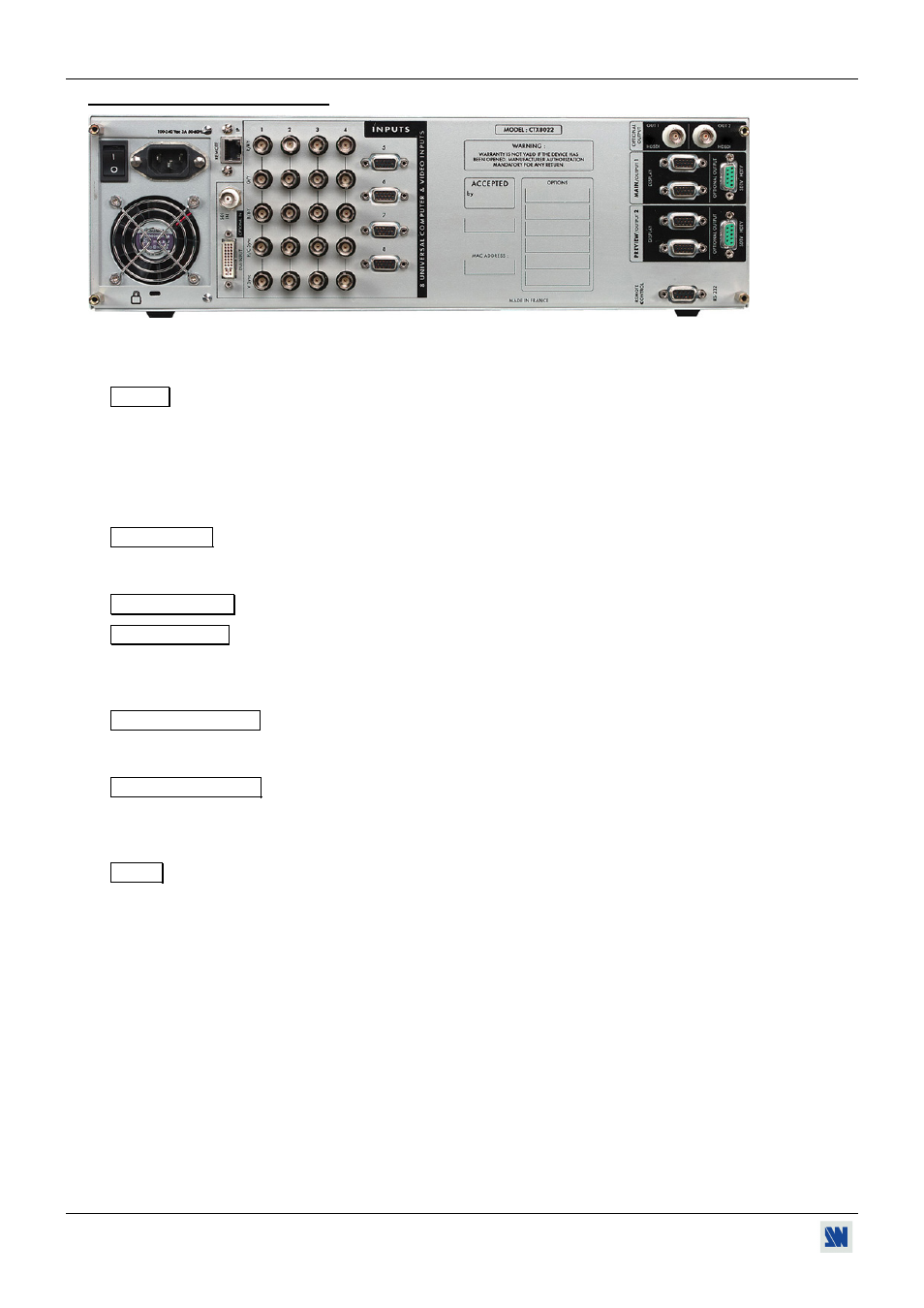

1-8. REAR PANEL DESCRIPTION
Figure 3
100-240 Vac 3A 50-60Hz: IEC standard power connector.
O / I : Power switch (O = OFF, I = ON)
INPUTS
1 to 8: 8 Universal Computer & Video Inputs. Each of the 8 inputs can accept both
COMPUTER sources (RGBHV, RGBS, and RGsB (SOG) signals), standard
TV/VIDEO sources (Composite video, S.VIDEO, Component (YUV), RGBS &
RGsB (SOG)), and HDTV sources (720p & 1080i).
The inputs 1 to 4 are provided with 5 BNC female connectors, and the inputs 5 to 8
are provided with a HD15 female connector.
OPTIONAL IN
DVI INPUT: Optional DVI (digital visual interface) input on a DVI connector.
SDI IN: Optional SDI input on a BNC connector.
REMOTE IP/LAN LAN communication port on a RJ45 connector.
MAIN / OUTPUT 1
DISPLAY: 2 MAIN outputs for the MAIN display devices (video projector, PLASMA, data
monitor) on HD15 female connectors.
OPTIONAL OUTPUT: Optional video (SDTV or HDTV) output #1 on DB9 female connector.
PREVIEW / OUTPUT 2
DISPLAY: 2 PREVIEW outputs for the PREVIEW display devices (video projector, PLASMA,
data monitor) on HD15 female connectors.
OPTIONAL OUTPUT
OUT 1: Optional video output #1 (SDI or HDSDI).
REMOTE CONTROL RS-232: RS-232 communication port & 3 tally outputs (on DB9 female connector).
AUDIO (OPT-iX-A option)
IN 1 to IN 8: Optional audio inputs.
AUX: Auxiliary input for mixing with the diffused source
MAIN / OUT 1: MAIN audio output.
PRELIST / OUT 2: PRELIST audio output.
