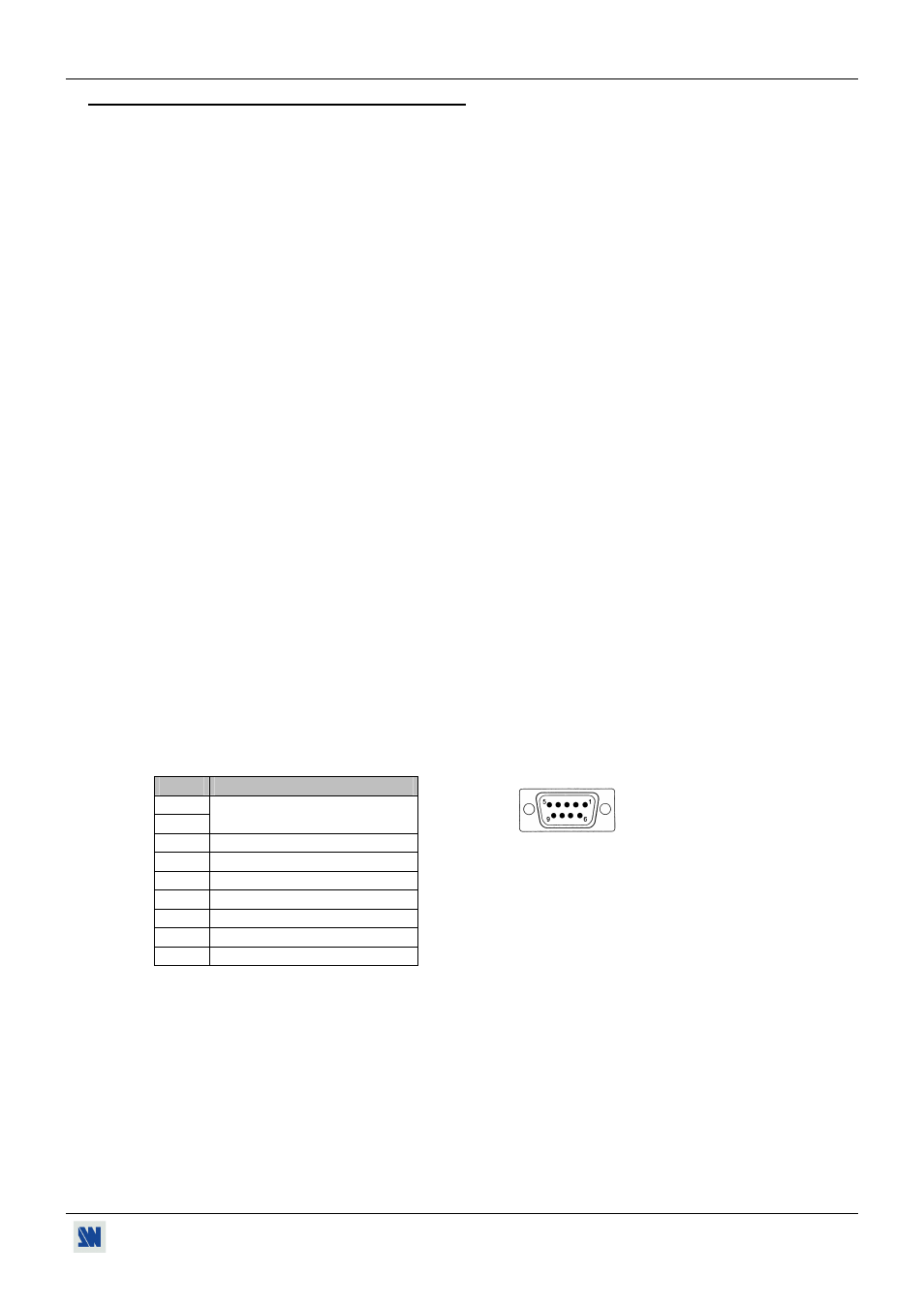

CENTRIX™ & EVENTIX™ Chapter 7 : TECHNICAL SPECIFICATIONS (continued)
PAGE 61
7-4. OPTIONAL VIDEO OUTPUTS (OPT-iX-SDTVD1)
• COMPOSITE VIDEO:
Connector: DB9 female.
Standard: PAL / SECAM: 15.625 kHz - 50 Hz (625L)
NTSC: 15.734 kHz - 60 Hz (525L)
Level: 1 Vp/p (0.7 V Luma + 0.3 V Sync.).
Impedance: 75 ohms.
• S.VIDEO:
Connector: DB9 female.
Standard: PAL: 15.625 kHz - 50 Hz (625L)
NTSC: 15.735 kHz - 60 Hz (525L)
Levels: Y = 1 Vp/p (0.7 V Luma + 0.3 V Sync.).
C = 0.3 Vp/p (chroma burst).
Impedance: 75 ohms.
• COMPONENT:
Connector: DB9 female.
Frequency: 15.625 kHz - 50 Hz (625 lines).
15.735 kHz - 60 Hz (525 lines).
Levels: Y = 1 Vp/p (0.7 V luma + 0.3 V sync).
Cr / Pr = 0.7 Vp/p.
Cb / Pb = 0.7 Vp/p.
Impedance: 75 ohms.
• SDI OUTPUT:
Connector: BNC female.
Signal: 270 Mbps serial digital output conforming to SMPTE 259M.
Impedance: 75 ohms.
• DB9 PIN ASSIGNMENT:
PIN # FUNCTION
1 RTN
2
(red, green, bleu, composite)
3 RED (R-Y)
4 GREEN (Y)
5 BLEU (B-Y)
6 Y (S.VIDEO)
7 COMPOSITE VIDEO
8 RTN (Y+C)
9 C (S.VIDEO)
DB9 Female connector
