92
Cy
cles de conversion de
coordonn
ées

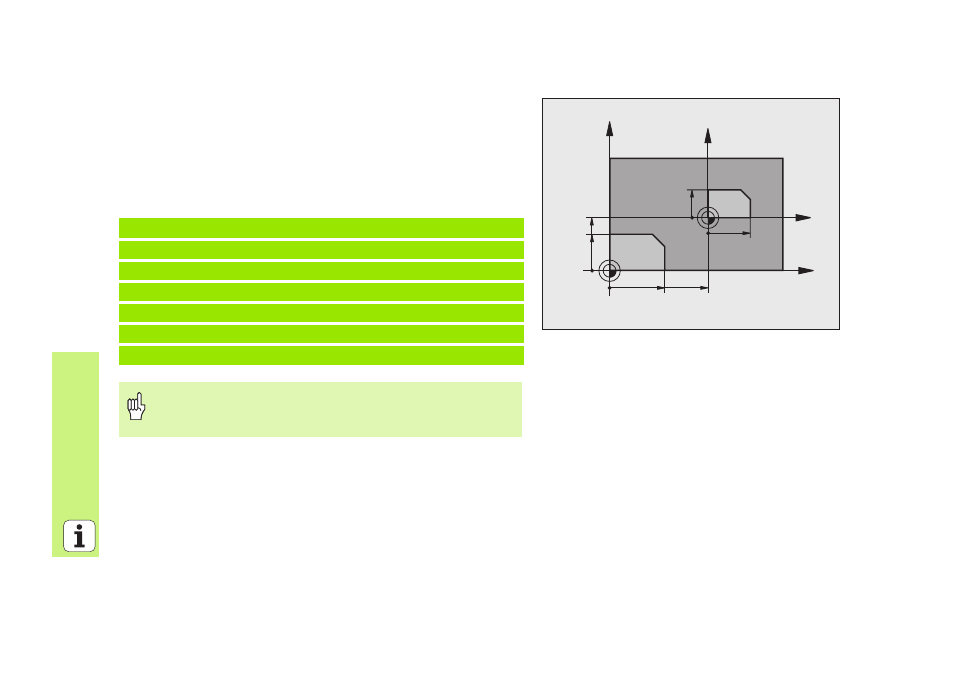

FACTEUR ECHELLE (cycle 11)
CYCL DEF: Sélectionner le cycle 11 FACTEUR ECHELLE
Introduire le facteur échelle SCL (de l'anglais: scale = échelle):
Plage d'introduction 0,000001 à 99,999999
Réduction … SCL<1
Agrandissement … SCL>1
Annulation du FACTEUR ECHELLE: Redéfinir le cycle avec SCL1.
11 CALL LBL1
12 CYCL DEF 7.0 POINT ZERO
13 CYCL DEF 7.1 X+60
14 CYCL DEF 7.2 Y+40
15 CYCL DEF 11.0 FACTEUR ECHELLE
16 CYCL DEF 11.1 SCL 0.75
17 CALL LBL1
Le FACTEUR ECHELLE est actif dans le plan d'usinage ou
dans les trois plans principaux (en fonction du paramètre-
machine 7410)!
X
Y
60
40
X
Y
36
30
(27)
(22.5)
