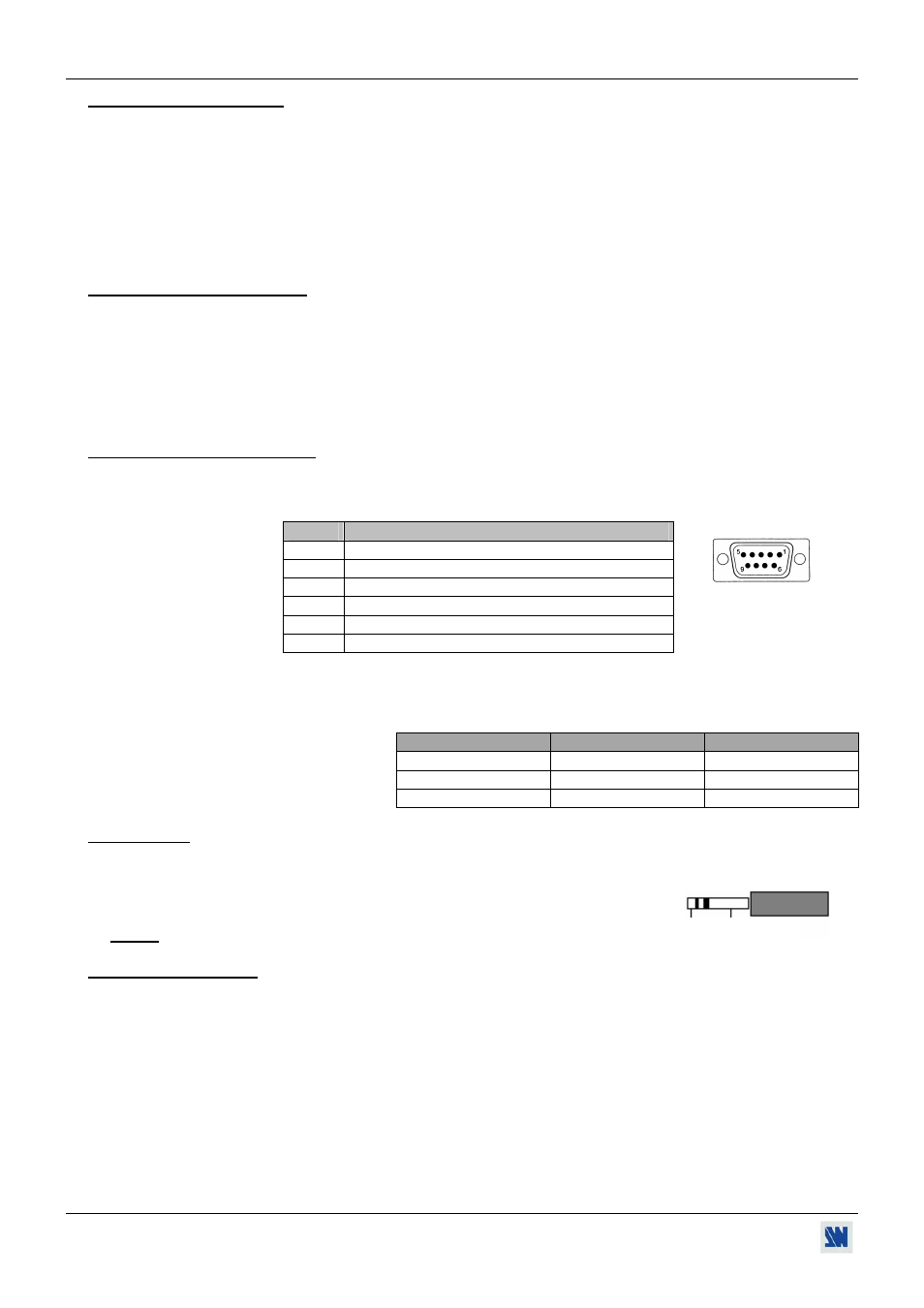

Chapter 8 : TECHNICAL SPECIFICATIONS (continued) OCTO VUE / QUATTRO VUE
PAGE 46
8-4. MAIN AUDIO OUTPUT
Connectors:
MCO.
Type: Stereo balanced & unbalanced.
Levels: Vo = + 18 dBu max (unbalanced).
Zo = 300 Ω (unbalanced).
Vo = + 24 dBu max (balanced).
Zo = 600 Ω (balanced).
Gain: 0 dB nominal (adjustable with Master volume).
8-5. PRELIST AUDIO OUTPUT
Connectors: Jack 3.5 mm.
Type: Unbalanced.
Levels: Vo = + 18 dBu max.
Zo = 300 Ω.
Gain: 0 dB nominal (adjustable with Master volume).
8-6. COMMUNICATION PORTS
• RS-232 (on DB9 female connector)
Data Rate:
9600 Bauds, 8 data bits, 1 stop bit, no parity bit, no flow control.
Pin-out:
• LAN (Optional on RJ45 connector)
Protocol: TCP (Transmission Control Protocol) / UDP (User Datagram Protocol).
Data Rate:
10 / 100 Mbps.
LED functions (on RJ45 connector): Left LED Right LED Meaning
OFF OFF No link
OFF ON 100 BASE-T link.
ON OFF 10 BASE-T link.
8-7. TRIGGER
Connector: Jack 3.5 mm female.
Command levels: ON = + 12 Vdc trigger. OFF = 0 Vdc.
Output Current: 0.1 A max at + 12 Vdc.
NOTE: This output is activate with the AC Power Switch (ON/OFF).
8-8. ENVIRONMENTAL
Power Supply:
Internal CE / UL / CSA / IEC 950 (50 W), universal, automatic.
Input: 100 VAC to 250 VAC; 50-60 Hz; I = 1 A Max.
Storage Temperature:
- 25 °C to + 85 °C (- 13 °F to + 185 °F).
Operating temperature: 0 °C to + 50 °C (32 °F to 122 °F).
Hygrometry: 10% to 80% (without condensation).
Dimensions:
D 265 x W 482 x H 44 mm / D 10.4” x W 19” x H 1.74”.
Compatible with the 19” rack (height = 1 unit).
Weight :
3.5 kg / 7.7 lbs.
PIN # FUNCTIONS
2 Tx1 (transmit data to the control device)
3 Rx1 (receive data from the control device)
4 Rx2 (receive data from the display device)
5 GROUND (Gnd)
8 Reserved for manufacturer.
9 Tx2 (transmit data to the display device)
DB9 connector
+ 12 Vdc Ground
Jack 3.5 connection
