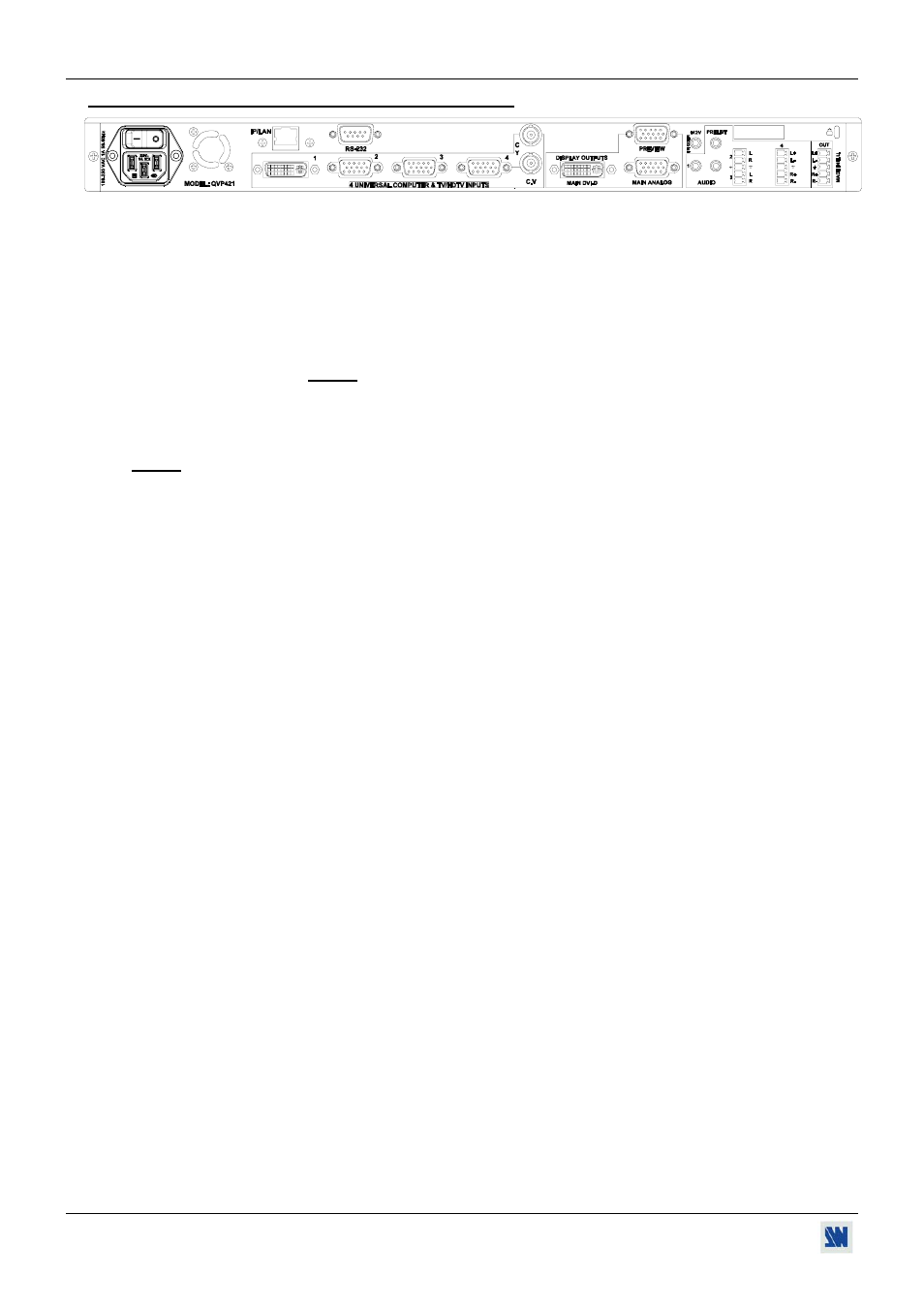

1-9. REAR PANEL DESCRIPTION OF THE QUATTRO VUE
100-250 VAC, 1A, 50-60 Hz: AC power inlet.
O / I:
AC power switch (O = OFF, I = ON).
IP/LAN:
LAN communication port on a RJ45 connector (optional).
RS-232:
RS-232 communication port on a DB9 female connector.
4 UNIVERSAL COMPUTER & TV/HDTV INPUTS:
1: Universal (computer and video) input on a DVI-I female connector.
NOTE: This input accept analog & digital Computer source.
2 to 3:
Universal (computer and video) inputs on a HD15 female connector.
4: Universal (computer and video) input on HD15 and 2Xbnc female connectors.
NOTE: All the universal inputs accept the following video source: Composite Video, S-Video, SD-YUV, RGBHV,
RGBS, RGsB & HD-YUV (HDTV)
DISPLAY OUTPUTS:
PREVIEW: PREVIEW output on a HD15 female connector.
MAIN DVI: MAIN digital & analog output on a DVI-I female connector.
MAIN ANALOG: MAIN analog output on a HD15 female connector.
AUDIO:
1: Unbalanced stereo audio input #1 on jack 3.5 female connectors.
2 & 3: Unbalanced stereo audio input #2 & #3 on MCO male connectors.
4: Balanced stereo audio input #4 on a MCO male connector.
OUT: Stereo audio output (balanced & unbalanced) on a MCO male connector.
PRELIST:
Prelist stereo audio output (unbalanced) on a MCO male connector.
Trigger +12 V:
A room (+ 12 Vdc trigger) command (3.5 mm jack female), allows to control external
functions such as up/down screen, lighting...
