OCTO VUE / QUATTRO VUE Chapter 1 : INTRODUCTION (continued)
PAGE 13

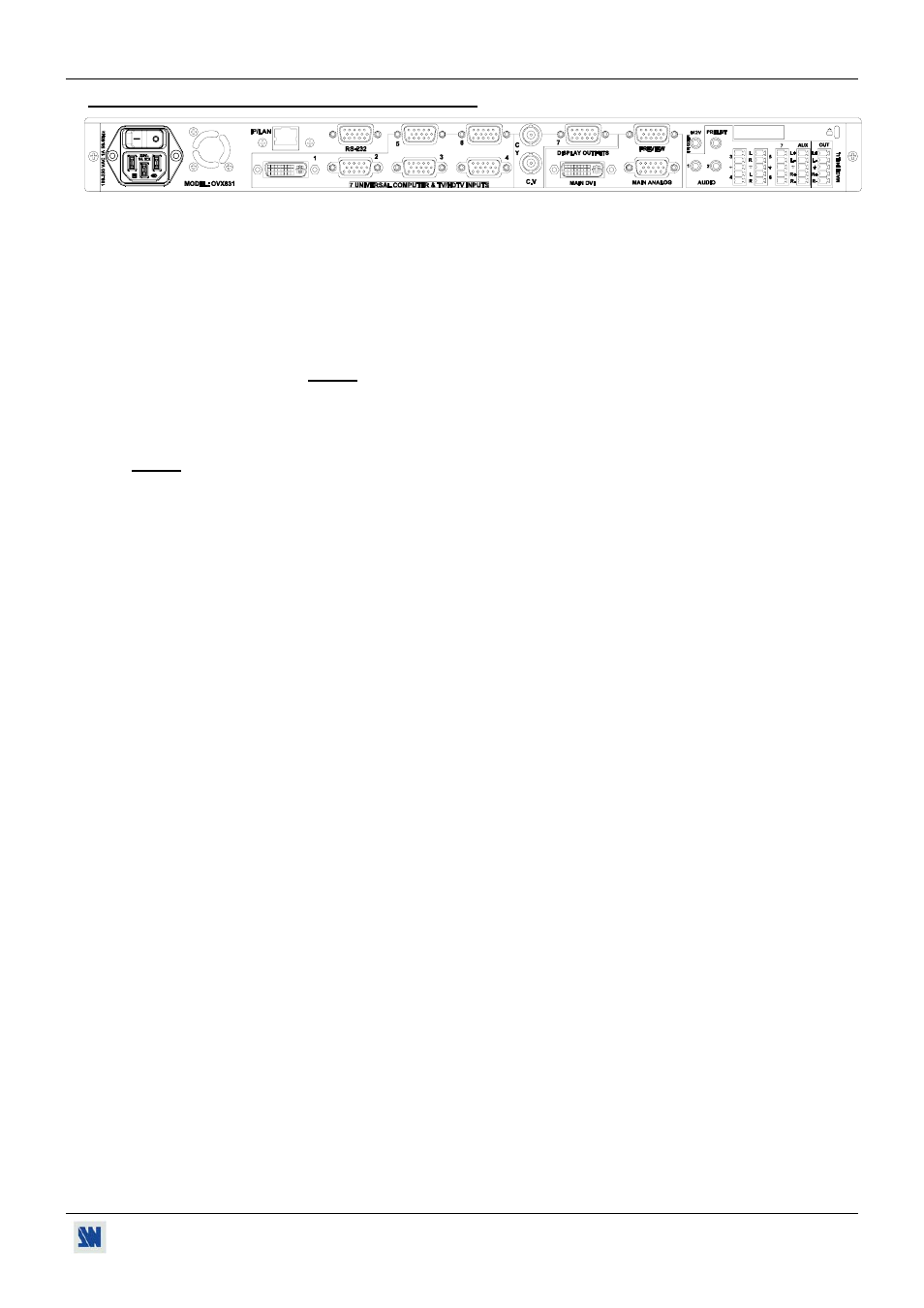

1-8. REAR PANEL DESCRIPTION OF THE OCTO VUE
100-250 VAC, 1A, 50-60 Hz: AC power inlet.
O / I:
AC power switch (O = OFF, I = ON).
IP/LAN:
LAN communication port on a RJ45 connector (optional).
RS-232:
RS-232 communication port on a DB9 female connector.
7 UNIVERSAL COMPUTER & TV/HDTV INPUTS:
1: Universal (computer and video) input on a DVI-I female connector.
NOTE: This input accept analog & digital Computer source.
2 to 6:
Universal (computer and video) inputs on a HD15 female connector.
7: Universal (computer and video) input on HD15 and 2Xbnc female connectors.
NOTE: All the universal inputs accept the following video source: Composite Video, S-Video, SD-YUV, RGBHV,
RGBS, RGsB &HD-YUV (HDTV)
DISPLAY OUTPUTS:
PREVIEW: PREVIEW output on a HD15 female connector.
MAIN DVI: MAIN digital & analog output on a DVI-I female connector.
MAIN ANALOG: MAIN analog output on a HD15 female connector.
AUDIO:
1 & 2: Unbalanced stereo audio input #1 & #2 on jack 3.5 female connectors.
3 to 6: Unbalanced stereo audio input #3 to #6 on MCO male connectors.
7: Balanced stereo audio input #7 on a MCO male connector.
AUX: Balanced stereo auxiliary audio input on a MCO male connector.
OUT:
Main stereo audio output (balanced & unbalanced) on a MCO male connector.
PRELIST: Prelist stereo audio output (unbalanced) on a MCO male connector.
Trigger +12 V: A room (+ 12 Vdc trigger) command (3.5 mm jack female), allows to control external
functions such as up/down screen, lighting...
