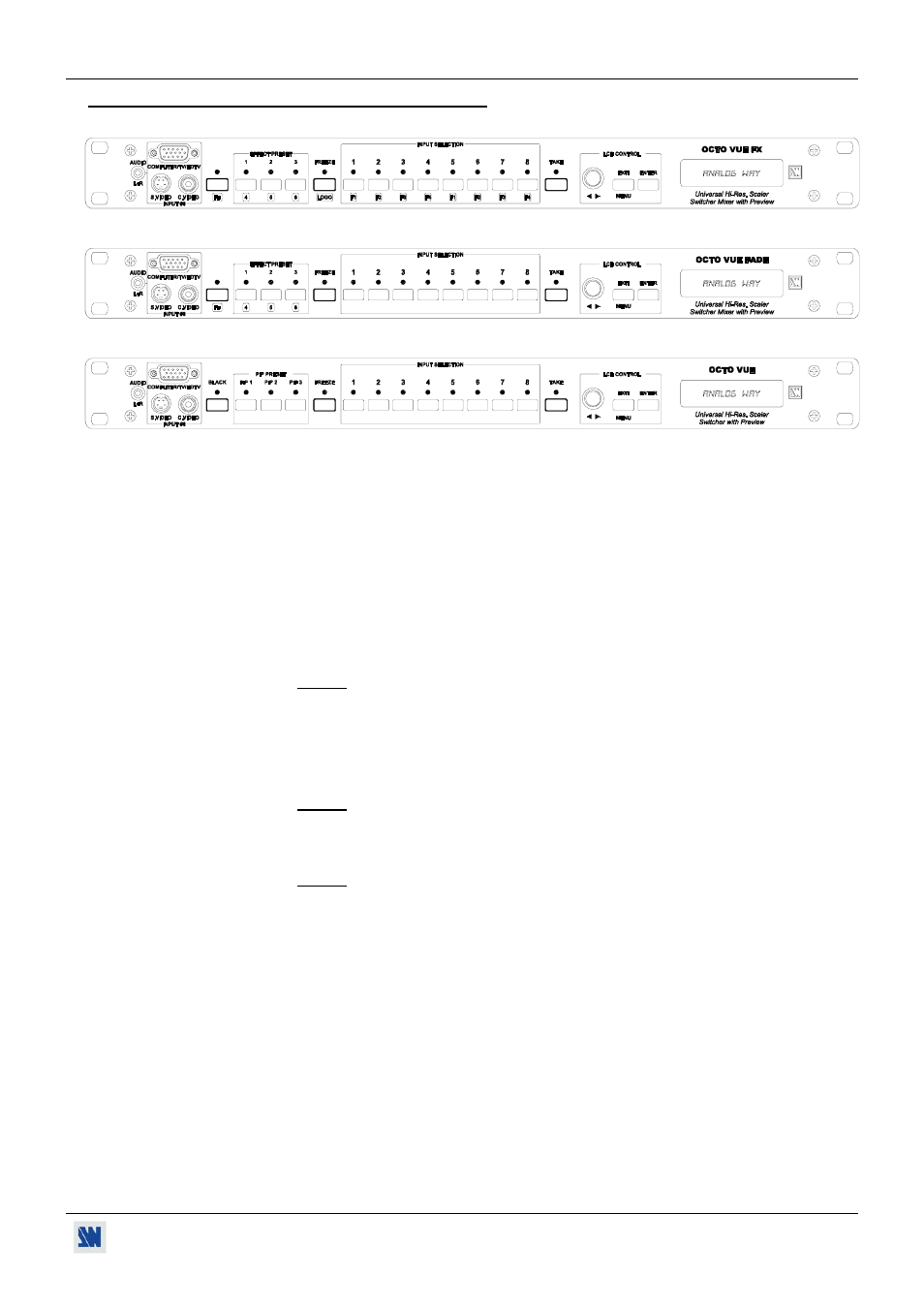

1-6. FRONT PANEL DESCRIPTION OF THE OCTO VUE
• OCTO VUE FX (OVX831)
ANALOG WAY
• OCTO VUE FADE (OVF831)
ANALOG WAY
• OCTO VUE (OVP831)
ANALOG WAY
INPUT #8:
Universal (computer and video) input. This input accepts the following sources:
AUDIO L+R: Audio stereo source on jack 3.5 female connector.
COMPUTER/TV/HDTV: Computer (RGBHV, RGBS or RGsB) or video (SDTV or HDTV) source on a HD15
female connector.
S.VIDEO:
S.VIDEO (Y/C) source on 4-pin mini DIN 4 female connector.
C.VIDEO:
Composite Video (PAL, NTSC...) source on a RCA female connector.
Fn
(OVX831 & OVF831) : Secondary function selection button.
BLACK (OVP831 only) : Allows to display a black screen.
EFFECT PRESET :
Selection of the 6 EFFECT PRESET.
(OVX831 & OVF831) NOTE: Effect preset #4, 5 & 6 can be used only when Fn is activate.
PIP PRESET :
Selection of the 3 PIP PRESET.
(OVP831 only)
FREEZE :
Freeze the main output (the blinking LED indicates the FREEZE is active).
LOGO (OVX831 only) : Allows to display logo onto the Main output.
NOTE: Logo display can be used only when Fn is activate.
INPUT SELECTION:
• Selection of the 8 input sources: 1 to 8.
• Selection of the 4 frames: F1 to F4
(OVX831 only) .
NOTE: -Frame selection can be used only when Fn is activate (LED blinking quickly).
-The pre-selected source (LED blinking slowly) is displayed onto the PREVIEW
output.
-The pre-selected frame (LED blinking quickly) is displayed onto the PREVIEW
output.
-The source/frame displayed onto the MAIN output is indicate by a turn ON
LED.
• On the OVX831 and OVF831, a long push (1 second) on the selected/preselected input
button allows to active the BLACK function. A black screen is displayed onto the
corresponding output. A short push on the same button allows to inactive this function.
TAKE:
Allows to display the pre-selected source onto the Main output with the selected effect.
CONTROL
Allows to scroll thru the different menus (in Control mode).
EXIT – MENU: Switches between Status and Control mode.
ENTER: Validates a selected item.
