Chapter 1 : INTRODUCTION (continued) OCTO VUE / QUATTRO VUE
PAGE 12

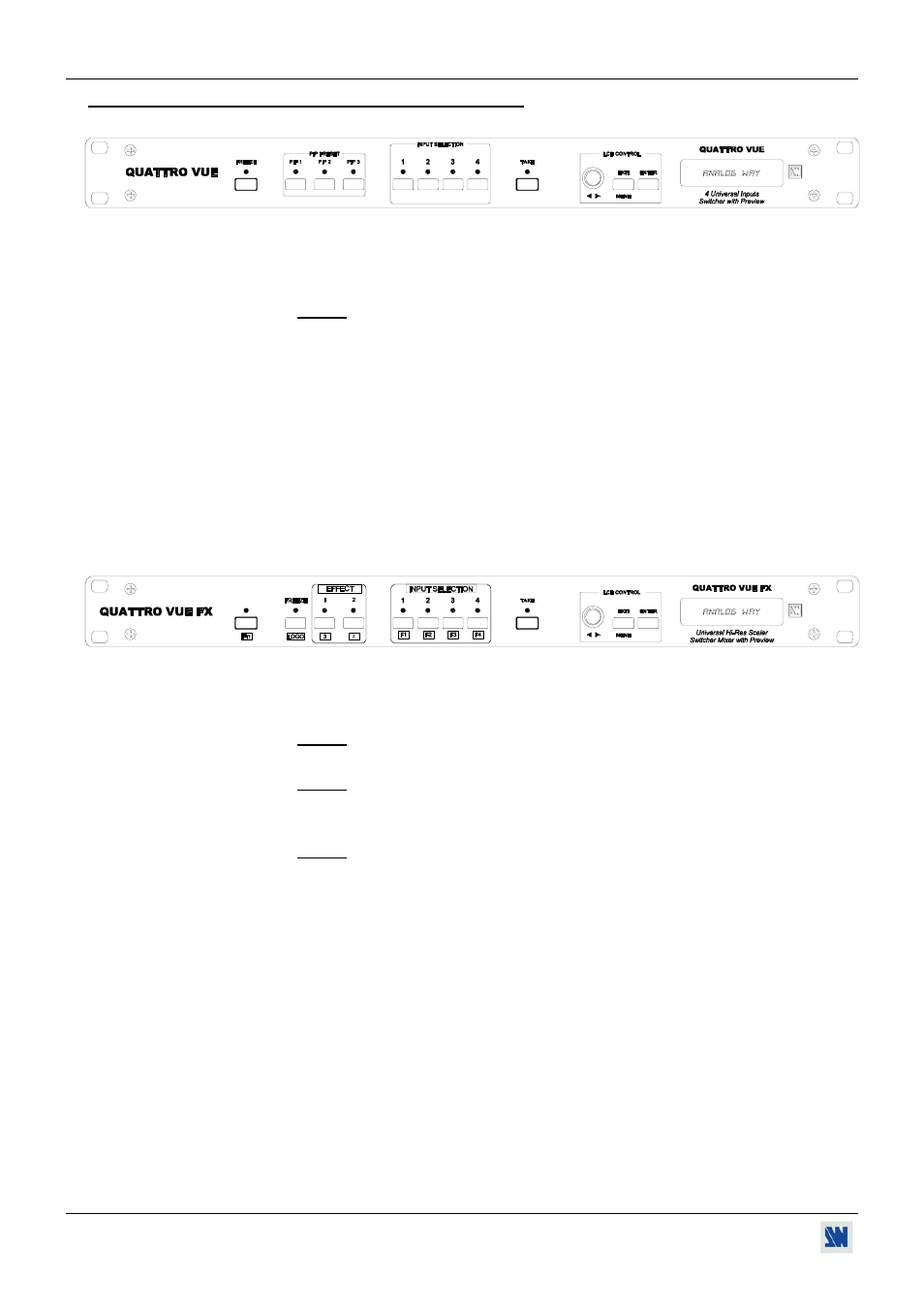

1-7. FRONT PANEL DESCRIPTION OF THE QUATTRO VUE
• QUATTRO VUE (QVP421)
ANALOG WAY
FREEZE :
Freeze the main output (the blinking LED indicates the FREEZE is active).
PIP PRESET :
Selection of the 3 PIP PRESET.
INPUT SELECTION:
• Selection of the 4 input sources: 1 to 4.
NOTE: -The pre-selected source (LED blinking slowly) is displayed onto the PREVIEW
output.
-The source displayed onto the MAIN output is indicate by a turn ON LED.
• A long push (1 second) on the selected/preselected input button allows to active the
BLACK function. A black screen is displayed onto the corresponding output. A short
push on the same button allows to inactive this function.
TAKE:
Allows to display the pre-selected source onto the Main output with the selected effect.
CONTROL
Allows to scroll thru the different menus (in Control mode).
EXIT – MENU: Switches between Status and Control mode.
ENTER: Validates a selected item.
• QUATTRO VUE (QVX421)
ANALOG WAY
Fn:
Secondary function selection button.
FREEZE :
Freeze the main output (the blinking LED indicates the FREEZE is active).
LOGO : Allows to display logo onto the Main output.
NOTE: Logo display can be used only when Fn is activate.
EFFECT :
Selection of the 4 EFFECT PRESET.
NOTE: Effect preset #3 & 4 can be used only when Fn is activate.
INPUT SELECTION:
• Selection of the 4 input sources: 1 to 4.
• Selection of the 4 frames: F1 to F4.
NOTE: -Frame selection can be used only when Fn is activate (LED blinking quickly).
-The pre-selected source (LED blinking slowly) is displayed onto the PREVIEW
output.
-The pre-selected frame (LED blinking quickly) is displayed onto the PREVIEW
output.
-The source/frame displayed onto the MAIN output is indicate by a turn ON
LED.
• A long push (1 second) on the selected/preselected input button allows to active the
BLACK function. A black screen is displayed onto the corresponding output. A short
push on the same button allows to inactive this function.
TAKE: Allows to display the pre-selected source onto the Main output with the selected effect.
CONTROL
Allows to scroll thru the different menus (in Control mode).
EXIT – MENU: Switches between Status and Control mode.
ENTER: Validates a selected item.
