2-6. AUDIO INPUTS (continued)
• MCO male connector (OVX831, OVF831 & OVP831)

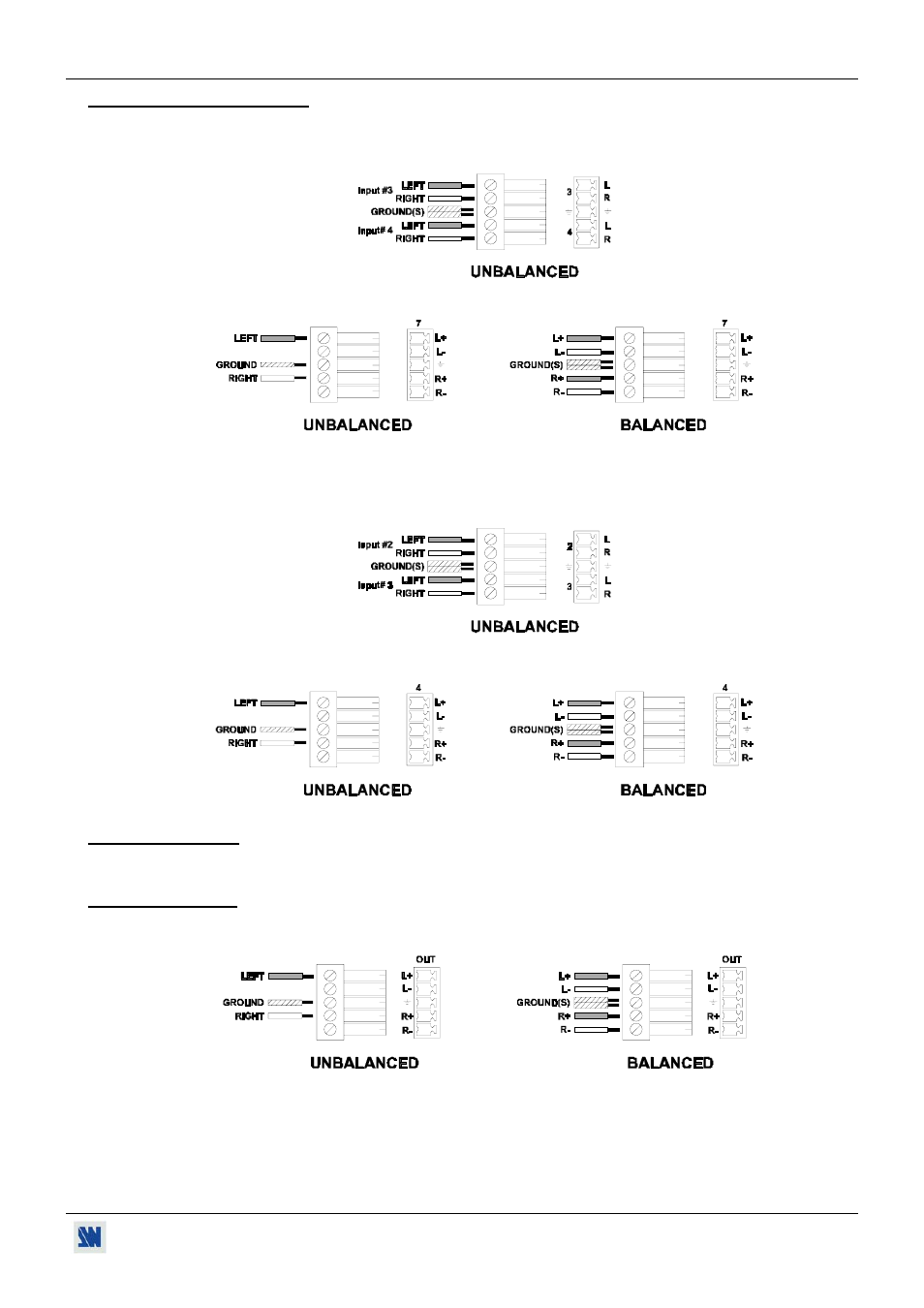

The INPUTS # 3 to 7 & AUX are equipped with this connector. Connect your audio sources as follow:
-Inputs # 3, 4, 5, & 6: Unbalanced connection only.
-Inputs # 7 & AUX: Balanced & unbalanced connection.
• MCO male connector (QVP421 & QVX421)
The INPUTS # 2 to 4 are equipped with this connector. Connect your audio sources as follow:
-Inputs # 2 & 3: Unbalanced connection only.
-Inputs # 4: Balanced & unbalanced connection.
2-7. PRELIST AUDIO
You can connect an unbalanced stereo audio device on the jack 3.5 connectors (for the audio control).
2-8. AUDIO OUTPUT
The audio output is equipped with a 5-pin MCO male connector. This connector allows connecting BALANCED or
UNBALANCED audio systems.
