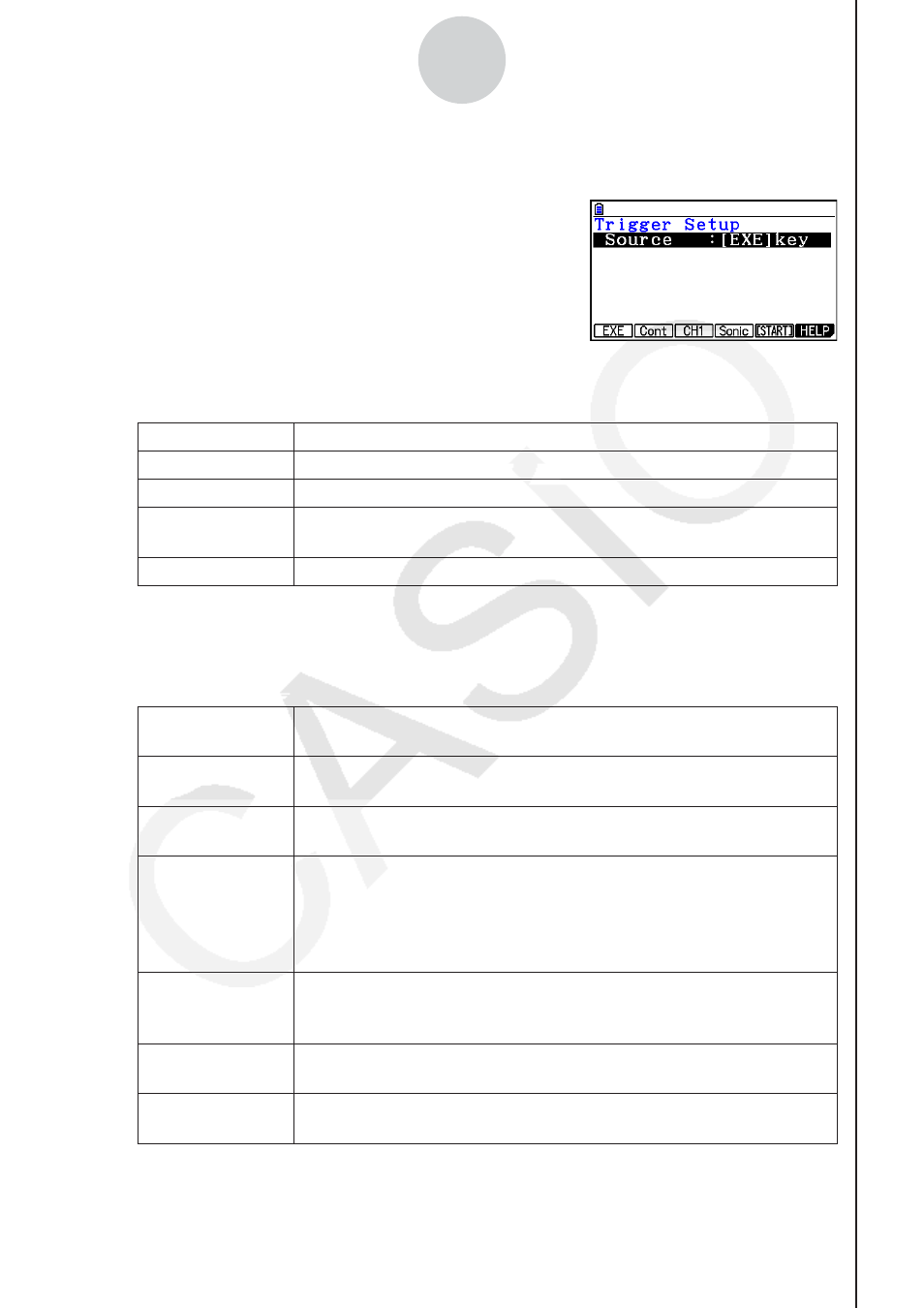

Casio FX-CG10 - Manuel (Page 560)

20100801 20100801
ε
-14
Using Advanced Setup
• To configure Trigger Setup settings
1. While the Advanced Setup menu (page
ε
-8) is on the display, press d(Trigger).
• This displays the Trigger Setup screen with the
“Source” line highlighted.
• The function menu items that appears in the menu
bar depend on the sampling mode selected with
Sample Setup (page
ε
-11). The nearby screen shows
the function menu when “Normal” is selected as the
sample sampling mode.
2. Use the function keys to select the trigger source you want.
• The following shows the trigger sources that can be selected for each sampling mode.
Sampling Mode Trigger Source
Real-time
1(EXE) : [EXE] key, 2(Cont) : Count Down
Fast
1(EXE) : [EXE] key, 2(Cont) : Count Down, 3(CH1), 5(Mic)
Normal
1(EXE) : [EXE] key, 2(Cont) : Count Down, 3(CH1),
4(Sonic), 5([START]) : [START] key
Sound
1(EXE) : [EXE] key, 2(Cont) : Count Down, 5(Mic)
• The trigger source is always “[EXE] key” when the sampling mode is “Extended”, and
“CH1” when the sampling mode is “Clock” or “Period”.
3. Perform one of the following operations, in accordance with the trigger source that was
selected in step 2.
If this is the
trigger source:
Do this next:
[EXE] key
Press
w to finalize Trigger Setup and return to the Advanced
Setup menu.
Count Down
Specify the countdown start time. See “To specify the countdown
start time” below.
CH1
Specify the trigger threshold value and trigger edge direction. See
“To specify the trigger threshold value and trigger edge type” on
page
ε
-15, “To configure trigger threshold, trigger start edge, and
trigger end edge settings” or “To configure PhotoGate trigger start
and end settings” on page
ε
-16.
SONIC
Specify the trigger threshold value and motion sensor level. See
“To specify the trigger threshold value and motion sensor level” on
page
ε
-17.
Mic
Specify microphone sensitivity. See “To specify microphone
sensitivity” on page
ε
-15.
[START] key
Press
w to finalize Trigger Setup and return to the Advanced
Setup menu.
