Using the Setup Wizard
k Outputting the Waveform of a Function through the Speaker
Normally, the Setup Wizard helps you configure setups for sensors connected to the EA-
200. If you select [CASIO] - [Speaker] - [y=f(x)] on the “Select Sensor” screen, however, it
configures the EA-200 to output the sound that corresponds to a function that you input and
graph on the calculator.
• To configure a setup for speaker output
1. Connect the data communication cable (SB-62) to the communication port of the
calculator and the MASTER port of the EA-200.
2. Perform the first two steps of the procedure under “To configure an EA-200 setup using
Setup Wizard” on page
ε
-2.

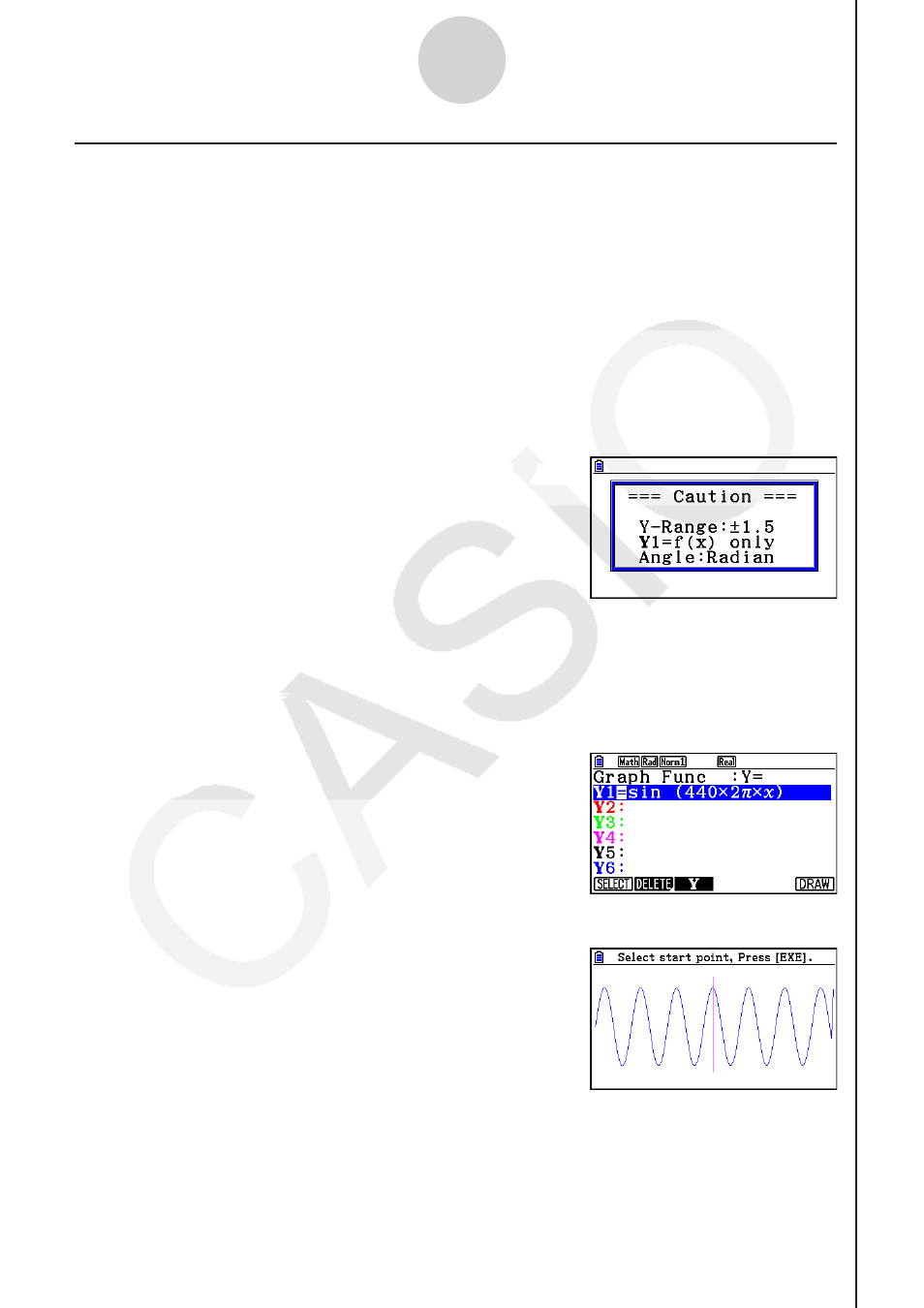

3. On the “Select Sensor” screen, select [CASIO] - [Speaker] - [y=f(x)].
This displays a screen like the one shown nearby.
4. Press
w to advance to the View Window setting screen.
• The following settings are configured automatically: Ymin = –1.5 and Ymax = 1.5. Do
not change these settings.
5. Press
w or J to advance to the graph relation list.
6. In line “Y1”, input the function of the waveform for the sound you want to input.
• Note that the angle unit is always radians.
• Input a function where the value of “Y” is within the
range of –1.5 to +1.5.
7. Press
6(DRAW) to graph the function.
• This graphs the function and displays a vertical
cursor line as shown in the sample display nearby.
Use the graph to specify the range that you want to
output to the speaker.
8. Use the d and e cursor keys to move the cursor to the start point of the output, and
then press
w to register it.
