Chapter 4 : STARTING

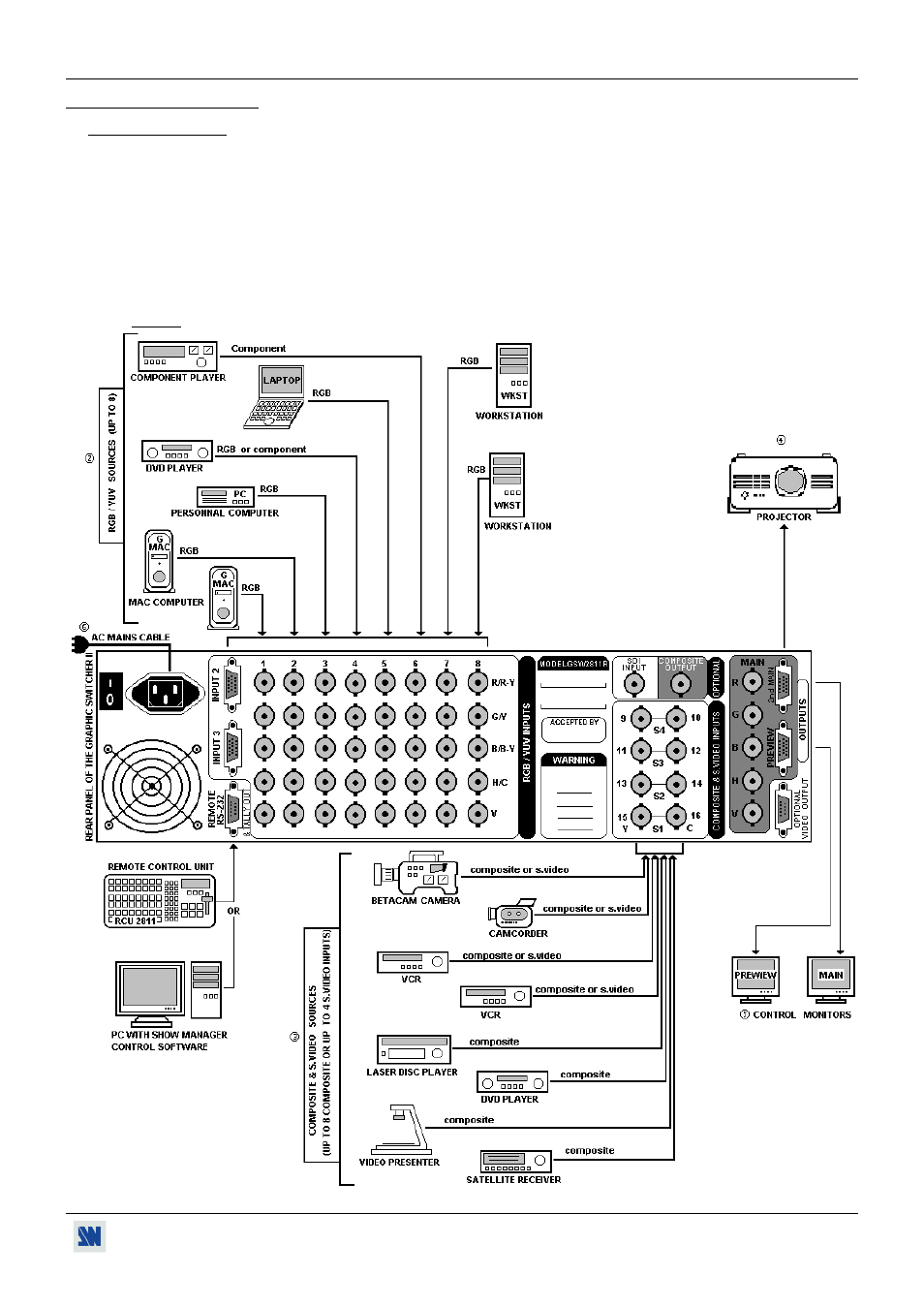

4-1. CONNECTIONS
c Turn OFF all of your equipment before connecting.
d Connect your computers (PC, MAC, workstation), your component and RGBS video sources to the inputs (1 to 8)
of the GSW2811R.
e Connect your COMPOSITE sources to the inputs (9 to 16) and/or your S.VIDEO sources to the inputs (S1 to S4).
f Connect your MAIN display device (data projector, plasma screen...) to the "MAIN" output (BNC (x5) connectors).
g Connect your control monitors to the PREVIEW output and to the 2
nd MAIN output (HD15 connectors).
h Connect the AC power supply cord to the GRAPHIC SWITCHER II ™ and to a power outlet.
i Turn ON the projector, the local monitors, the GRAPHIC SWITCHER II ™ (rear panel switch) and then all of your
input sources.
NOTE: If the output image pixelize, switch OFF and ON the GRAPHIC SWITCHER II
™ .
