GRAPHIC SWITCHER II™ Chapter 9 : CONTROL SOFTWARE (continued)
PAGE 33
9-3. SOFTWARE SET UP (continued)

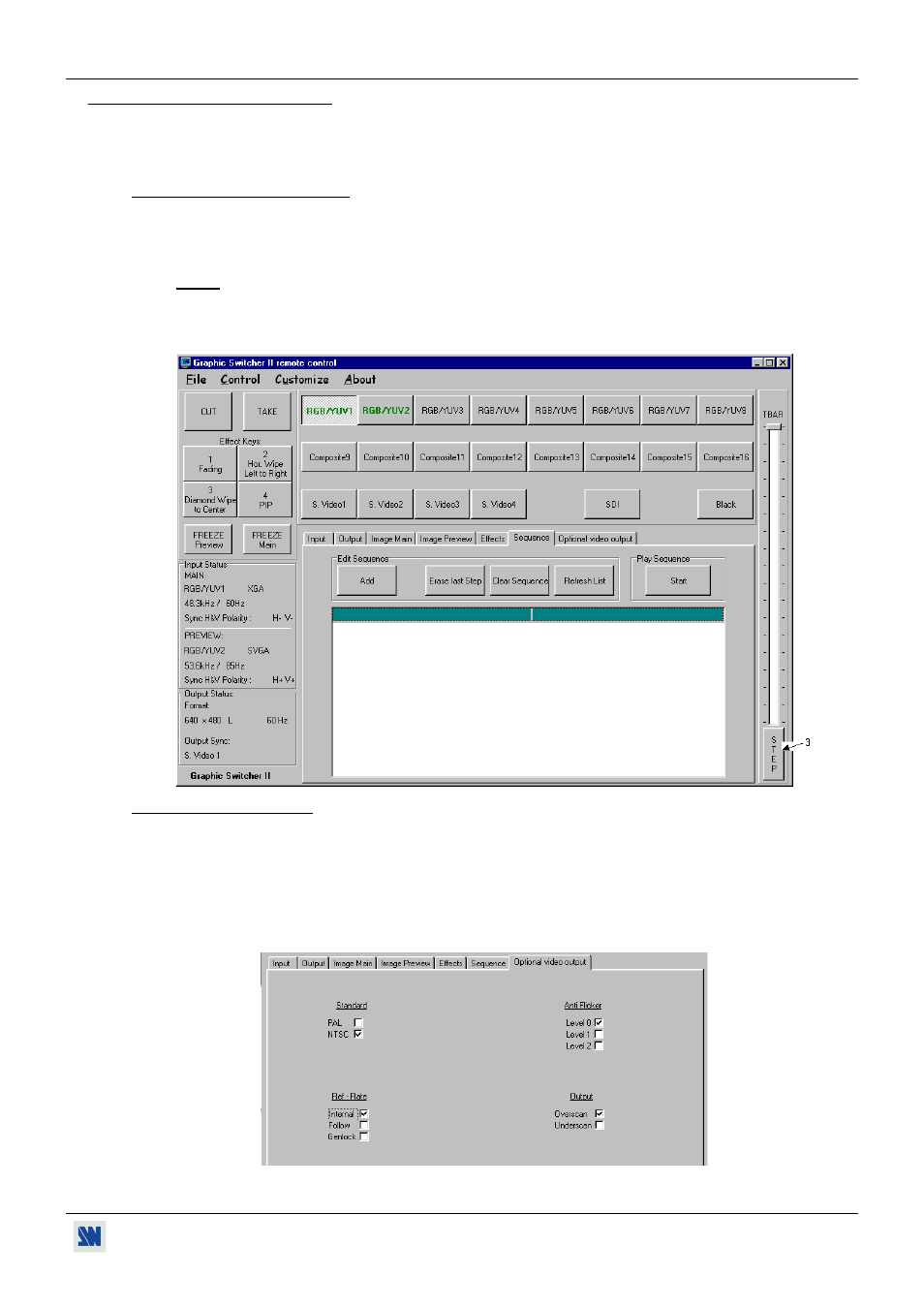

h Sequence menu:
This mode allows programming a sequence of transition. The sequence can also be activated at any time during the
show, and controlled step by step (one step = pre-selection + transition) by one key only: the STEP key.
• TO PROGRAM A SEQUENCE:
1 - Click on Add button in the Edit Sequence section to start the Add step function.
2 - Pre-Select an input source and select a transition (Effects Keys).
3 - Click on STEP button to add the step at the end of your sequence. The transition is displayed onto the MAIN
output and the description of the step is added in the table.
NOTE: For holding effect (i.e. : holding PIP): the first push on STEP allows to activate the effect and a
second push on STEP stops the effect.
4 - Renew the operations 2 and 3 to add new steps on your sequence.
5 - Click on Stop button in the Edit Sequence section to stop the Add Step function.
• TO PLAY A SEQUENCE:
1 - Click on Start button in the Play Sequence section.
2 - Click on STEP button to execute the first transition and pre-select the next source and so on.
3 - Click on Stop button in the Play Sequence section to stop the Play sequence function.
i Optional video output menu. THIS MENU IS AVAILABLE ONLY WITH THE OPTIONAL VIDEO
OUTPUT. The following functions act on the video outputs only (COMPOSITE VIDEO, S.VIDEO and
COMPONENT). See Chapter 7 : menu # 2-8 for the description of these functions.
