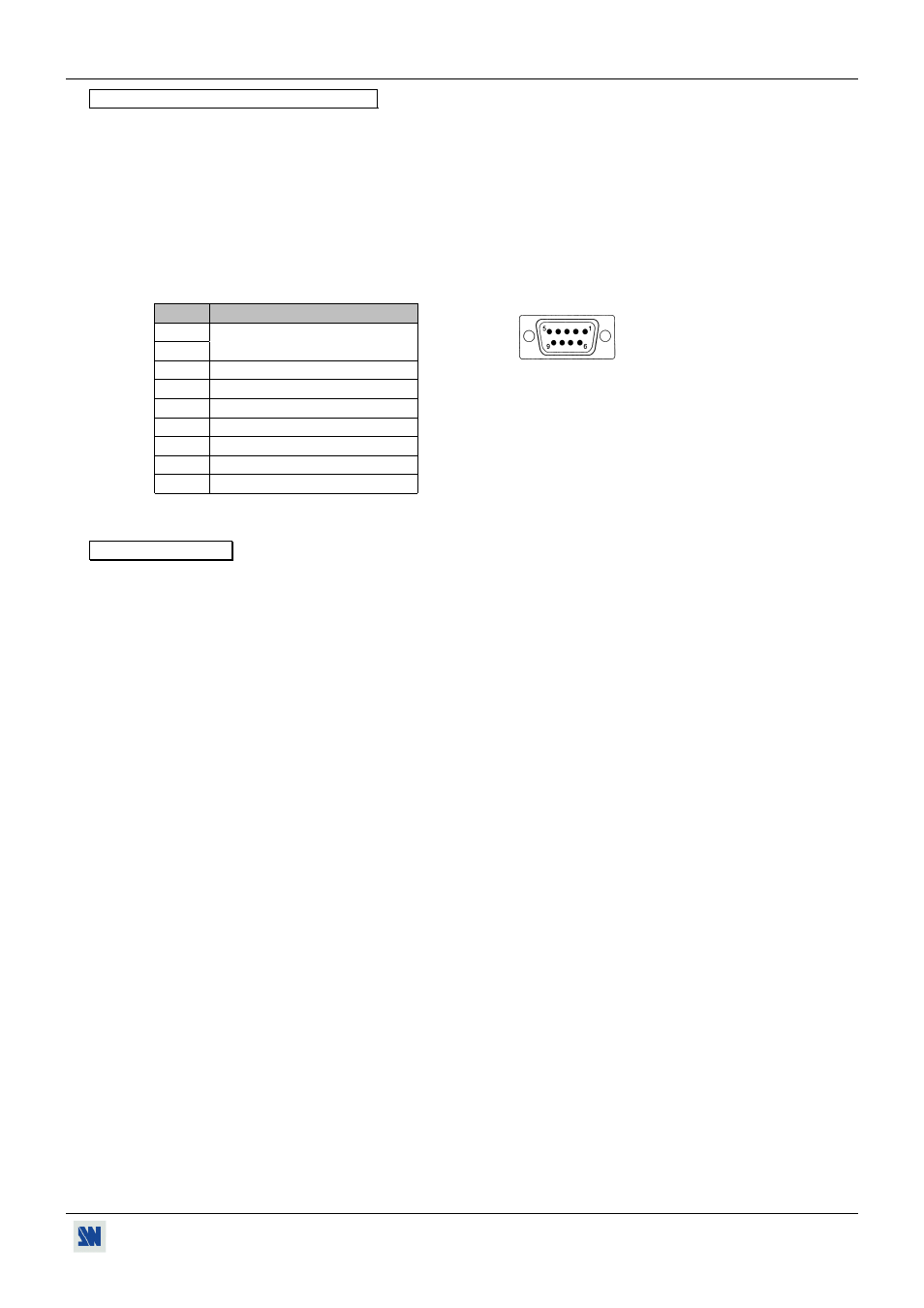

GRAPHIC SWITCHER II™ Chapter 11 : TECHNICAL SPECIFICATIONS (continued)
PAGE 43
OPTIONAL VIDEO OUTPUT (continued)
• Y DR DB (R-Y / Y / B-Y) COMPONENT (on DB9 connector).
15.625 kHz / 50 Hz .... 15.735 kHz / 60 Hz (625L .....525L).
Levels: Y = 1 Vp/p (0.7 V luma + 0.3 V sync).
Dr = 0.7 Vp/p.
Db = 0.7 Vp/p.
Impedance: Y, Dr, Db = 75 ohms.
• DB9 PIN ASSIGNMENT
PIN # FUNCTION
1 RTN
2 (red, green, bleu, genlock)
3 RED (R-Y)
4 GREEN (Y)
5 BLEU (B-Y)
6 Y (S.VIDEO)
7 genlock
8 RTN (Y+C)
9 C (S.VIDEO)
ENVIRONMENTAL
Power Supply: Internal CE / UL / CSA / IEC 950 (130W).
Input : 100VAC to 240VAC ; 50-60Hz ; I = 3A Max.
Storage Temperature: -25 °C to +85 °C (-13 °F to +185 °F).
Operating temperature: 0 °C to 50 °C (32 °F to 122 °F).
Maximum ambient operating temperature: < 40 °C ( < 104 °F).
Hygrometry: 10% to 80% (without condensation).
Dimension: W 480 x D 340 x H 133mm / 19”W x 13.4”D x 5.2”H.
(Compatible with a Standard 19” rack, Height = 3 U).
Weight: 9 kg / 20 lbs. (without option)
9.5 kg / 21 lbs. (with the SDI (-D1) or the OPT-GSW2-VO option).
10 kg / 22 lbs. (with the SDI (-D1) and the OPT-GSW2-VO options).
DB9 Female connector
