Chapter 7 : LCD FUNCTIONS DESCRIPTION (continued) GRAPHIC SWITCHER II™
PAGE 24

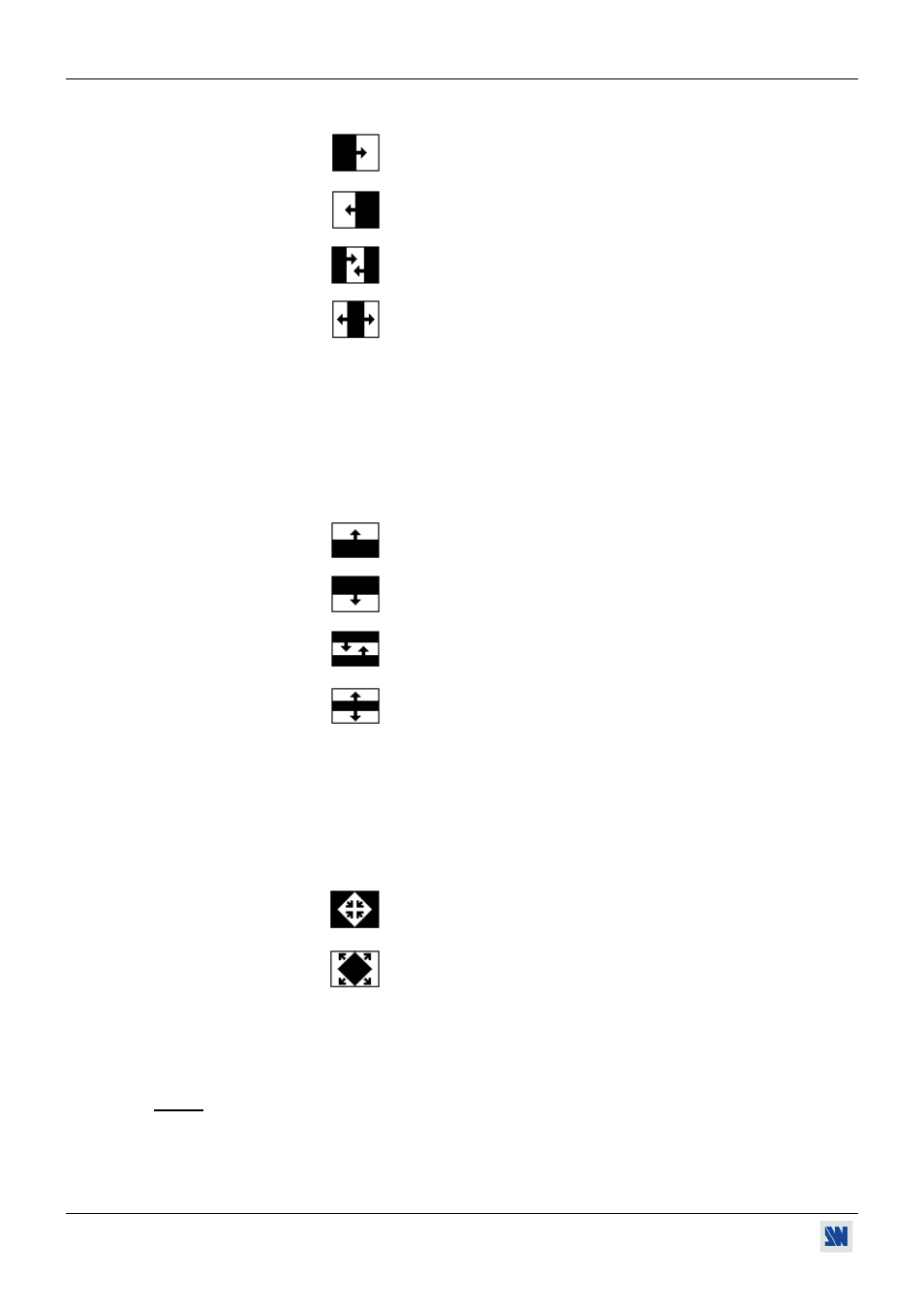

4-x-5 [hor. wipe] = allows to switch the pre-selected input onto the MAIN output with a horizontal wipe effect.
c First select an horizontal wipe effect with  + ENTER between:
• [left to right]
• [right to left]
• [to center]
• [from center]
d Then select the duration of the transition.
• [1s] = 1 second transition.
• [3s] = 3 seconds transition.
• [5s] = 5 seconds transition.
• [custom] = allows to select a duration from 0.5 second up to 25 seconds by 0.5 second step.
4-x-6 [vert wipe] = allows to switch the pre-selected input onto the MAIN output with a vertical wipe effect.
c First select an vertical wipe effect with  + ENTER between:
• [up]
• [down]
• [to center]
• [from center]
d Then select the duration of the transition.
• [1s] = 1 second transition.
• [3s] = 3 seconds transition.
• [5s] = 5 seconds transition.
• [custom] = allows to select a duration from 0.5 second up to 25 seconds by 0.5 second step.
4-x-7 [diamond wipe] = allows to switch the pre-selected input onto the MAIN output with a diamond wipe effect.
c First select a diamond wipe effect with  + ENTER between:
• [to center]
• [from center]
d Then select the duration of the transition.
• [1s] = 1 second transition.
• [3s] = 3 seconds transition.
• [5s] = 5 seconds transition.
• [custom] = allows to select a duration from 0.5 second up to 25 seconds by 0.5 second steps.
NOTE: THIS EFFECT IS NOT AVAILABLE WITH THE ADD-ON-1 UPGRADE.
