Chapter 4 : STARTING (continued) GRAPHIC SWITCHER II™
PAGE 10
4-2. RGB/YUV INPUTS (1 to 8)
The RGB/YUV INPUTS can accept both COMPUTER sources (RGBHV, RGBS, and RGsB (SOG) signals), standard
TV/VIDEO sources (YUV(Component), RGBS (TTL), RGsB (SOG), and RGBS (analog) signals), and HDTV sources
(720p & 1080i with bi-level sync only).

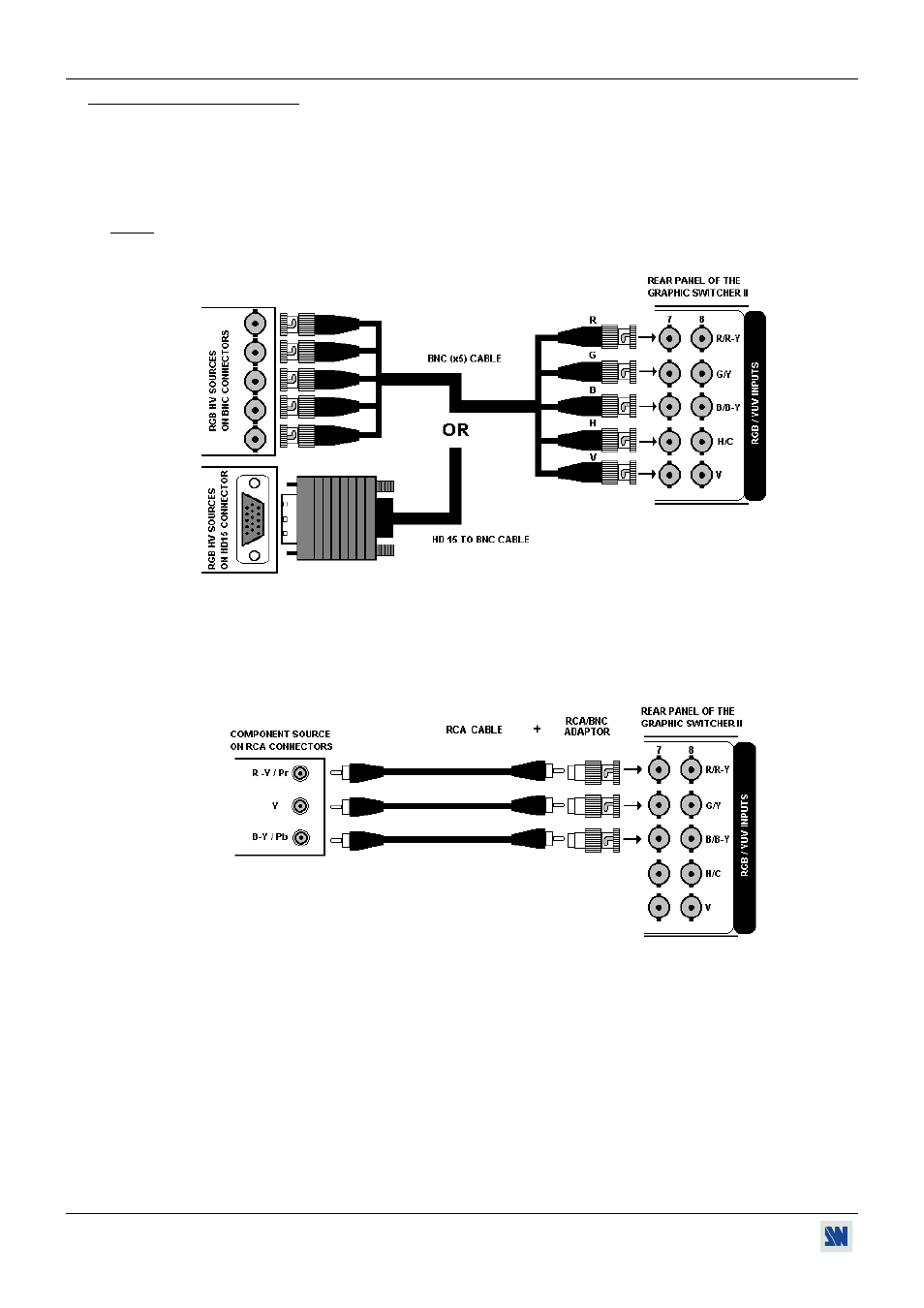

c COMPUTER SOURCES:
Connect your COMPUTERS (PC, MAC, WORKSTATION) with BNC (x5) cables to the RGBHV (#1 to #8) inputs.
NOTE:
• For RGBS signals connect the Sync cable to the H/C BNC connector.
• The Input #2 and #3, are equipped with an additional HD15 connector. You can also connect your computer
source either on the BNC connectors or either on the HD15 connector.
d TV/VIDEO SOURCES:
• COMPONENT VIDEO SIGNAL :
The Component Video signal, also called YUV (Y, R-Y, B-Y) or BETACAM
™ is widely used in broadcasting and
is available on high-quality DVD players. The COMPONENT signal is transmitted with 3 coaxial cables, and also
has a better quality picture than COMPOSITE and S.VIDEO signals. The COMPONENT connectors are usually
RCA (x3), or BNC (x3).
• RGBS VIDEO SIGNAL:
This signal is widely used in broadcasting and is available on European DVD player and Satellite receivers. The
RGB.S signal is transmitted with 4 coaxial cables, and also has a better picture quality than COMPOSITE and
S.VIDEO signals. The RGB.S connectors are usually BNC connectors for Broadcasting equipment, and SCART
connector for DVD players and Satellite Receivers. Connect the RGBS VIDEO signal with BNC cables to the R, G,
B, H/C BNC connectors of the #1 to #8 inputs of the GRAPHIC SWITCHER II
™ .
e HDTV SOURCES:
• 720p & 1080i: The GRAPHIC SWITCHER II ™ accepts the 720p & 1080i HDTV formats with bi-level sync only
(RGBHV). Connect your HDTV signal as a Computer signal. For signals with tri-level sync you may required an
interface (i.e.: TV-HDTV INTERFACE, reference: HDI100).
