GRAPHIC SWITCHER II™
PAGE 16
Chapter 6 : LCD SCREEN DESCRIPTION
6-1. INTRODUCTION
The LCD screen is composed of 2 modes: the STATUS MODE and the CONTROL MODE.
• The STATUS MODE indicates the input and the output status of the GRAPHIC SWITCHER II ™ .
• The CONTROL MODE allows selecting and adjusting the parameters of the GRAPHIC SWITCHER II ™ .
6-2. LCD CONTROL BUTTONS
The LCD screen is controlled by 3 buttons :
 CONTROL knob: To scroll thru the different menus.
EXIT MENU button: • From the STATUS MODE, press on this button to display the CONTROL MODE.
• From the CONTROL MODE, press on this button to:
- return to the previous menu,
- return to the STATUS MODE (press several times),
- return without safeguarding the item.
ENTER button : • From the STATUS MODE, press on this button to return to the previous consulted menu.
• From the CONTROL MODE, press on this button to confirm a selected item.
NOTE: When entering in the CONTROL MODE, the LCD window will automatically display the STATUS MODE
after 60 seconds of inactivity of the front panel buttons.

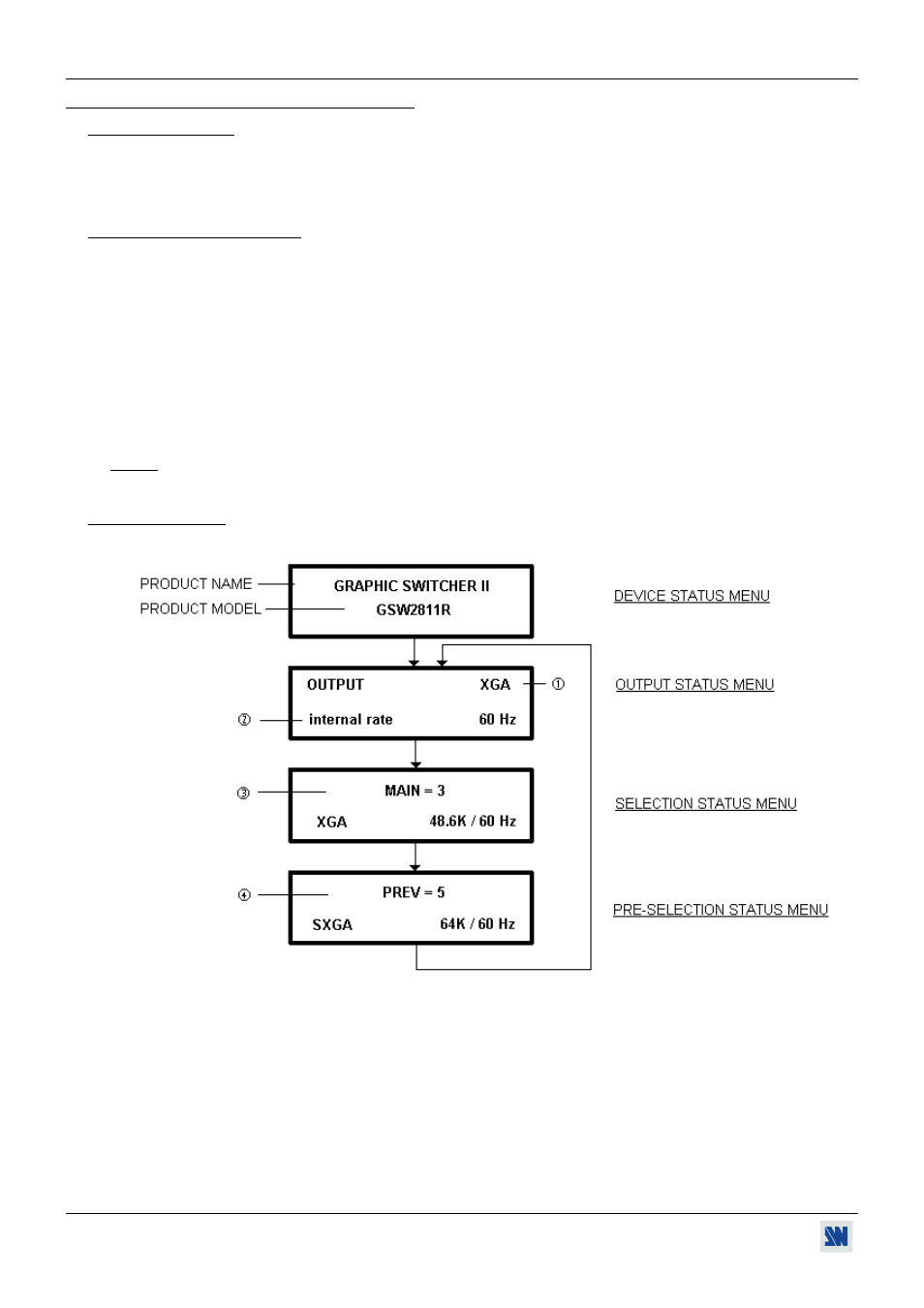

6-3. STATUS MODE
When switching the GRAPHIC SWITCHER II ™ ON, the LCD screen displays the product's name and status as follows:
c OUTPUT FORMAT
d OUTPUT RATE
• [internal rate] or [input # rate].
• [60Hz] = output frame frequency.
e SELECTED INPUT
• [MAIN = 3] = number of the selected input.
• [XGA] = input format.
• [48.6K/60Hz] = line frequency / frame frequency.
f PRE-SELECTED INPUT
• [PREV = 5] = number of the pre selected input.
