WARNING
Electrical Shock Hazard
Make sure your electrical receptacle has the
same configuration as your air conditioner’s
plug. If different, consult a Licensed Electrician.
Do not use plug adapters.
Do not use an extension cord.
Do not remove ground prong.
Always plug into a grounded 3 prong outlet.
Failure to follow these instructions can result
in death, fire, or electrical shock.
Make sure the wiring is adequate for your unit.
If you have fuses, they should be of the time delay type. Before you
install or relocate this unit, be sure that the amperage rating of the
circuit breaker or time delay fuse does not exceed the amp rating
listed in Table 1.
DO NOT use an extension cord.
The cord provided will carry the proper amount of electrical power to
the unit; an extension cord may not.
Make sure that the receptacle is compatible with the air
conditioner cord plug provided.
Proper grounding must be maintained at all times. Two prong receptacles
must be replaced with a grounded receptacle by a certified electrician.
The grounded receptacle should meet all national and local codes
and ordinances. You must use the three prong plug furnished with
the air conditioner. Under no circumstances should you remove the
ground prong from the plug.
Test the power cord.
All Friedrich room air conditioners are shipped from the factory with
a Leakage Current Detection Interrupter (LCDI) equipped power
cord. The LCDI device on the end of the cord meets the UL and NEC
requirements for cord connected air conditioners.
To test your power supply cord:
1. Plug power supply cord into a grounded 3 prong outlet.
2. Press RESET (see Figure 1).
3. Press TEST, listen for click; the RESET button trips and pops out.
4. Press and release RESET (Listen for click; RESET button latches and
remains in). The power cord is ready for use.

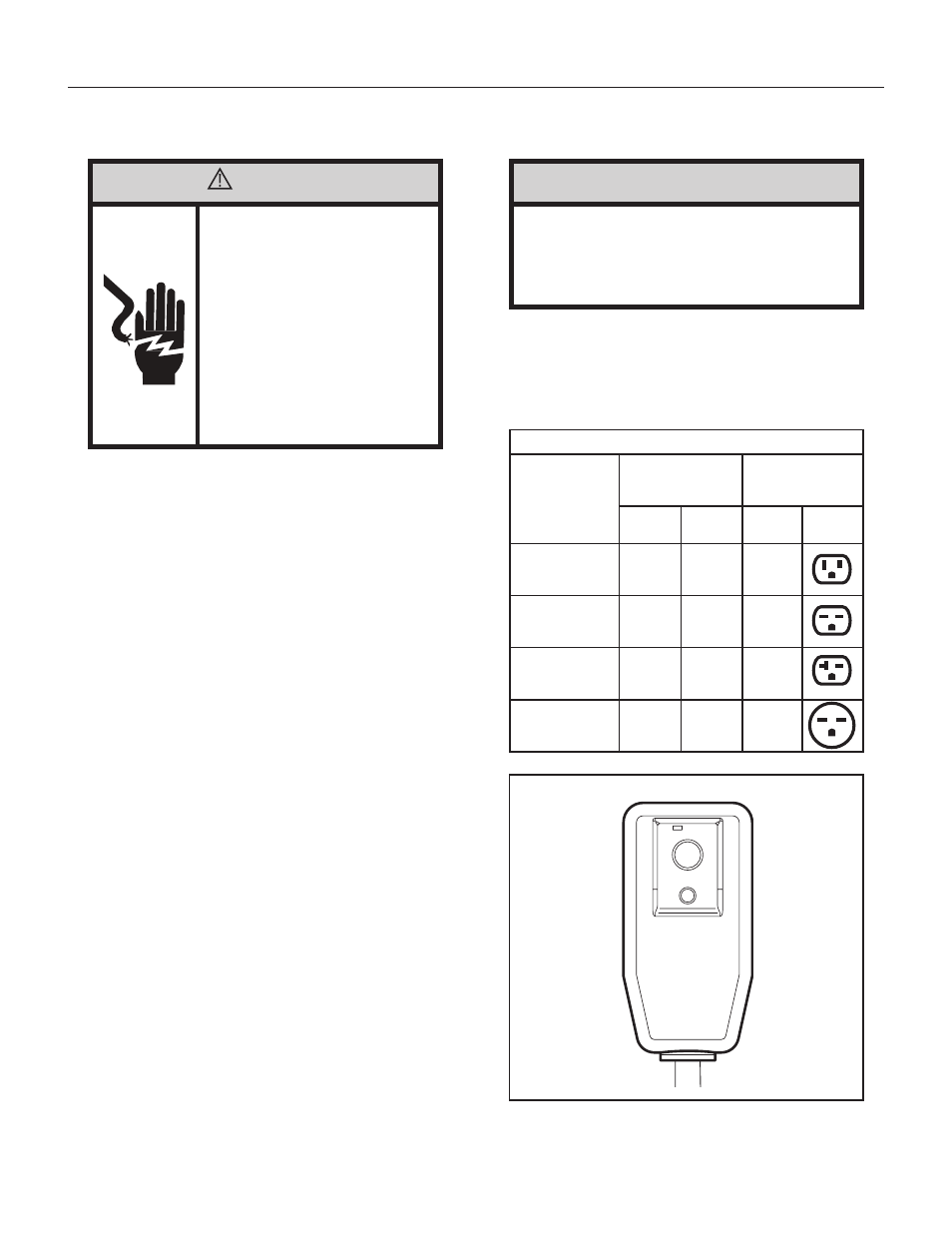

WARNING: Before Operating Your Unit
Figure 1
FRR072
WARNING:
TEST BEFORE EACH USE!
1 . PRESS REST BUTTON .
2 . PLUG LCDI INTO POWER
RECEPTACLE .
3 . PRESS TEST BUTTON,
RESET BUTTON SHOULD
POP UP .
4 . PRESS RESET BUTTON
FOR USE .
DO NOT USE IF ABOVE
TEST FAILS .
WHEN GREEN LIGHT
IS ON, IT IS WORKING
PROPERLY!
TEST
RESET
Once plugged in, the unit will operate normally without the need to
reset the LCDI device. If the LCDI device fails to trip when tested
or if the power supply cord is damaged, it must be replaced with a
new power supply cord from the manufacturer. Contact our Technical
Assistance Line at (800) 541-6645. To expedite service, please have
your model number available.
Table 1
MODEL
CIRCUIT RATING
OR TIME DELAY
FUSE
REQUIRED
WALL
RECEPTACLE
AMP VOLT
NEMA
NO.
KCS08, KCS10
KCS12, KCS14
KHS10
15 125 5-15R
KCS12, KCS16
KCM18, KCM21
KCL22
15 250 6-15R
KCM24, KCL28
KES12, KES16
KHS12, KCL24
20 250 6-20R
KCL36, KEM18
KEM24, KEL36
KHM18, KHL24
30 250 6-30R
NOTICE
Do not use the LCDI device as an ON/OFF switch.
Failure to adhere to this precaution may cause
premature equipment malfunction.
