36
37
A
A

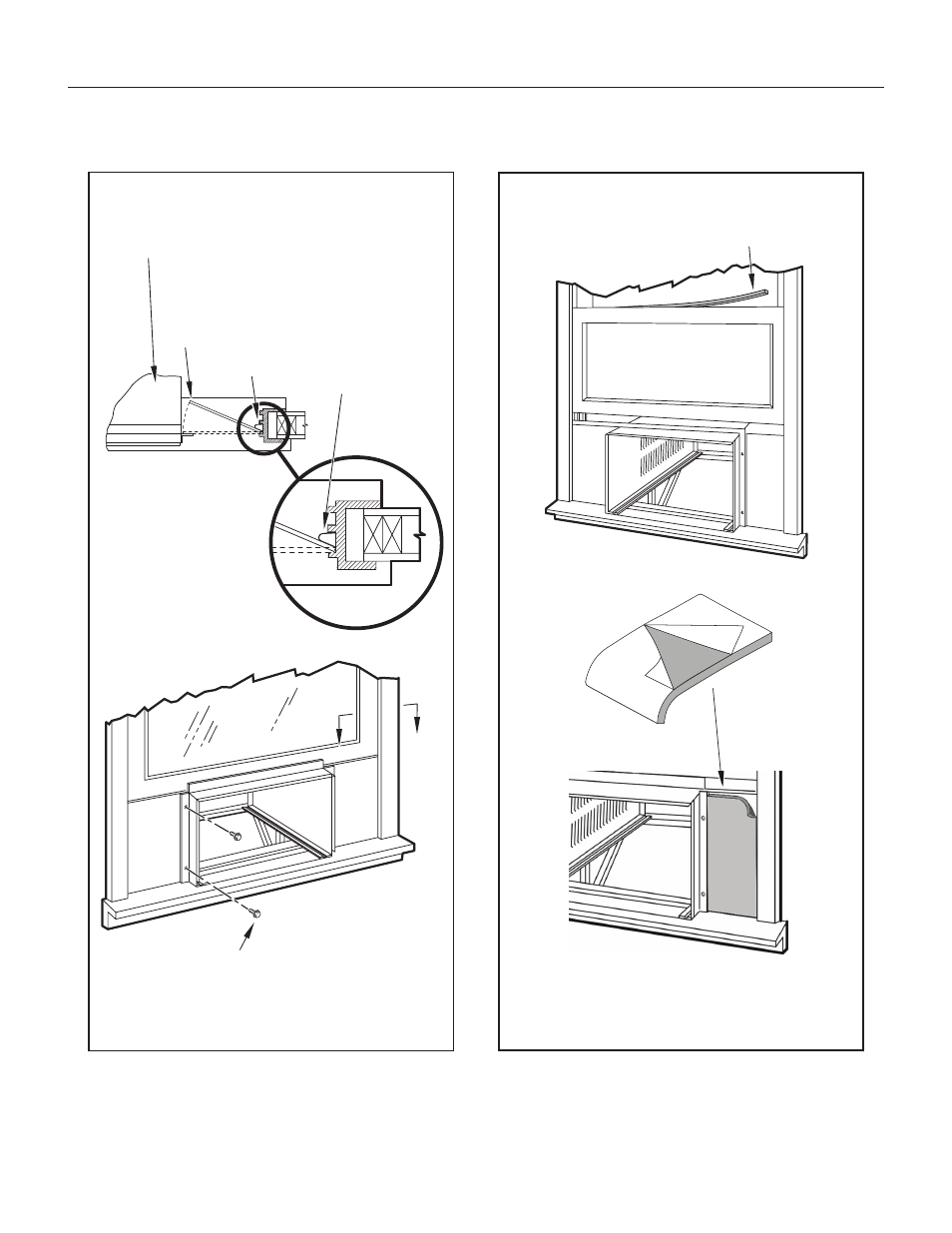

WINDOW JAM
TOP OF CABINET
PLACE WINGBOARD PANEL IN WINDOW JAM
TO COMPRESS THE SPRINGS INSIDE THE
RUNNERS, AND SWING THE WINGBOARD
PANELS INTO PLACE AS INDICATED BY THE
DASHED LINES.
CLIP (ITEM 10)
SECTION A-A
SECURE THE SIDE WINGBOARD PANELS TO
THE SIDE ANGLES WITH FOUR (4) #8 x
1
/
2
" LONG
SCREWS (ITEM 11), TWO ON EACH SIDE.
Figure 66
FRR022
Figure 67
Standard Window Installation continued
SECTION B-B
C
B
A
INSERT FOAM WINDOW
SEAL GASKET (ITEM 12)
FRR023
