Standard window installation continued – Friedrich Kuhl Series 28000 BTU Window Air Conditioner Installation and Operation Manual Manuel d'utilisation
Page 31
Advertising
30
31

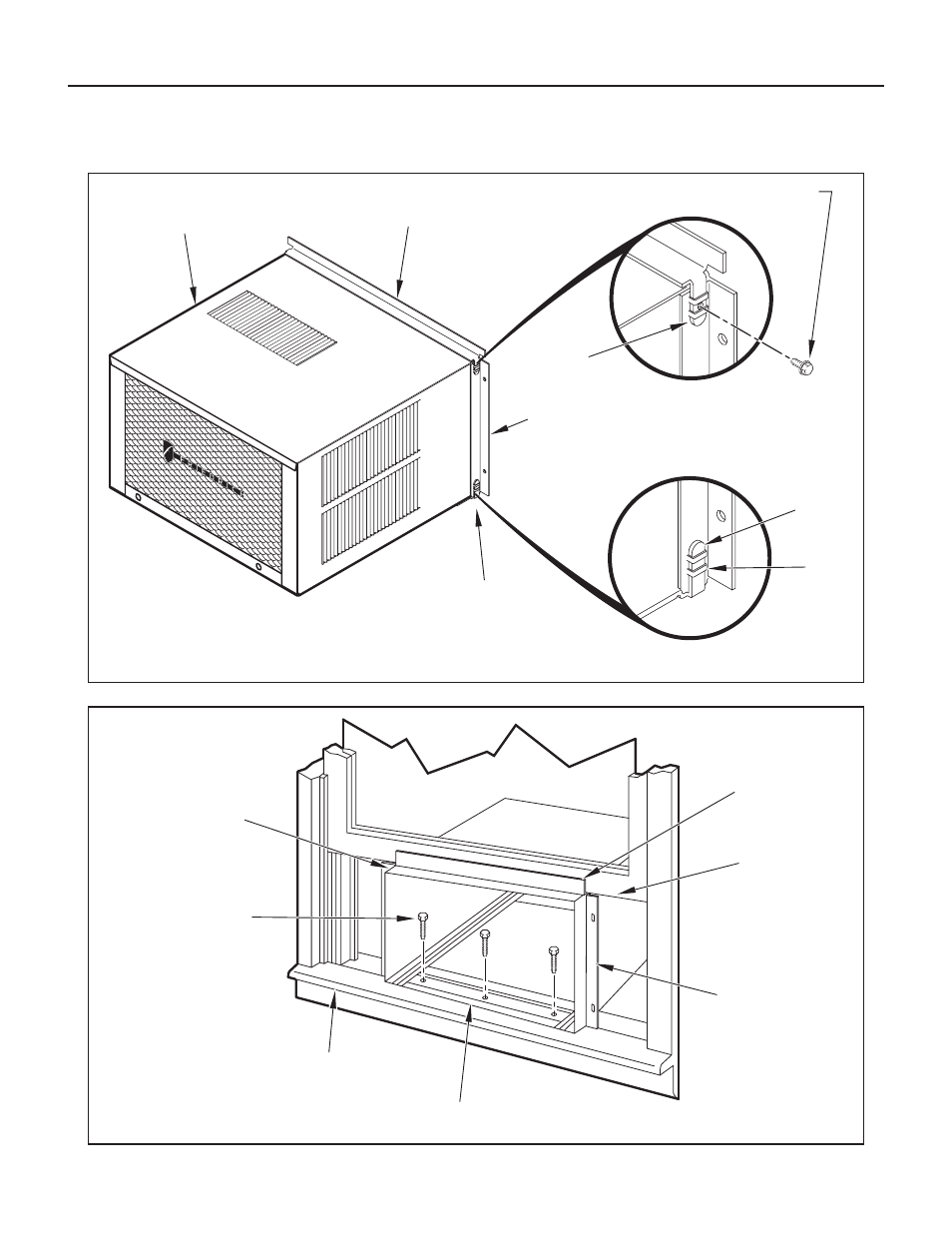

Figure 57
FRR013
Figure 58
FRR014
Standard Window Installation continued
CABINET
TOP ANGLE (ITEM 5)
SILL PLATE
TAB
#8 x
3
/
8
″ LONG SCREW
(ITEM 7) 2 REQUIRED
TAB
SIDE ANGLE
(ITEM 6)
2 REQUIRED
DETAIL B-2
DETAIL B-1
TAB
LOOP
CENTER
CABINET
IN WINDOW
SIDE TO SIDE
DRILL (3)
5
/
32
″ DIA.
PILOT HOLES AND
INSTALL (3) #12 x 2″
LONG SCREWS
(ITEM 4)
WINDOW SILL
LOCATE SILL PLATE GUIDE CHANNEL
JUST BACK OF WINDOW SILL
TOP ANGLE
(ITEM 5)
PULL WINDOW
SASH DOWN
BEHIND TOP
ANGLE
SIDE ANGLE
(ITEM 6)
