Source de courant – Hypertherm HPR260 Manual Gas Manuel d'utilisation
Page 181
HPR260 gaz manuel
Mode d’emploi
6-5
4

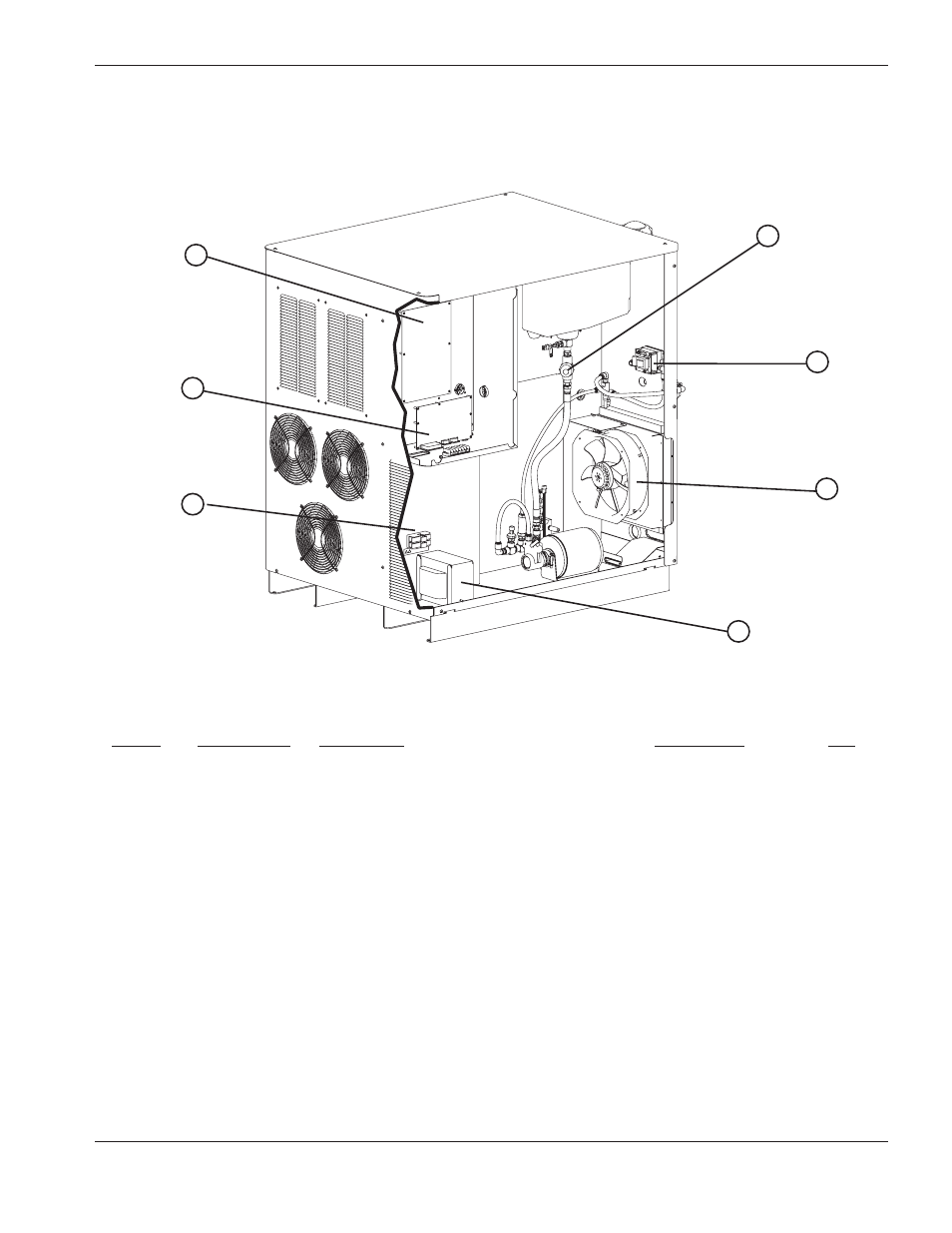

NOMENCLATURE DES PIÈCES
Numéro
Article
de référence
Description
Désignation
Qté
1
008551*
Fuse : 7.5 amp, 600 volt
F1, F2
2
008709**
Fuse : 20 amp, 500 volt
F1, F2
2
2
041909
Control PCB
PCB3
1
3
041802
Power distribution PCB
PCB2
1
4
027926
Filter assembly : 1/2" NPT low profile
1
5
129793
Flow switch assembly
FLS
1
6
229066
Heat exchanger assembly
1
7
129786
Control transformer : 200/208 volt, 50-60 HZ
T2
1
229117
Control transformer : 220 volt, 50-60 HZ
1
129966
Control transformer : 240 volt, 60 HZ
1
129787
Control transformer : 380/400 volt, 50-60 HZ
1
229013
Control transformer : 440 volt, 50-60 HZ
1
129967
Control transformer : 480 volt, 50-60 HZ
1
129989
Control transformer : 600 volt, 50-60 HZ
1
*Source de courant 380, 400, 440, 480 et 600 V
**Source de courant 200/208, 220 et 240 V
Source de courant
1
2
3
4
5
6
7
