6-4
HPR260 gaz manuel
Mode d’emploi
4

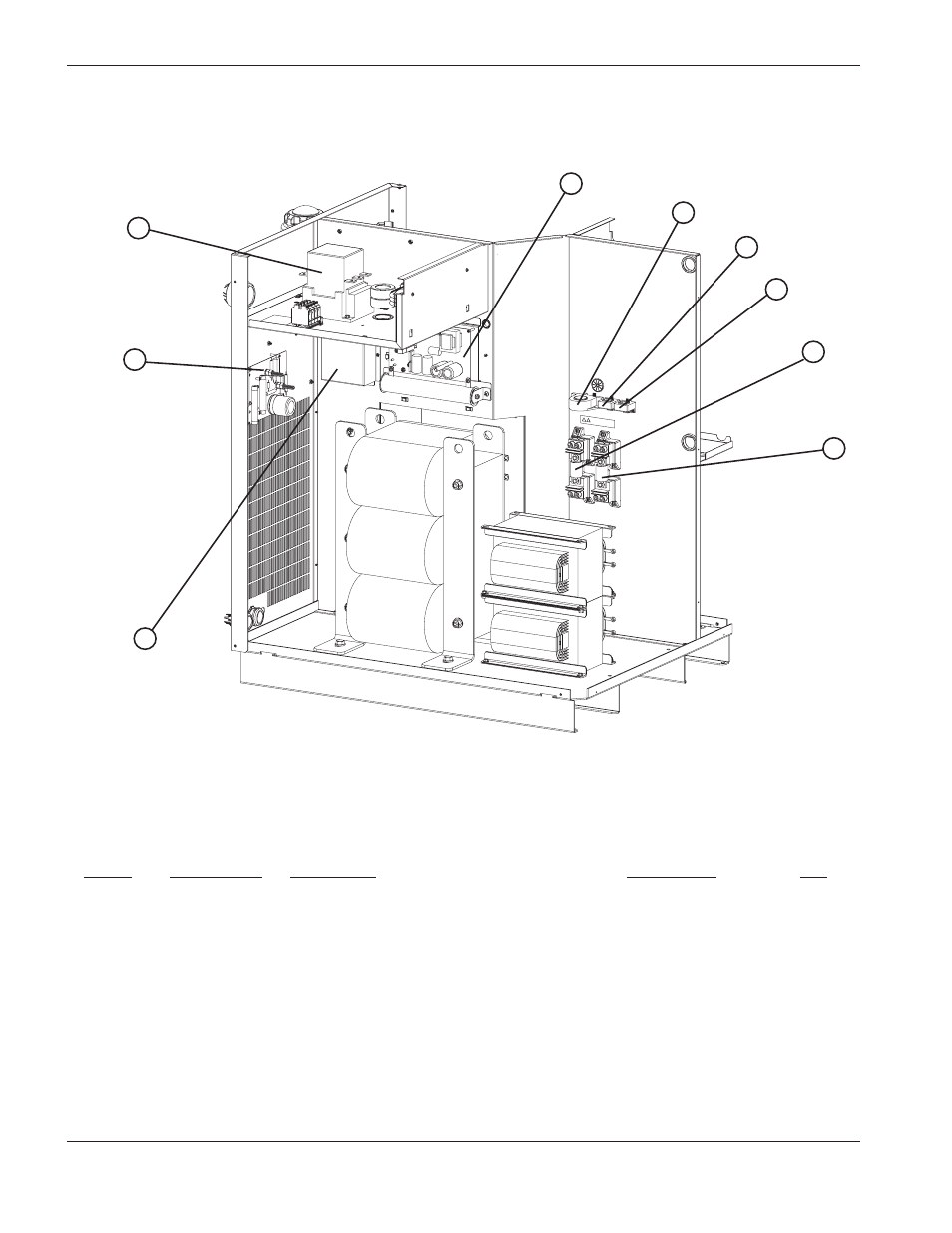

NOMENCLATURE DES PIÈCES
Source de courant
Numéro
Article
de référence
Description
Désignation
Qté
1
003149
Relay : pilot arc, 120 VAC
CR1
1
2
041837
PCB : I/O
PCB6
1
3
003217
Contactor
CON1
1
4
129791
Start circuit assembly
PCB1
1
5
109483
Current sensor : hall 200 amp, 4 volt
CS3
1
6a
109004
Current sensor : hall 100 amp, 4 volt
CS2
1
6b
109004
Current sensor : hall 100 amp, 4 volt
CS1
1
7a
108263
Fuse : 175 amp, 250 volt
F3
1
7b
108263
Fuse : 175 amp, 250 volt
F4
1
3
4
5
1
2
7a
6a
6b
7b
