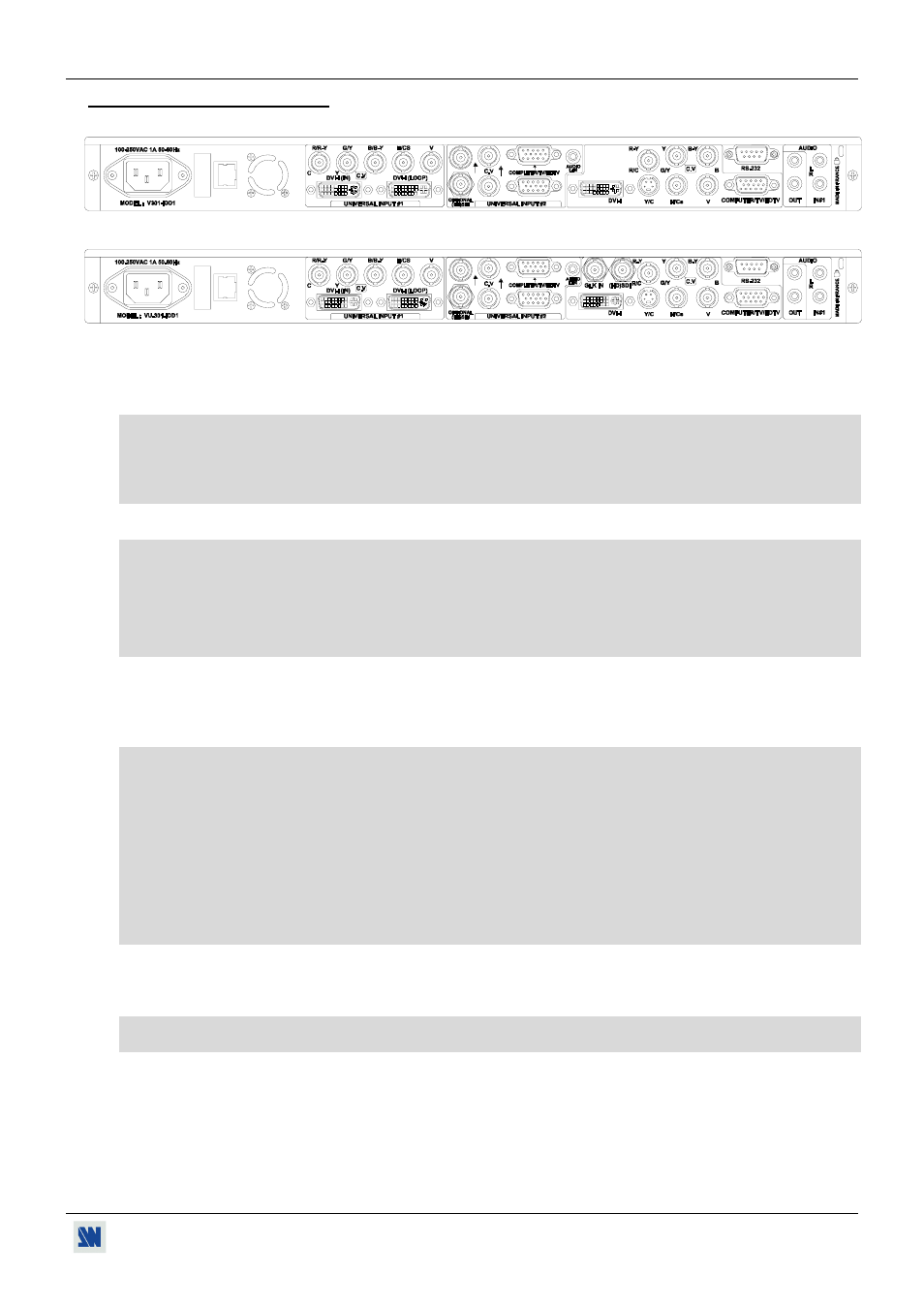

1-6. REAR PANEL DESCRIPTION
• REAR PANEL OF THE VIO1600
S
/N
IP/LA
N
OUTPUTS
• REAR PANEL OF THE ULTRA VIO
S/
N
IP
/LA
N
OU
T
P
U
T
S
POWER:
Standard IEC connector (100-250 VAC, 1A, 50-60Hz automatic).
IP/LAN:
LAN communication port on a RJ45 connector (optional).
UNIVERSAL INPUT #1:
Universal (computer and video) input. This input accepts the following sources:
DVI-I (IN):
Computer (analog or digital) source on a DVI-I female connector.
RGBHV:
Computer (RGBHV, RGBS or RGsB) source, Component (SDTV or HDTV) source,
S.VIDEO (Y/C) source or Composite Video source on BNC female connectors.
DVI-I (LOOP):
Universal loopthrough.
UNIVERSAL INPUT #2:
Universal (computer and video) input. This input accepts the following sources:
COMPUTER/TV/HDTV: Computer or video source with loopthrough on a HD15 female connector.
C.V:
Composite Video source with loopthrough on a BNC female connector.
(HD)SDI:
SDI or HDSDI source with loopthrough on a BNC female connector (V301-ID1
&VU301-IOD1 versions only).
AUDIO L+R:
Audio stereo input on a jack 3.5 connector.
GLK IN (ULTRA VIO only): Analog genlock input.
OUTPUTS:
Universal (computer and video) outputs. Connect to this output one of the following
display devices:
DVI-I:
Computer (digital) display device on a DVI-I female connector.
Y/C:
S.VIDEO (Y/C) display device on a 4-pin mini DIN female connector.
RGBHV:
Computer (RGBHV, RGBS or RGsB) display device, Component (SDTV or HDTV)
display device, S.VIDEO (Y/C) display device or Composite Video display device on
BNC female connectors.
COMPUTER/TV/HDTV: Computer (RGBHV, RGBS or RGsB) display device, Component (SDTV or HDTV)
display device, S.VIDEO (Y/C) display device or Composite Video display device on a
HD15 female connector.
(HD)SDI:
SDI or HDSDI display device on a BNC female connector (ULTRA VIO only).
RS-232:
RS-232 communication port on a DB9 female connector.
AUDIO:
OUT:
Audio stereo output on 2xRCA female connectors.
IN:
Audio stereo input #1 on 2xRCA female connectors.
