Chapter 1 : INTRODUCTION (continued) VIO1600 & ULTRA VIO
PAGE 8
1-4. INSTALLATION
IMPORTANT: Please read all the safety instructions (pages 2 to 4) before starting.
• Table Top Mounting: The device can be used directly on a table: the unit is equipped with 4 plastic feet.
• Rack Mounting:
The device is compatible with a 19" enclosure (optional rack mount kit: OPT-RMK1). To
install the device into a 19” rack: Attach the rack mount brackets to the side of the device with
the 6 supplied screws. Then attach the device to the rack by using 4 screws in the front panel
holes (screws are not included). Connect all of the cables to the device and attach them to the
rack with some tie wraps.
IMPORTANT: • The openings in the rear and side panels are for cooling. Do not cover these openings.
• Be sure that no weight is added to the device in excess of 2 kg (4.4 lbs.).
• The maximum ambient operating temperature must not exceed 40°C (104°F).
• The rack and all mounted equipment in it must be reliably grounded to national and
local electrical codes.

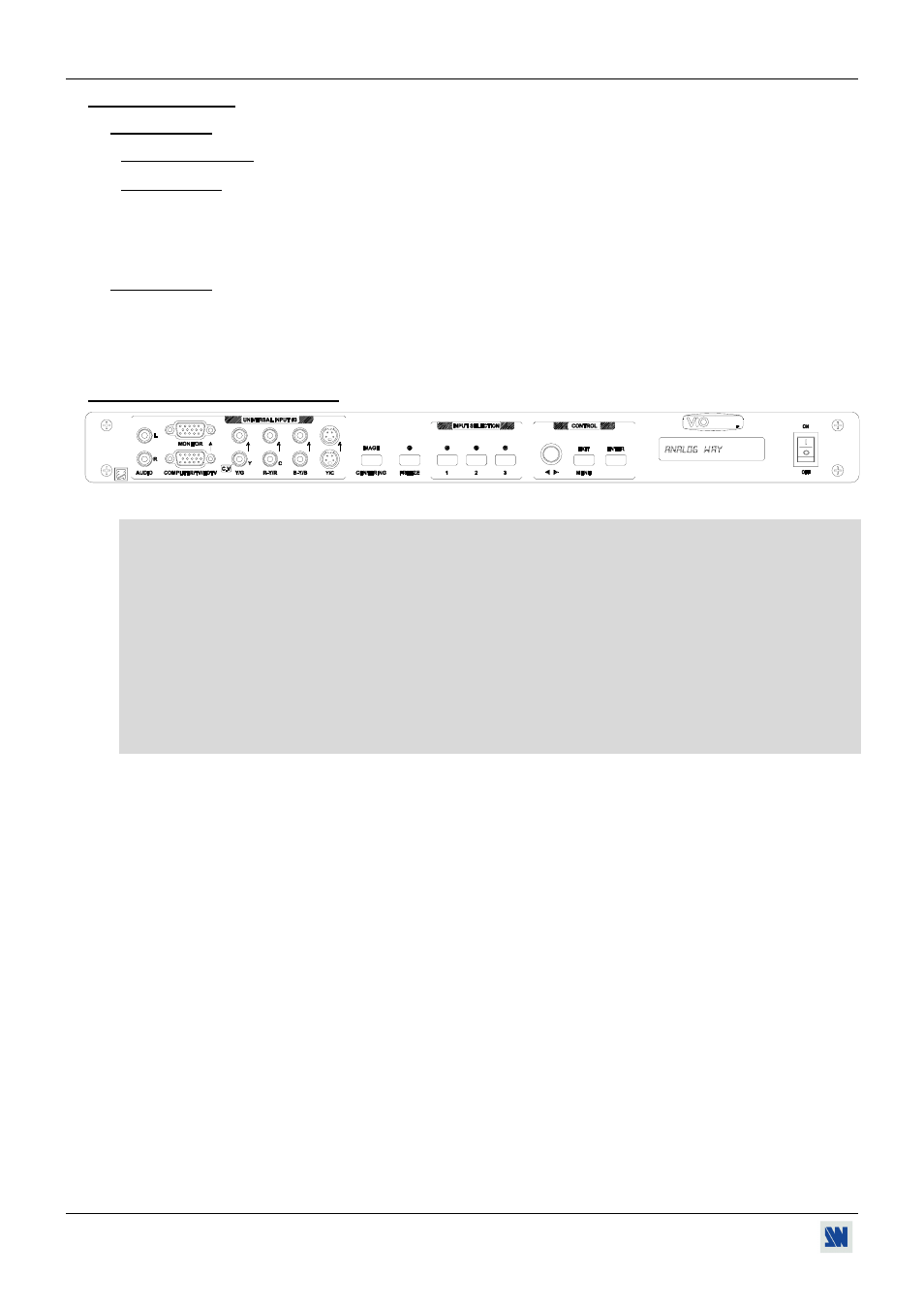

1-5. FRONT PANEL DESCRIPTION
ANALOG WAY
1600
Versatile Converter
UNIVERSAL INPUT #3: Universal (computer and video) input. This input accepts the following sources:
AUDIO L+R: Audio stereo source on 2xRCA connectors.
COMPUTER/TV/HDTV: Computer (RGBHV, RGBS or RGsB) or video (SDTV or HDTV) source with
loopthrough on a HD15 female connector.
Y / R-Y / B-Y: Component (SDTV or HDTV) sources with loopthrough on 3xRCA female connectors.
R / G / B: RGB video source with loopthrough on 3xRCA female connectors.
Y/C: S.VIDEO (Y/C) source with loopthrough on 2xRCA female connector or on a 4-pin mini
DIN connector.
C.V: Composite Video (PAL, NTSC...) source with loopthrough on a RCA female connector.
RGBHV: Computer (RGBHV, RGBS or RGsB) sources, Component (SDTV or HDTV) sources,
S.VIDEO (Y/C) source, Composite Video source on BNC female connectors.
IMAGE CENTERING:
Adjust automatically the image in the centering pattern.
FREEZE:
Freeze the displayed output (the blinking LED indicates the FREEZE is active).
INPUT SELECTION:
• Selection of the 3 input sources (short push).
• A long push (1 second) on the selected input button allows to active the BLACK
function. A black screen is displayed onto the output (the blinking LED indicates that this
function is active). A short push on an INPUT SELECTION button allows to inactive this
function.
CONTROL
 Allows to scroll thru the different menus (in Control mode).
EXIT MENU: Switches between Status and Control mode.
ENTER: Validates a selected item.
ON / OFF: AC power switch (O = OFF, I = ON).
