Chapter 5 : UPDATING THE DEVICE
The VIO1600/ULTRA VIO can be updated thanks a computer (PC) via its RS-232 communication port or via its LAN
communication port.
5-1. CONNECTIONS
c Connect the device to an AC power outlet.
d Switch ON the device (FRONT PANEL SWITCH = I).
e Connect the device to the computer used for the update via the desired communication port.
• For the RS232 communication port: Connect the RS232 connector of the device to the serial port of your computer
with a DB9 M/F straight cable.
• For the LAN communication port: Connect the RJ45 connector of the device to your network according to your
installation. Then with the front panel display menu configure the LAN communication port (CONTROL > LAN
setup) and activate the LAN communication port (CONTROL > RS232/LAN port > LAN).
5-2. UPDATE INSTRUCTIONS
c Switch ON the device.

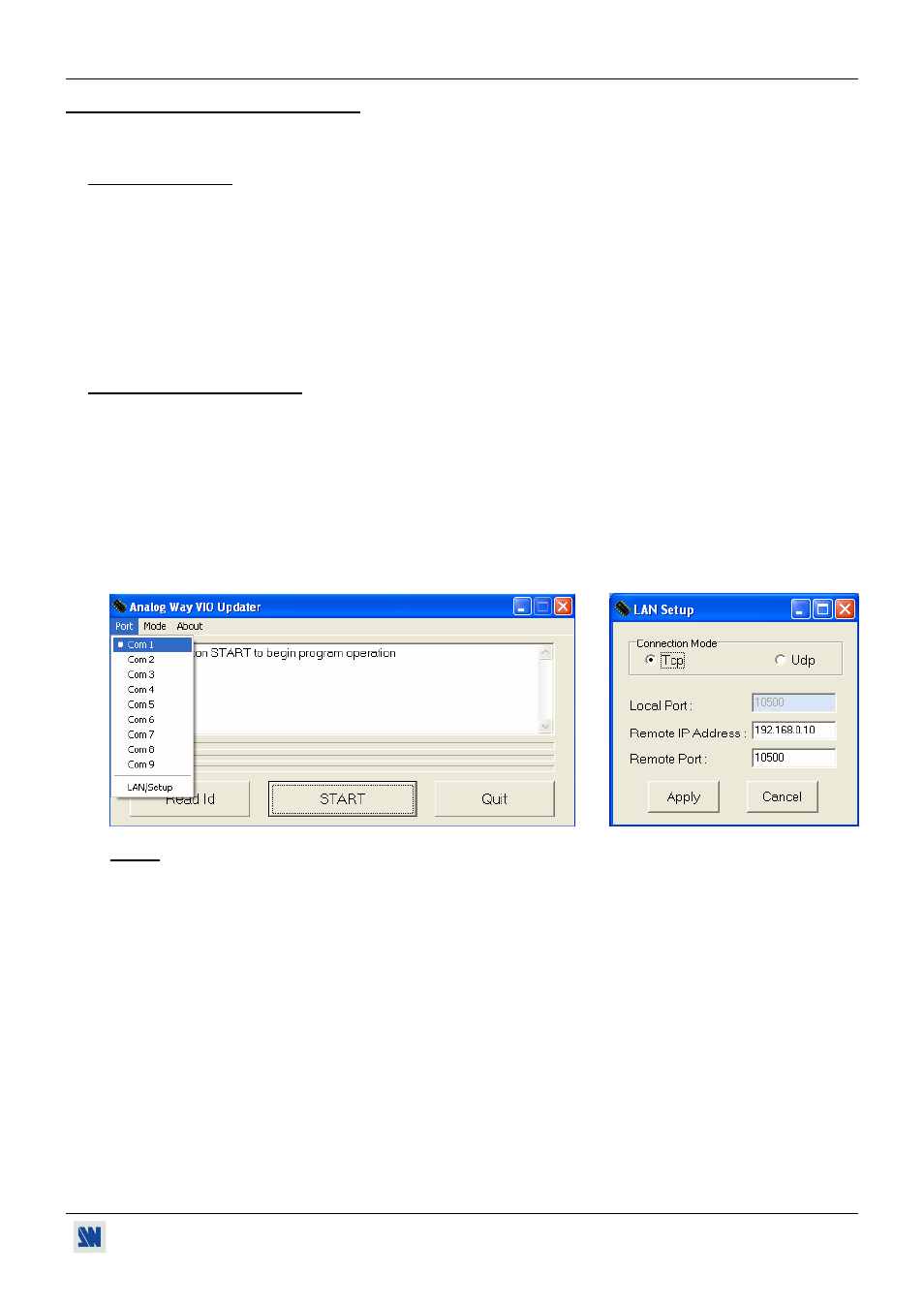

d Open the file: VIO-Update.exe (in Start > Program > ANALOGWAY > VIO).
e In the Port menu select the Com port connected to the device to update the device via its RS232 communication
port or click on LAN setup and select the communication parameters to update the device via the LAN
communication port.
f Click on START on the software. The update will start.
g When the software displays: Program operation completed, click on the Quit button to close the update software.
Your VIO1600/ULTRA VIO is now ready to work.
NOTE: The updater files are available on our web site: http://www.analogway.com
