Chapter 2 : STARTING (continued)

VIO1600 & ULTRA VIO

PAGE 14

2-5. OUTPUT DESCRIPTION

c CONNECTION:

You can connect to this output one of the following display device:
• A composite video device on the C.V BNC connector or on the COMPUTER/TV/HDTV HD15 connector.
• A S.VIDEO device on the Y/C (4-pin mini DIN) connector or on the Y & C BNC connector or on the HD15
connector.
• A Component video device on the R-Y, Y & B-Y BNC connectors or on the COMPUTER/TV/HDTV HD15
connector.
• A HDTV device on the R-Y, Y & B-Y BNC connectors or on the COMPUTER/TV/HDTV HD15 connectors.

• A RGBS device on the R, G, B, & H/Cs BNC connectors or on the COMPUTER/TV/HDTV HD15 connector.

• An analog data device on the R, G, B, H & V BNC connectors or on the COMPUTER/TV/HDTV HD15
connector.
• A digital data device on the DVI connector.


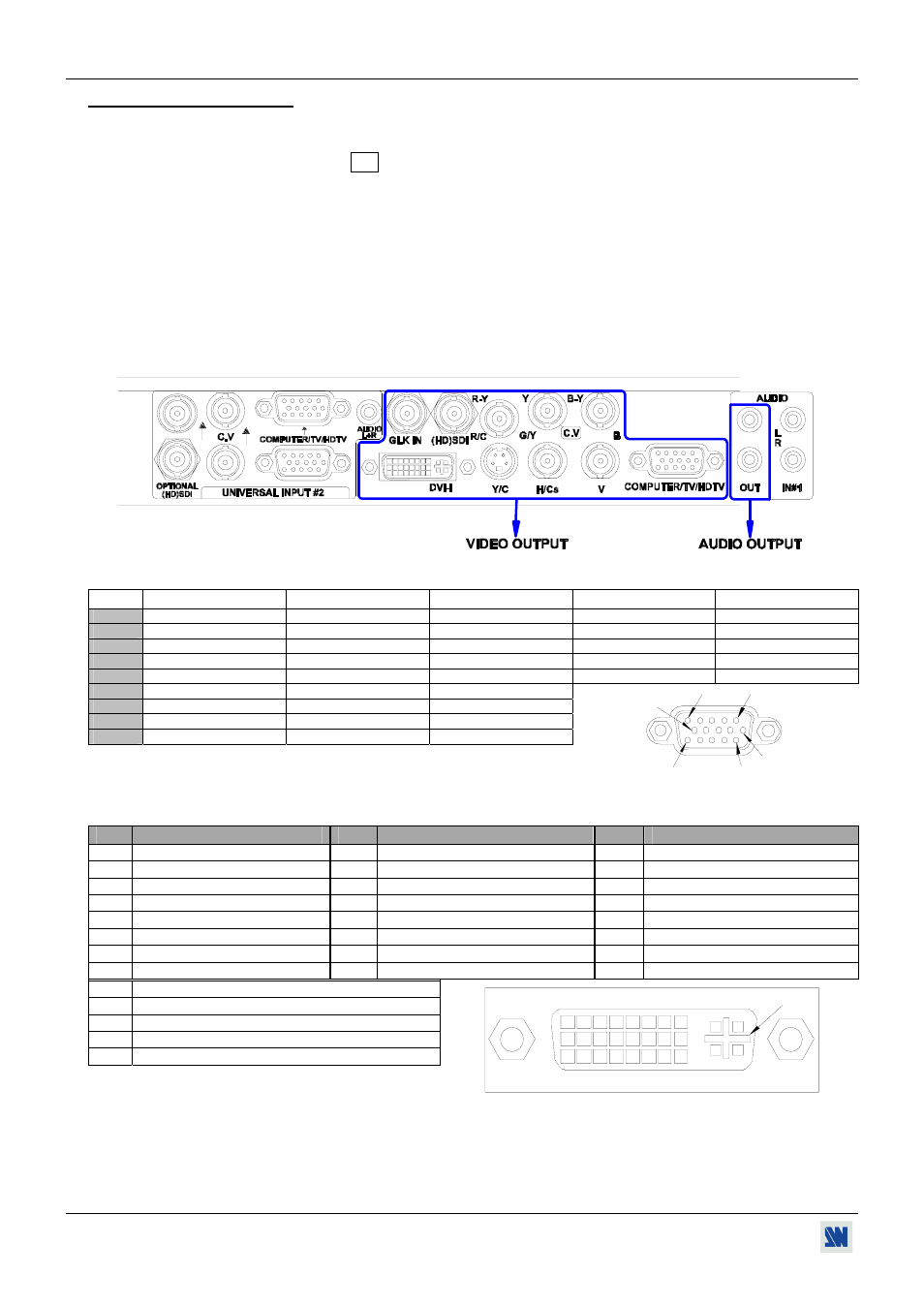

d OUTPUT CONNECTION DIAGRAM:

OUTPUTS


e HD15 PIN ASSIGNMENT:

SIGNAL COMPUTER (analog)

RGB/S VIDEO

YUV & HDTV (analog)

S.VIDEO (Y/C)

COMPOSITE VIDEO

PIN 1

RED.

RED.

Cr / Pr.

C (chrominance).

PIN 2

GREEN.

GREEN.

Y.

Y (luminance).

VIDEO (NTSC, PAL...)

PIN 3

BLUE.

BLUE.

Cb / Pb.

PIN 6

RED return.

RED return.

Cr / Pr return.

C return.

PIN 7

GREEN return.

GREEN return.

Y return.

Y return.

return.

PIN 8

BLUE return.

BLUE return.

Cb / Pb return.

PIN 10

GND.

GND.

PIN 13

H sync or C sync (S).

C sync (S).

PIN 14

V sync.

HD15 female connector of the device.

f DVI-I PIN ASSIGNMENT:

Pin Function

Pin Function

Pin

Function

1

TMDS Data 2-

9

TMDS Data 1-

17

TMDS Data 0-

2

TMDS Data 2+

10

TMDS Data 1+

18

TMDS Data 0+

3

TMDS Data 2 Shield

11

TMDS Data 1 Shield

19

TMDS Data 0 Shield

4

Not used.

12

Not used.

20

Not used.

5

Not used.

13

Not used.

21

Not used.

6

DDC Clock

14

+ 5V (Power)

22

TMDS Clock Shield

7

DDC Data

15

Ground for (+5V)

23

TMDS Clock+

8

Analog Vertical Sync.

16

Hot plug detect.

24

TMDS Clock-

C1

Analog Red video (or Cr / Pr or C)

C2

Analog Green Video (or Y or composite video)

C3

Analog Bleu Video (or Cb / Pb)

C4

Analog Horizontal Sync (or composite sync)

C5

Analog Common Ground Return

DDC = Display Data Channel.

TMDS = Transition Minimized Differential Signal.


g AUDIO:

You can also connect an AUDIO stereo device on the 2xRCA connectors.

1

5

10

15

11

6

8

1

9

16

24

17

C1 C2

C3 C4

C5
