VIO1600 & ULTRA VIO
PAGE 16
Chapter 4 : FRONT PANEL DISPLAY MENUS DESCRIPTION
4-1. INTRODUCTION
The front panel display menu presents 2 modes: the STATUS MODE and the CONTROL MODE.
• The STATUS MODE indicates the input and output status of the device.
• The CONTROL MODE allows selecting and adjusting the parameters of the device.
4-2. CONTROL BUTTONS
The front panel display is controlled by 2 buttons and 1 knob:
 knob: • In the CONTROL MODE, turn this knob to scroll thru the different menus.
EXIT / MENU button: • In the STATUS MODE, press this button to enter in the CONTROL MODE.
• In the CONTROL MODE, press this button to:
- return to the previous menu without safeguarding the selection.
- return to the STATUS MODE (press several times).
ENTER button: • From the STATUS MODE, press this button to enter in the CONTROL MODE.
• From the CONTROL MODE, press this button to confirm a selected item.

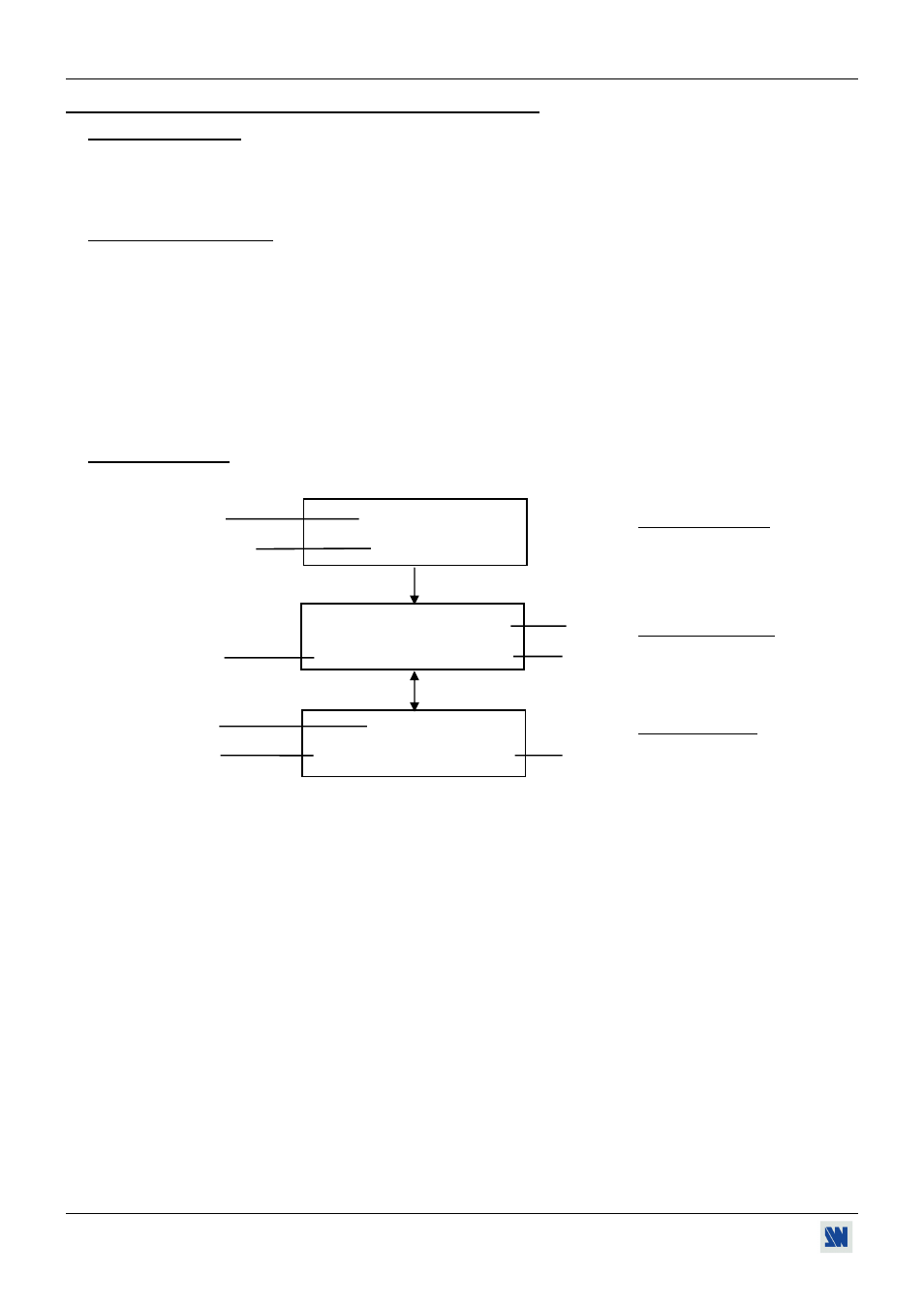

4-3. STATUS MODE
When switching ON, the front panel display shows the product's name and firmware versions as follows:
DEVICE NAME VIO1600 DEVICE STATUS
DEVICE VERSION Version _._
OUTPUT XGA d OUTPUT STATUS
c intern rate 60 Hz e
f INPUT # 1 INPUT STATUS
g SVGA 37.9 K / 60Hz h
c OUTPUT RATE MODE.
d OUTPUT FORMAT.
e OUTPUT FRAME RATE.
f SELECTED INPUT.
g INPUT FORMAT OR INPUT STANDARD.
h INPUT LINE / FRAME FREQUENCY.
