VIO1600 & ULTRA VIO Chapter 2 : STARTING (continued)
PAGE 13
2-4. INPUT #3 DESCRIPTION
c CONNECTION:
You can connect to this input one of the following source:
• A Composite Video source on the C.V RCA connector or on the COMPUTER/TV/HDTV HD15 (bottom)
connector.
• A S.VIDEO source on the Y/C 4-pin mini DIN (bottom) connector or on the Y & C RCA (bottom) connectors or
on the COMPUTER/TV/HDTV HD15 (bottom) connector.
• A Component video source on the Y, R-Y & B-Y RCA (bottom) connectors or on the COMPUTER/TV/HDTV
HD15 (bottom) connector.
• A HDTV source on the Y, R-Y & B-Y RCA (bottom) connectors or on the COMPUTER/TV/HDTV HD15
(bottom) connector.
NOTE: The VIO1600 & ULTRA VIO accept the 720p and 1080i HDTV formats.
• A RGBS source on the COMPUTER/TV/HDTV HD15 (bottom) connector.
• An analog computer source (RGBHV, RGsB or RGBS) on the COMPUTER/TV/HDTV HD15 (bottom)
connector.
d LOOP-THROUGH:
You can connect a control monitor to the loop-through connectors (top BNC, 4-pin mini DIN & HD15 connectors).

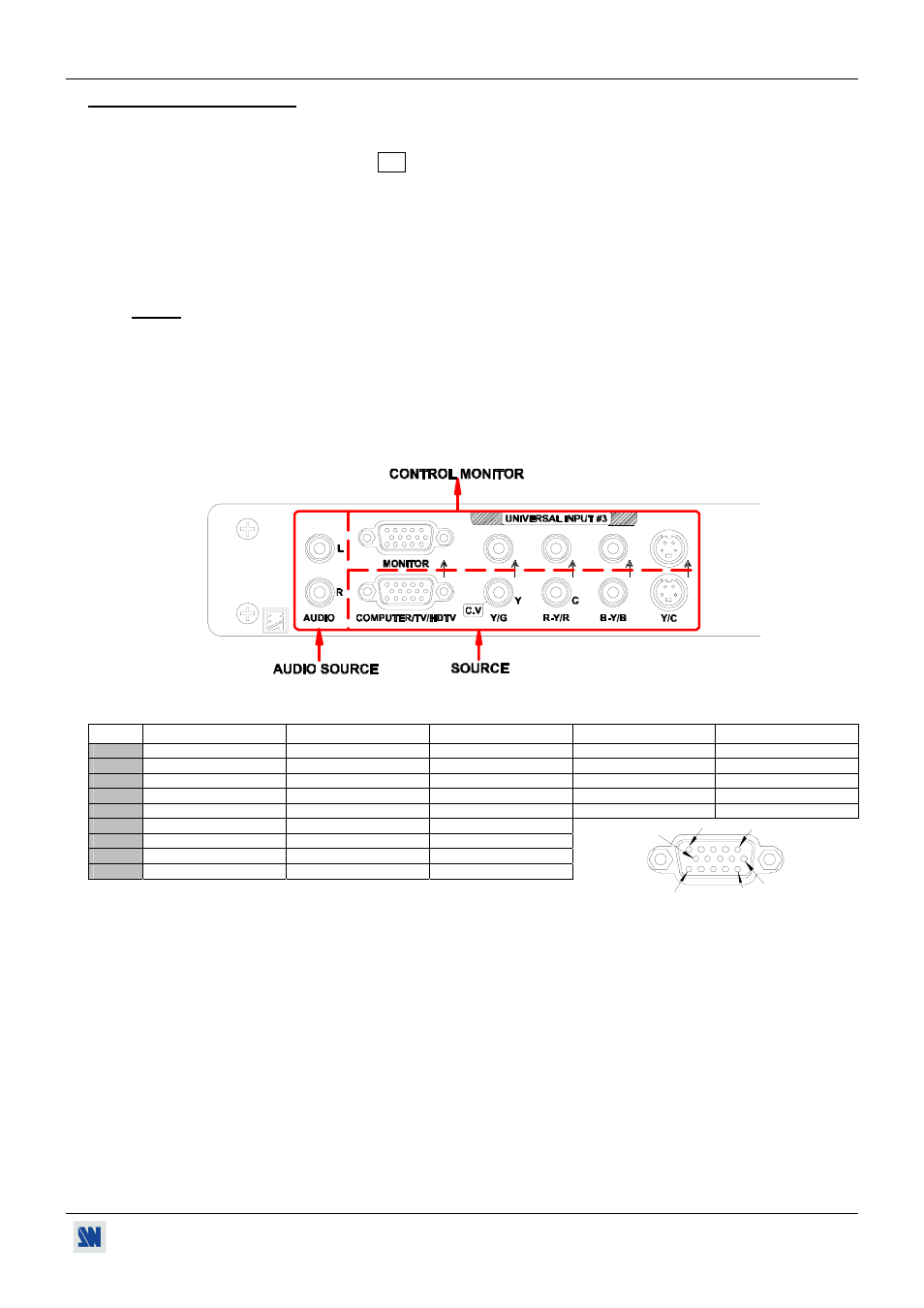

e INPUT #3 CONNECTION DIAGRAM:
ANALOG W
A
Y
f HD15 PIN ASSIGNMENT:
SIGNAL COMPUTER (analog) RGB/S VIDEO YUV & HDTV (analog) S.VIDEO (Y/C) COMPOSITE VIDEO
PIN 1 RED. RED. Cr / Pr. C (chrominance).
PIN 2 GREEN. GREEN. Y. Y (luminance). VIDEO (NTSC, PAL...)
PIN 3 BLUE. BLUE. Cb / Pb.
PIN 6 RED return. RED return. Cr / Pr return. C return.
PIN 7 GREEN return. GREEN return. Y return. Y return. return.
PIN 8 BLUE return. BLUE return. Cb / Pb return.
PIN 10 GND. GND.
PIN 13 H sync or C sync (S). C sync (S).
PIN 14 V sync.
HD15 female connector of the device.
g AUDIO SOURCE:
You can also connect an AUDIO stereo source on 2xRCA connectors.
5
6
1
15
10
11
