ANNEXE A
9
Command THC (X-Y)
Manuel d’instructions
a-1
1 Nomenclature pièces rail, lève-torche

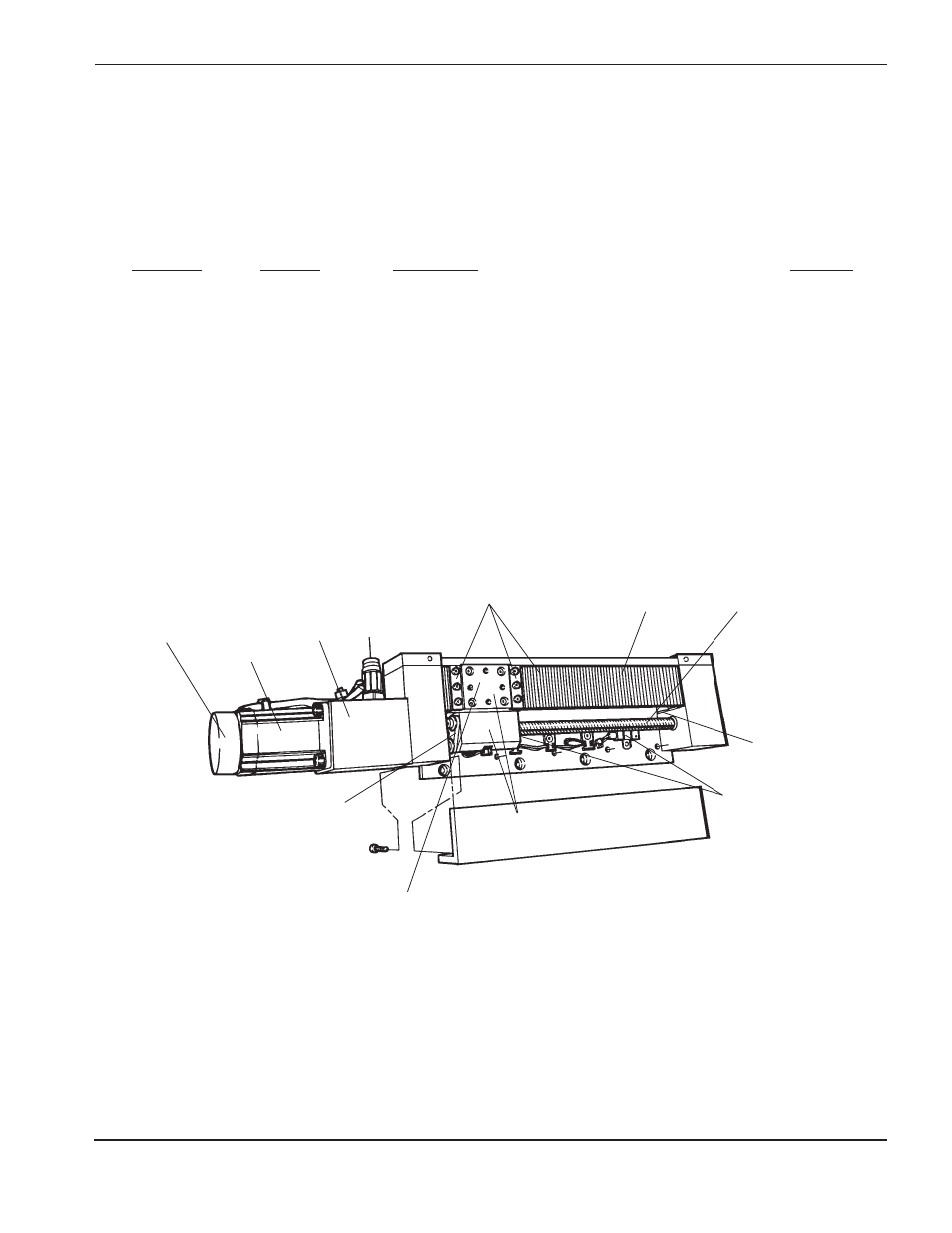

1 Ensemble rails lève-torche X-Y
1 Ensemble rails lève-torche X-Y
Index No.
Part No.
Description
Quantity
128050
X-Y lifter assembly
1
1
128726
Encoder replacement Kit
1
2
128727
Motor/Encoder replacement Kit
1
3
027550
Brake, power off
1
4
027552
Driving block
1
5
027551
Rail and block, bearing
1
6
129266
Assembly, leadscrew standard
1
7
128189
Band seal kit
1
8
128190
Band roller kit
4 per lifter
9
005195
Limit switch
2
6
5
(situé en dessous de
la bande d’étanchéité)
3
(intérieur)
8
1
2
7
Bloc de fixation de torche,
emplacement de fixation
(figure 6-5)
4
Interrupteur à limite de
seconde placé sous le
bloc d’entraînement
8
9
