NOMENCLATURE DES PIÉCES
9
Command THC (X-Y)
Manuel d’instructions
6-5
2 Ensemble rails lève-torche X-Y
Nº Index
Réf.
Description
Quantité
128606
X-Y lifter assembly
1
1
128726
Encoder replacement kit
1
2
128727
Motor/Encoder replacement kit
1
3
027550
Brake, power off
1
4
129699
Assembly, leadscrew standard
1
5
128607
Band seal kit
1
6
027903
Block, driving
1
7
128190
Band roller kit
4 per lifter
8
027904
Rail and block, bearing
4
9
005195
Limit switch
2

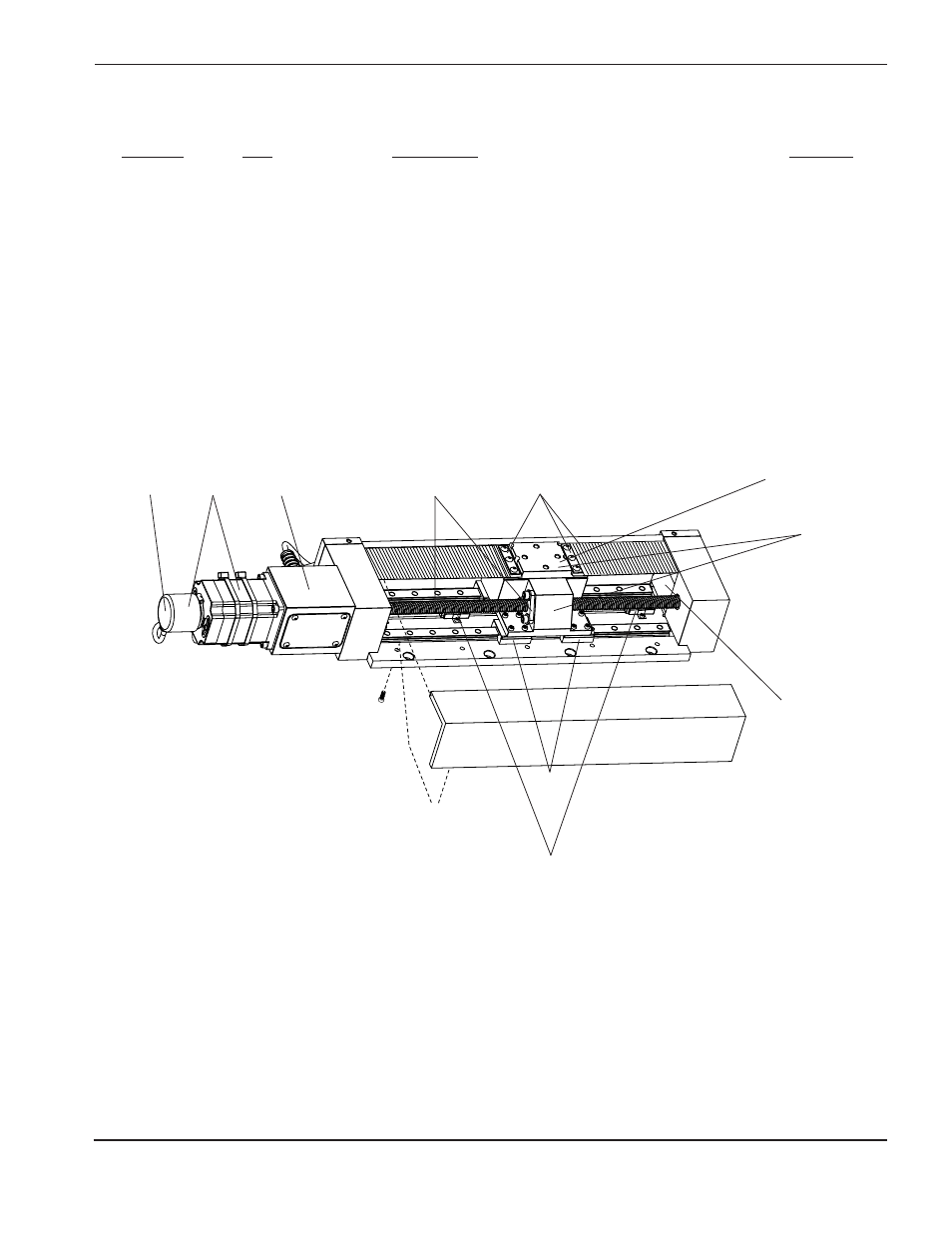

Figure 6-4
Ensemble du dispositif de levage X-Y
6
5
3 (intérieur)
1
2
7
Bloc de fixation de torche,
emplacement de fixation
(figure 6-5)
4
9
8
