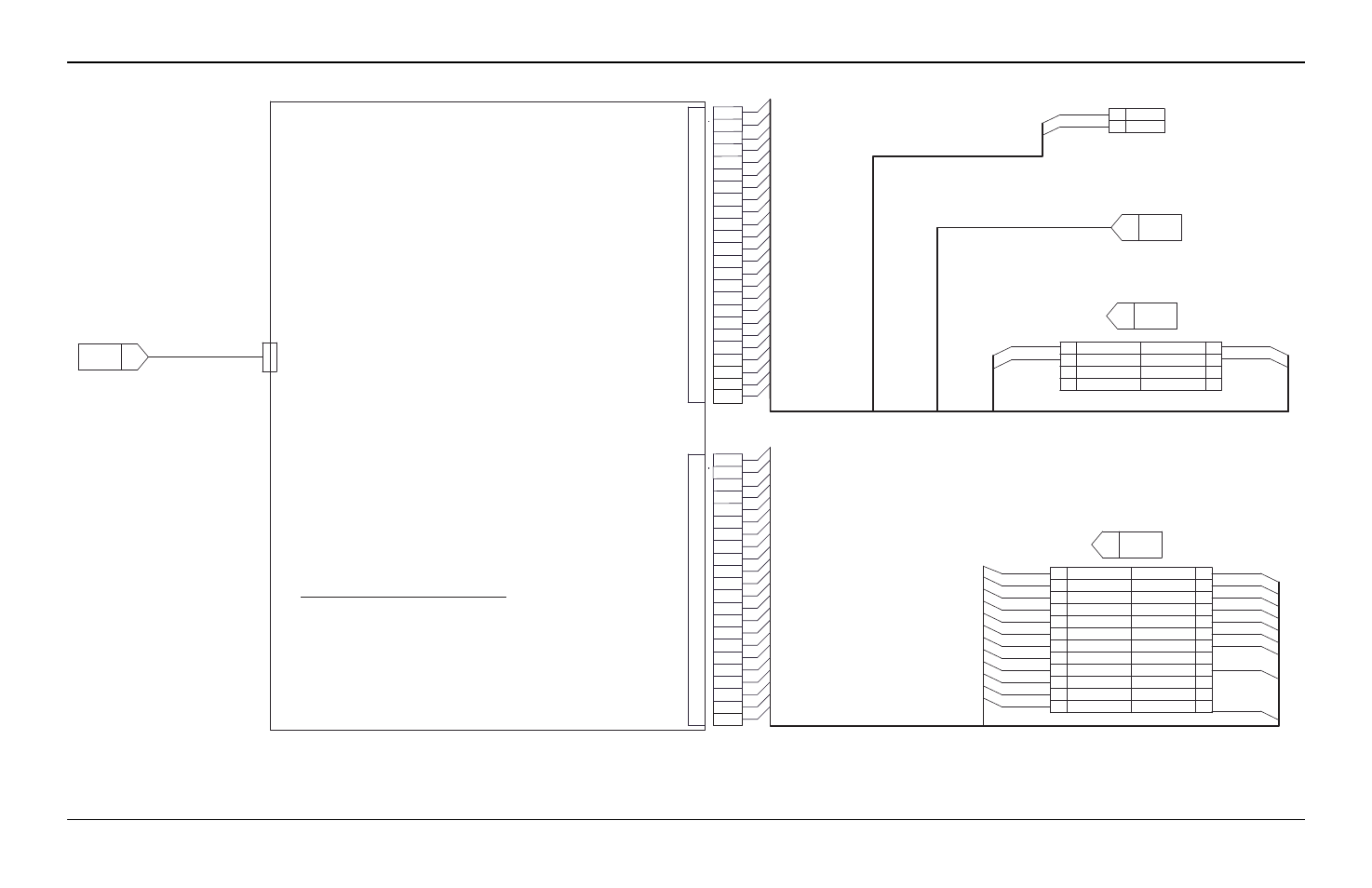

Schémas de câblage
Source de courant ATX
Source de courant ATX
SHEET
SHEET
SHEET
SHEET
ATX POWER SUPPLY
100-240VAC
POWER
INPUT
W
2-D4
3-B3 AD
AI
3-D1
229348
MOTHERBORD AUX 12V DC POWER
PCB1
MOTHERBORD POWER
PCB1
229403
ATX POWER SUPPLY
BLK
GND 2
1 +5V
RED
BLK
GND +12V 5
YEL
1
2
YEL
6 +12V GND
BLK
3 7 NC NC
4 8 NC NC
ORN
+3.3V GND 24
BLK
12
YEL
+12V NC 23 11
YEL
+12V NC 22 10
VIO
+5VSB +5V 21
RED
9
GRY
PGD NC 20 8
BLK
GND GND 19
BLK
7
RED
+5V GND 18
BLK
6
BLK
GND GND 17
BLK
5
RED
+5V +S PS-ON 16
GRN
4
BLK
GND GND 15
BLK
3
ORN
+3.3V -12V 14
BLU
2
1
ORN
13 +3.3V +S +3.3V
ORN
DC OUTPUT
HARNESS
POWER DISTRIBUTION PCB
PCB2
2-D4
W
(NOT USED)
+3.3V 1
+3.3V 2
+3.3V 3
PWR GD 4
PS_ON 5
GROUND 6
+5V 7
GROUND 8
GROUND 9
-12V 10
+12V 11
GROUND 12
+5VSB 13
3.3V 14
+3.3V +S 15
+5V 16
+5V 17
GROUND 18
GROUND 19
N/C 20
+12V 21
GROUND 22
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
ATX DC POWER & WIRE COLOR CODE
BLK DC COM
ORG +3.3V
RED +5V
VIO +5V STAND-BY
WHT -5V
YEL +12V
BLU -12V
BRN +24V
GRY PWR GOOD (PGD)
GRN PS_ON
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
GROUND 1
GROUND 2
GROUND 3
N/C 4
GROUND 5
GROUND 6
+12V 7
+12V 8
+12V 9
+12V 10
+12V 11
N/C 12
N/C 13
N/C 14
N/C 15
GROUND 16
N/C 17
N/C 18
N/C 19
+5V 20
N/C 21
N/C 22
N/C 23
+5V 24
229404
229404
