Chapter 2 : STARTING

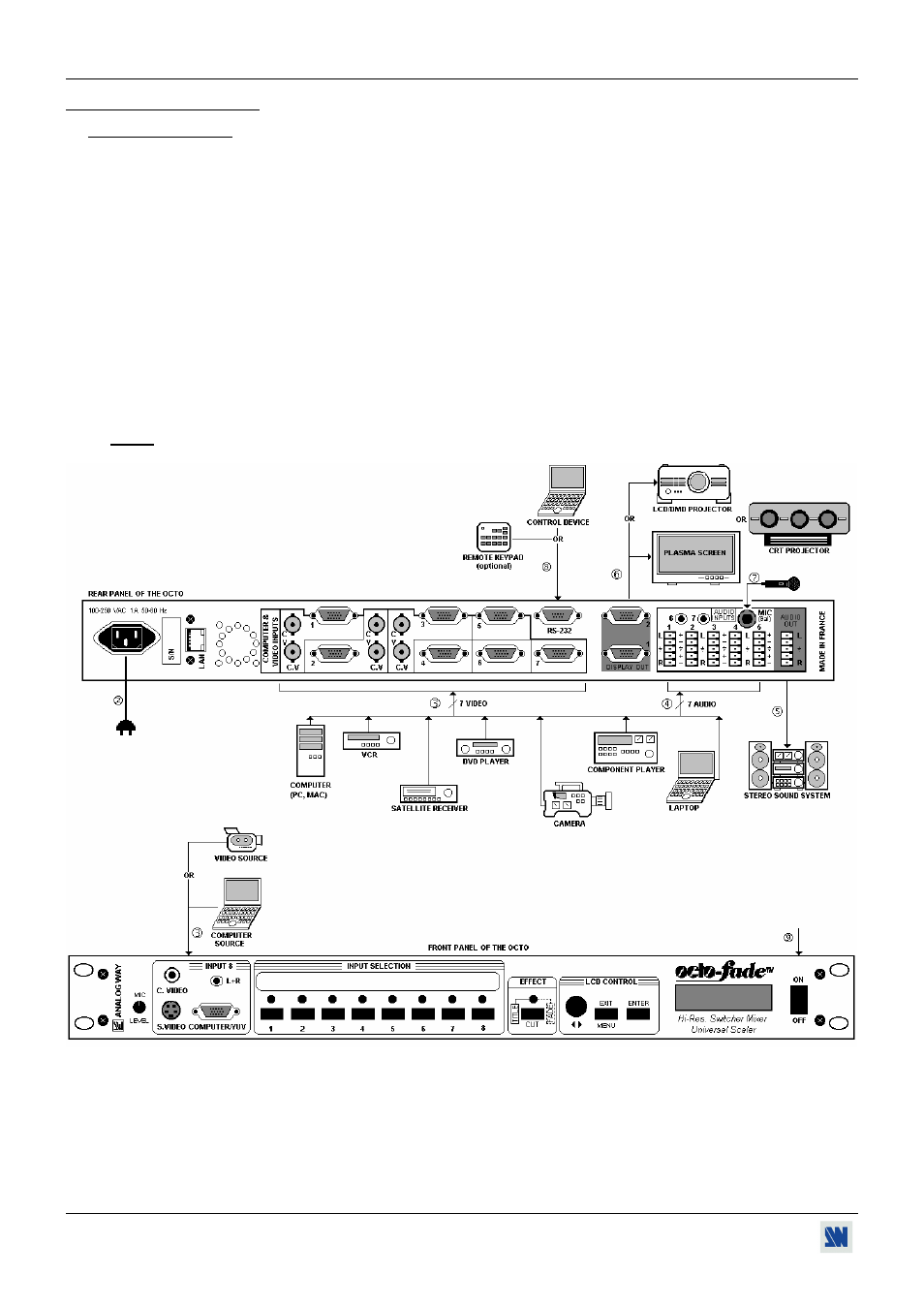

2-1. CONNECTIONS
c Turn OFF all of your equipment before connecting.
d Connect the AC Power supply cord to the OCTO and to an AC power outlet.
e Connect your Computer and video sources to the 8 inputs of the OCTO (7 inputs on the rear panel and one input on
the front panel). See next paragraphs for more information.
f Connect all of your audio sources to the corresponding AUDIO IN connectors.
g Connect the AUDIO OUT connector to your sound system.
h Connect the DISPLAY OUT connector to the DATA INPUT of your display device (data projector, plasma
screen...).
i Connect your microphone to the rear panel MIC (Bal) connector (jack 6.35 mm).
j If needed, connect your control device or the remote keypad to the RS-232 connector.
k Turn ON the OCTO (front panel switch). Then turn ON all yours input sources, and then your display device.
NOTE: For switching operation please see Chapter 3 : OPERATING MODE.
