OCTO range Chapter 2 : STARTING (continued)
PAGE 11
2-8. DISPLAY OUTPUT
The OCTO is equipped with 2 buffered data outputs on HD15 female connectors. The OCTO can provide an RGBHV (H
& V Separate Sync.), an RGB/S (Composite Sync.) or an RGsB (SOG) output signal.

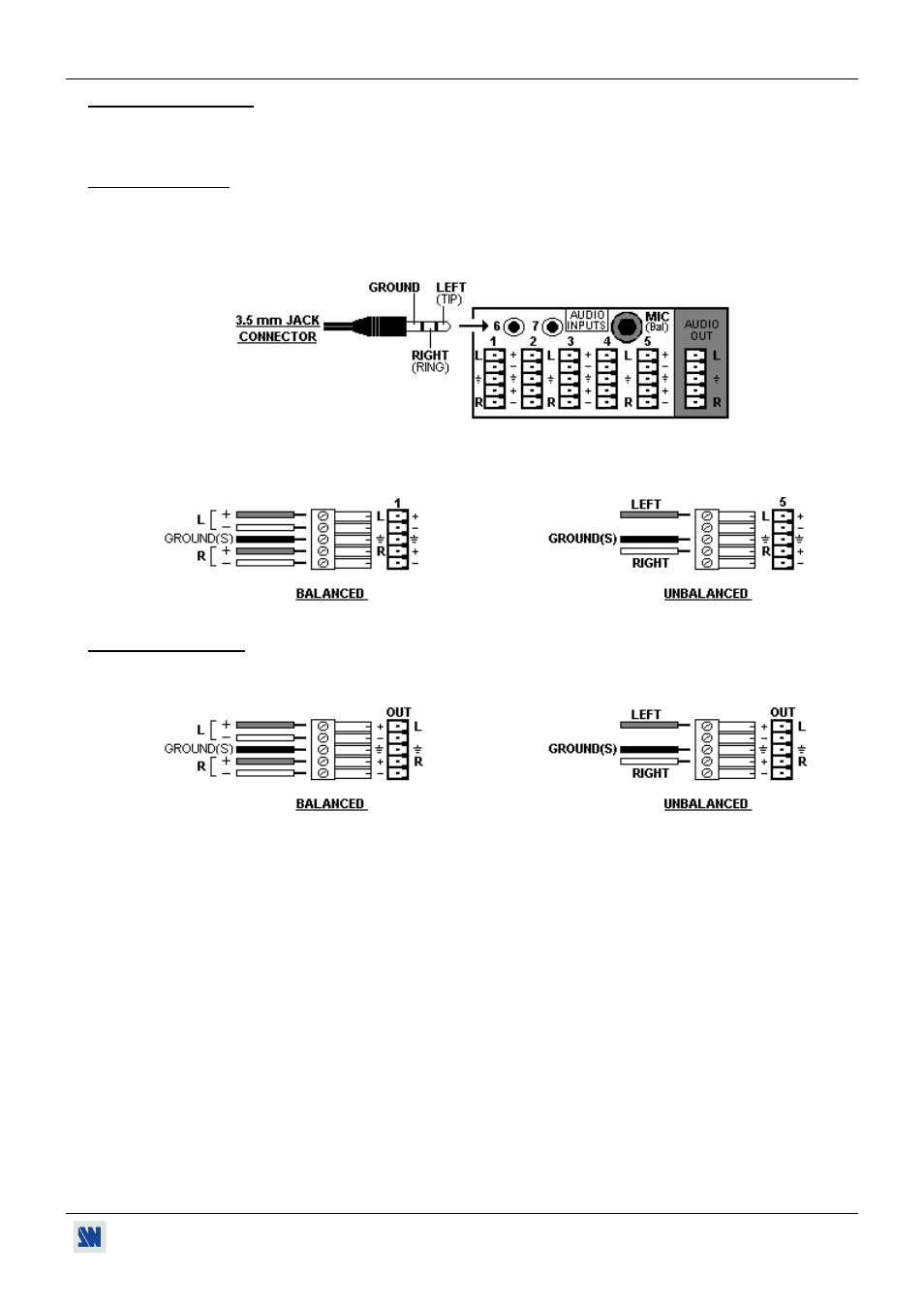

2-9. AUDIO INPUTS
Each audio input has a 3.5 mm jack female connector or a 5-pin MCO male connector.
• 3.5 mm jack female connector
The INPUTS # 6, 7, and 8 are equipped with this audio connector. This connector allows connecting only
UNBALANCED audio source. Connect your UNBALANCED audio sources as follow:
• 5-pin MCO male connector
The INPUTS # 1 to 5 are equipped with this connector. This connector allows connecting BALANCED or
UNBALANCED audio inputs. Connect your audio sources as follow:
2-10. AUDIO OUTPUT
The audio output is equipped with a 5-pin MCO male connector. This connector allows connecting BALANCED or
UNBALANCED audio systems.
