OCTO range Chapter 1 : INTRODUCTION (continued)
PAGE 7

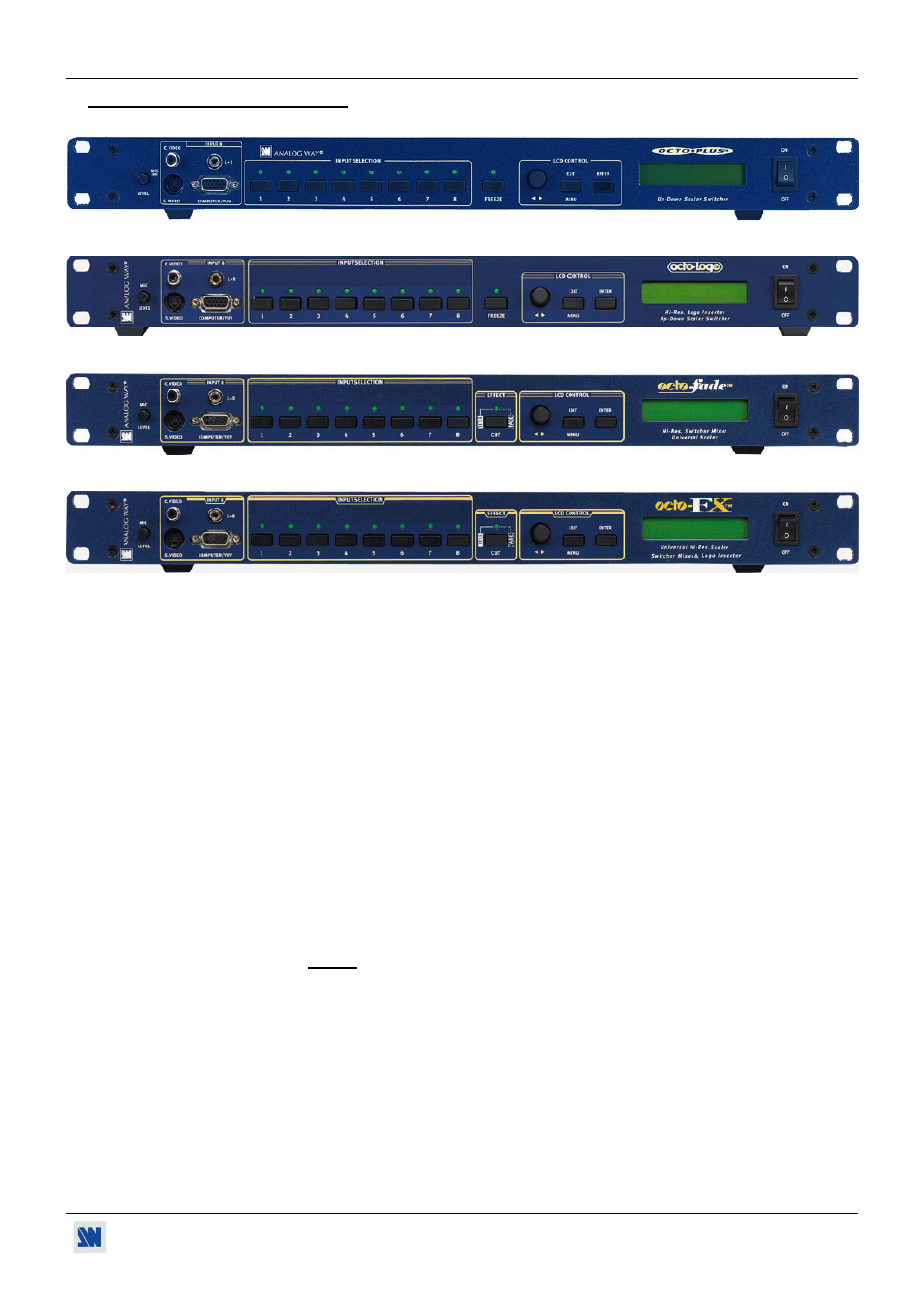

1-6. FRONT PANELS DESCRIPTION
• FRONT PANEL OF THE OCTO-PLUS ™
• FRONT PANEL OF THE OCTO-LOGO ™
• FRONT PANEL OF THE OCTO-FADE ™
• FRONT PANEL OF THE OCTO-FX ™
MIC LEVEL: Microphone audio level adjustment.
INPUT 8: Universal (computer and video) input # 8.
C.VIDEO: Composite Video input (RCA female connector).
S.VIDEO: S.VIDEO (Y/C) input (4-pin mini DIN female connector).
L+R: Audio stereo unbalanced input (jack 3.5 mm female connector).
COMPUTER/YUV: Computer (PC, MAC, WORKSTATION), YUV (component) and HDTV input (HD15
female connector).
INPUT SELECTION: • Selection of the 8 input sources (short push).
• A long push (1 second) on the selected input button allows to active the BLACK
function. A black screen is displayed onto the output (the blinking LED indicates that this
function is active). A short push on an INPUT SELECTION button allows to inactive this
function.
FREEZE: Allows to freeze the displayed output (the blinking LED indicates the FREEZE is active).
(OCP802 & OLG802)
EFFECT: Allows to select a type of effect between: CUT, FADE and TITLE.
(OFD802 & OFX802)
• LED OFF = CUT effect selected (SEAMLESS transition).
• LED blinking = FADE effect selected.
• LED ON = TITLE effect selected.
NOTE: These effects are active between the reference computer input and the other
inputs. In other cases the transition operates with a FADE COLOR.
LCD CONTROL
Allows to scroll thru the different menus (in Control mode) or to adjust the master volume
(in Status mode).
EXIT MENU: Switches between Status and Control mode.
ENTER: Validates a selected item.
ON / OFF: AC power switch (O = OFF, I = ON).
