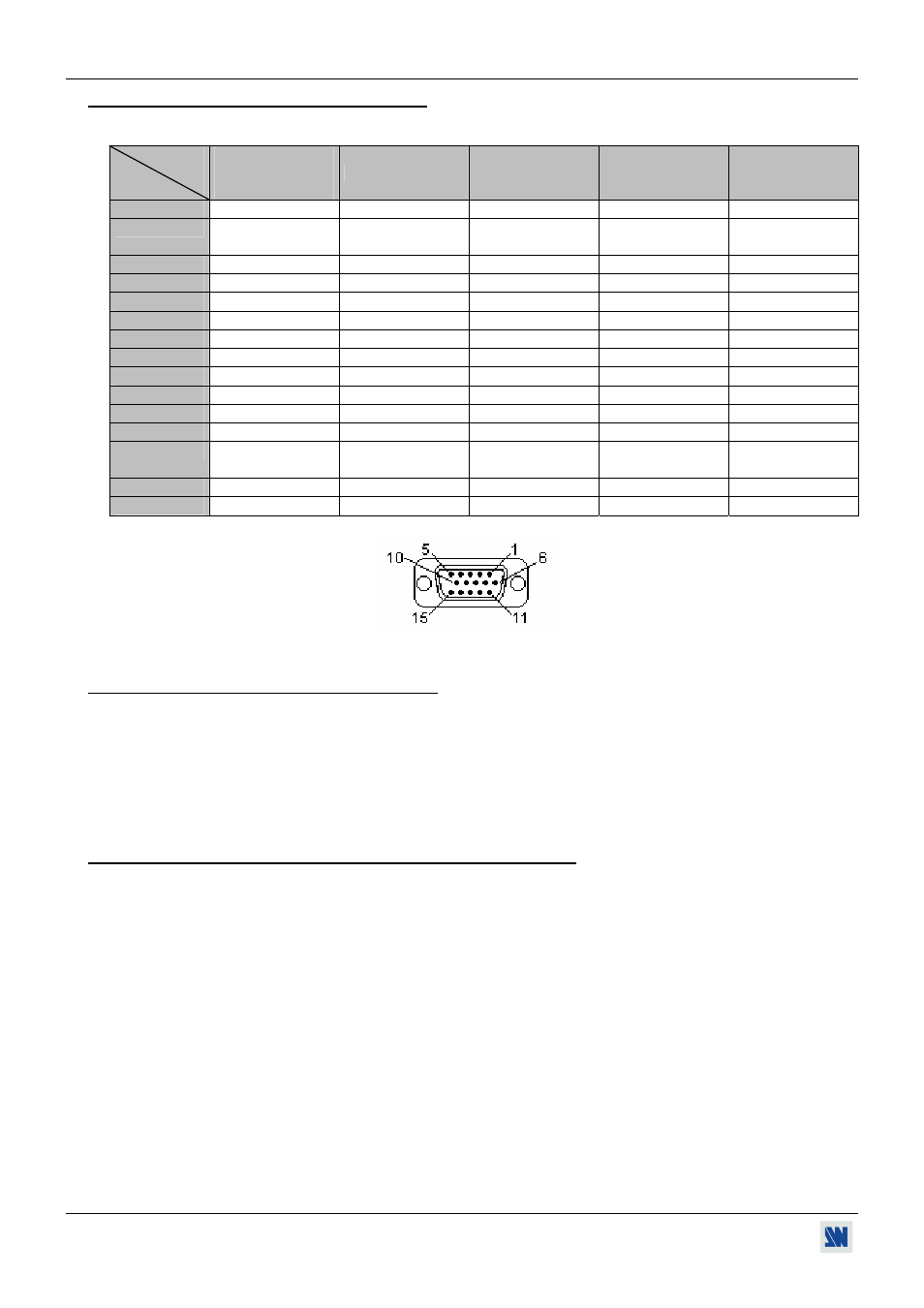

11-1. COMPUTER & VIDEO INPUTS (continued)
• HD15 PIN ASSIGNMENT
SIGNAL
PIN #
COMPUTER
(RGBHV,RGB/S,
RGsB)
RGB/S VIDEO
COMPONENT
(YUV)
S.VIDEO (Y/C)
COMPOSITE
VIDEO
PIN 1 RED. RED. U or Pr (R-Y). C (chrominance).
PIN 2 GREEN. GREEN. Y. Y (luminance). Composite video
(NTSC, PAL...)
PIN 3 BLUE. BLUE. V or Pb (B-Y).
PIN 4
PIN 5
PIN 6 RED return. RED return. U return. C return.
PIN 7 GREEN return. GREEN return. Y return. Y return. return.
PIN 8 BLUE return. BLUE return. V return.
PIN 9
PIN 10 GND. GND.
PIN 11
PIN 12
PIN 13 H sync
or C sync (S). C sync (S).
PIN 14 V sync.
PIN 15
11-2. DISPLAY OUTPUT (HD15 female connectors)
Levels: R, G, B = 0.7 Vp/p.
Sync.: Separate H & V = TTL.
Composite = TTL.
Impedance: R, G, B = 75 Ohms.
Format: One of the formats available in the LCD menu.
11-3. AUDIO INPUTS (5-pin MCO male connector or jack 3.5 connector)
• INPUTS #1 to # 5 (on 5-pin MCO male connector) = Balanced and unbalanced* stereo inputs.
Vi = + 0 dBu (sensibility), + 4 dBu (max).
Zi = 22 kΩ unbalanced.
Zi = 44 kΩ balanced.
Gain = + 0 db / - ∞ adjustable.
• INPUTS # 6 to # 8 (on jack 3.5 female connector) = Unbalanced stereo inputs.
Vi = + 0 dBu (sensibility), + 4 dBu (max).
Zi = 22 kΩ unbalanced.
Gain = + 6 / - 12 dB adjustable.
* Improved "unbalanced" by special "Pseudo-Differential" circuitry.
HD15 female connector of the OCTO.
